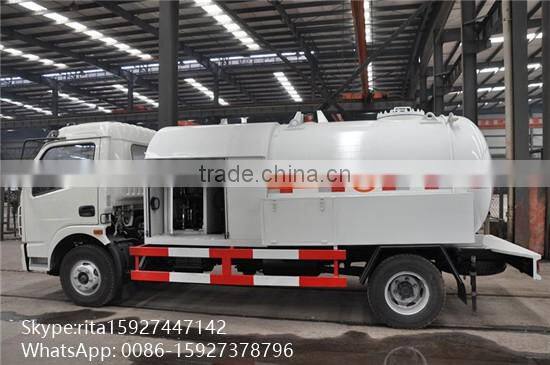

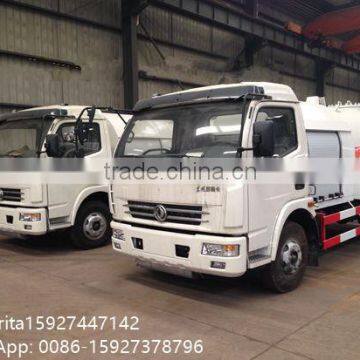

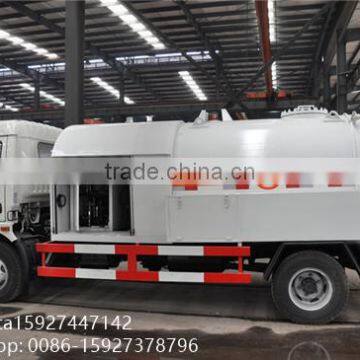

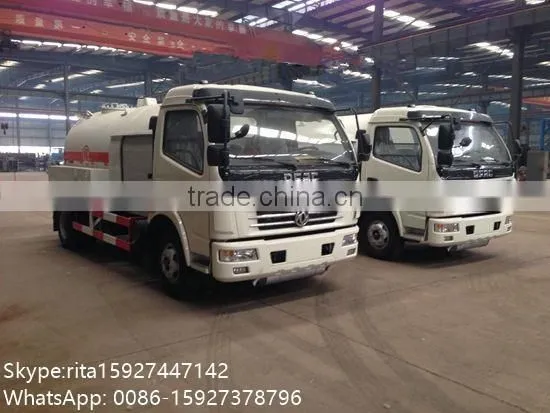

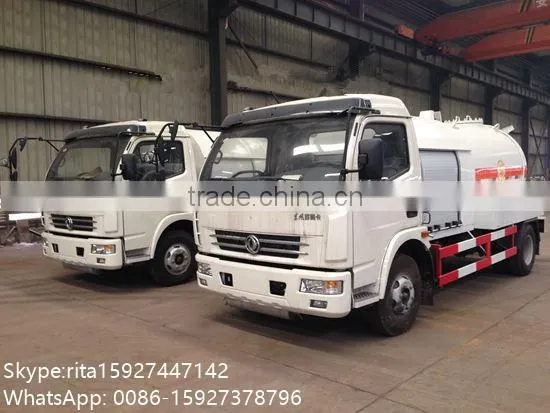

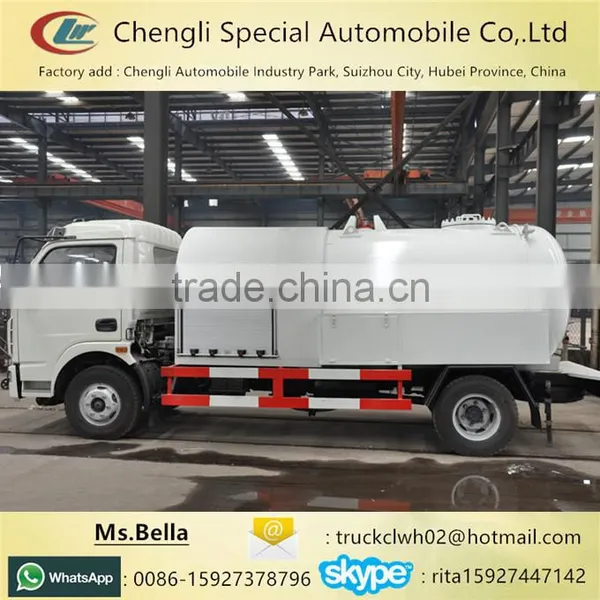

Factory Supply LPG Filling Truck 5m3 LPG Bowser Truck

US$ 22,800 - 36,800 MOQ: 1 Unit

Key Specifications

Condition:

New

Storage:

LPG

Drive Wheel:

4x2

Chengli Special Automobile Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

ANY PORT

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Storage LPG

Drive Wheel 4x2

Horsepower Other, < 150hp

Transmission Type Manual

Fuel Type Diesel

Tank Volume 5001 - 10000L

Engine Capacity 3856ml

Dimensions (L x W x H) (mm) 6295x2180x2510 mm

Brand Name CLW

Place of Origin Hubei, China

Model Number CLW5105 LPG bowser truck

Gross Vehicle Weight 6950

Factory Supply LPG Filling Truck 5m3 LPG Bowser Truck.

Product Description

CLW production 5m3 5000L 5000 liter LPG bowser truck

Tank vehicle	ITEM				DATA	Tank	ITEM	DATA
	Chassis				EQ1090KJ		Design Pressure	1.77Mpa
	Engine Out put				120HP		Design temperature	50°
	Kerbweight				Kg		Capacity	5m³
	Payload(Product weight)				2100Kg		Filling medium	LPG(Propane)
	Gross Vehicles Weight(GVW)				6950Kg		Tank material	Q345R
	Pressure of leak test				1.77MPa		Corrosion allowance	1.00 mm
	External Dimensions (LengthWidthHeight)				62952180 2510		Heat treatment method	PWHT
							Tank mass	1650 kg
	Full load		front axle load		2400kg		Hydraulic test pressure	2.66Mpa
			Rear axle load		4200kg		External Dimensions (In-DiameterThicknesslength)	150010(8)3600
	Max.vehicle roll angle				35°
	Design the limited velocity			Straight road	90 km/h		Vessel’s sort	The third kind
				Turning	25 km/h		Service Years	1ten years

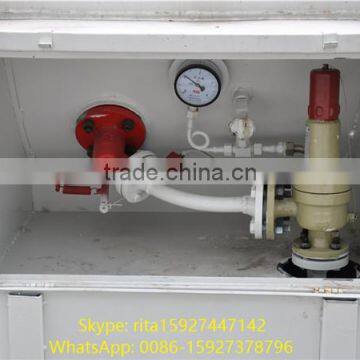

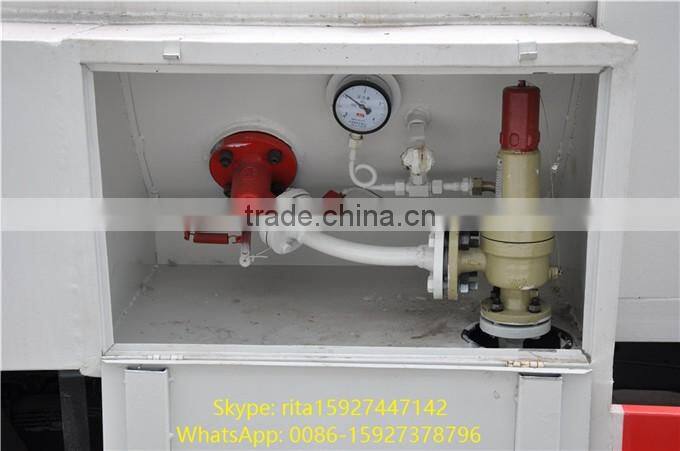

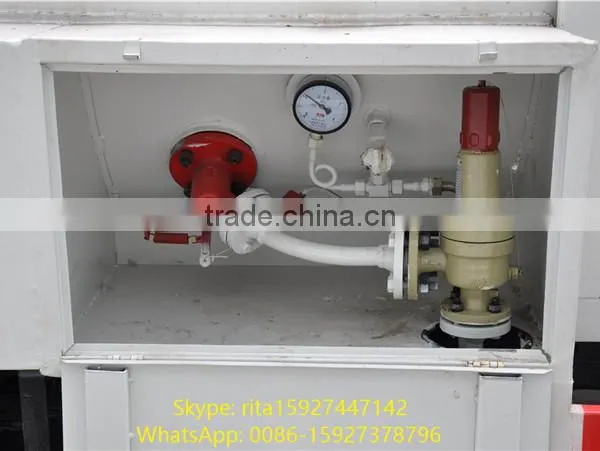

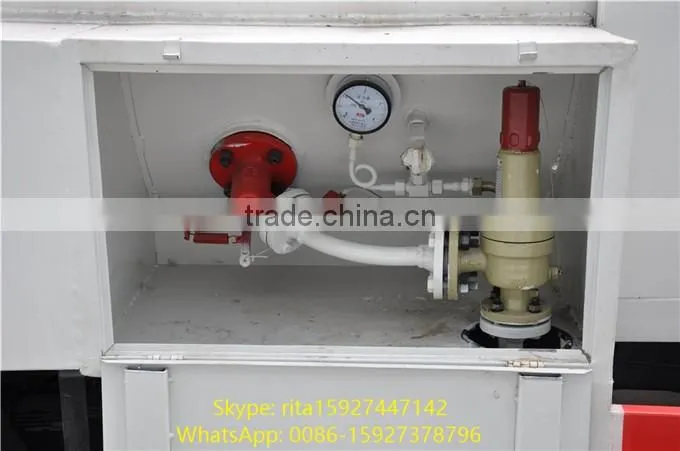

Urgency Switch Valve	Tape				QGJ43F-2.5	Safety valve	Tape	A412F-2.5
	Nominal Pressure				PN2.5Mpa		Model	Inner full liff
	Nominal Diameter	Gas Phase			DN25mm		Nominal Pressure	PN2.5MPa
		Liquid Phase			DN50mm		Nominal Diameter	DN80mm
	Operation Way				Manual		Opening Pressure	1.86-1.95MPa
	Closing Time				10sec		Closing Pressure	>1.49MPa
	Melting switch temperature				70±5°		Complete Opening Pressure	<2.12MPa

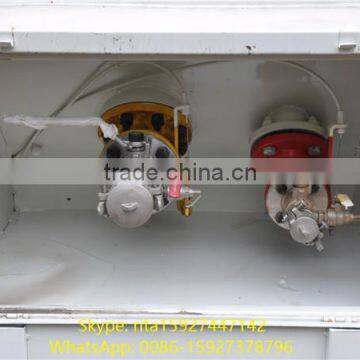

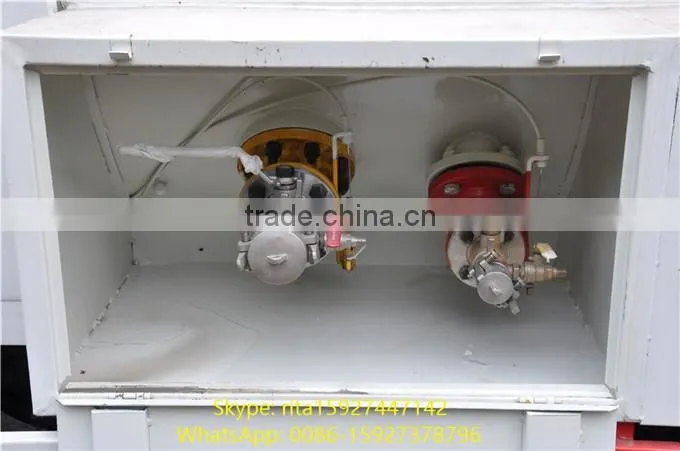

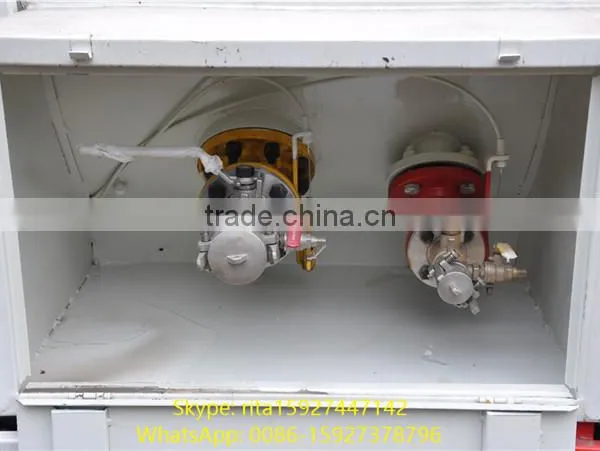

Indicator for liquid level	Tape				UQZ-2.5-1500	Load and unload system	Valve type	Q41F-2.5P/CQA41F-2.5p
	Model				float trap		Nominal Pressure	PN2.5MPa
	Nominal Pressure				PN2.5MPa		Tie-in model	Quick tie-in
	Surveying range				0-1500		Gas phase pipe	DN25mm
	Precision				2.5 level Grade		Liquid phase pipe	DN59mm
