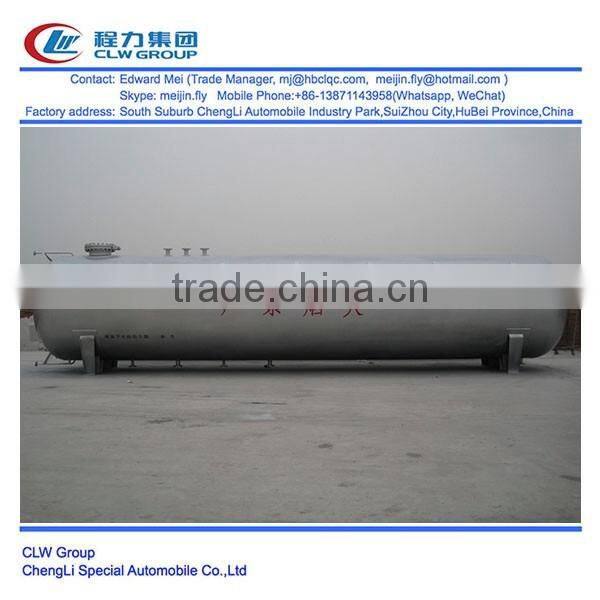

50000 liter 50 m3 25 ton lpg gas filling plant
CLW Group_ChengLi Special Autmobile Co.,Ltd , which is a big and famous special function truck manufacturer in China, we also proudce petroleum industry storage tanks for liquid pressure gas ( LPG), such as the propane gas.Isobutane,Propylene,DME, and so on.
Currently we proudce the LPG storage tank from 5000 liter to 120000 liter, LPG transporting trailer 30000 liter to 60000 liter, LPG transporting truck 5000 liter to 35000 liter, LPG mobile filling truck 5000 liter to 35000 liter.
With the manufacturer China GB150, ASME. Welcome for your inquiry.
50000 liter 50 m3 25 ton lpg gas filling plant
| Item | Unit | Specification | |||||||
| Model | CLW50-14-14 | ||||||||
| Loading object | Propane Gas | ||||||||
| Material | Q345R | ||||||||
| Designed loading Parameter | Option | Q345R, 16MnIII, Q370R | |||||||
| Kg/m3 | 420~ 500 | ||||||||
| Dimension | mm | 9912*2628*3218 | |||||||
| Net Weight | Kg | 10910 | |||||||
| Designed Pressure | Mpa | 1.77 | |||||||
| Max Working Pressure | Mpa | <=1.6 | |||||||
| Designed Temperature | C | -20~50 | |||||||
| Volume | m3 | 50 | |||||||
| Body thick | mm | 14 | |||||||
| Cover thick | mm | 14 | |||||||
| Man Hole | mm | 450 | |||||||
| Top Safety Valve Port | mm | 80 | |||||||
| Life Year | Year | 10 | |||||||
| Input and output | |||||||||
| Liquid input Port | mm | DN50 ( 2 Inch) | 2.5Mpa | ||||||
| Liquid Output Port | mm | DN80 (3 Inch) | 2.5Mpa | ||||||
| Bottom Air gas input Port x2 | mm | DN50 (2 Inch) | 2.5Mpa | ||||||
| Waste Liquid Output Port | mm | DN80 (3 Inch) | 2.5Mpa | ||||||
| Top Gas Let Out Port | mm | DN80 (3 Inch) | 2.5Mpa | ||||||
| Liquid Level Indicator Port | mm | DN20 | 2.5Mpa | ||||||
| Essential Device for option | |||||||||
| Safety Valve, Temperature Gague, Pressure Gauge | |||||||||
| Option~ flange | |||||||||
| Production Standard | |||||||||
| China GB 150 Pressure Vessel Manufacturer Standard, Or ASME Standard | |||||||||
| Designed Valid Year, at least 10 year | |||||||||
50000 liter 50 m3 25 ton lpg gas filling plant
50000 liter 50 m3 25 ton lpg gas filling plant
Our company is a big and famous special function truck manufacturer in China, We produce many kind of trucks, water tank truck
oil tank truck, oil tank trailer.
Vaccum suction truck.
Garbage Truck
high platform working truck.
Dump truck.
concrete mixer truck, concrete pump truck.
Refrigerator truck.
Wrecker truck.
Road sweeper truck.
Chemical liquid transporting truck.
All kind of semi trailer.
LPG gas tank, LPG truck and trailer.
Fire fighting truck.
Welcome to your inquiry.
CLW Group--- ChengLi Special Automobile Co.,Ltd
1. What do we do ?
We are an integreted special truck manufacturer and sale. all trucks are new customized according to customer requirement.
2.Is there any branch Company in oversea ?
Currently there is no oversea branch.
3.What's your warranty of your product ?
One year warranty time or 10000 Km driven.
4. How to buy a truck from your company ?
Welcome to your inquiry about our trucks, firstly please check with the sales manager for your demand in detail, then sales manager will make an offer to you according to your demand, If offer is acceptable, sales manager will send you proforma Invoice which will show our company account( we never provide personal account for customer), Please make the Transfer to our company account, then we will arrange production when confirming.
5. What about the payment method ?
We accept T/T, and L/C.
T/T 30 % in advance, we could arrange production, then left 70% should be done before truck loading on ship.
