Lpg Transport Truck Tanks

Lpg Transport Truck Tanks thumbnail-1
Lpg Transport Truck Tanks thumbnail-2
Lpg Transport Truck Tanks thumbnail-3
Lpg Transport Truck Tanks thumbnail-4
Lpg Transport Truck Tanks thumbnail-5
Lpg Transport Truck Tanks photo-1

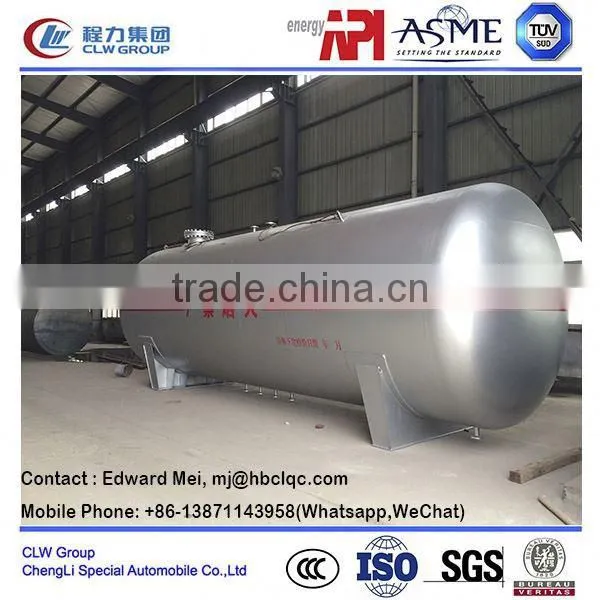

Lpg Transport Truck Tanks photo-2

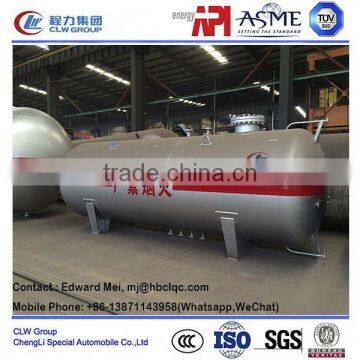

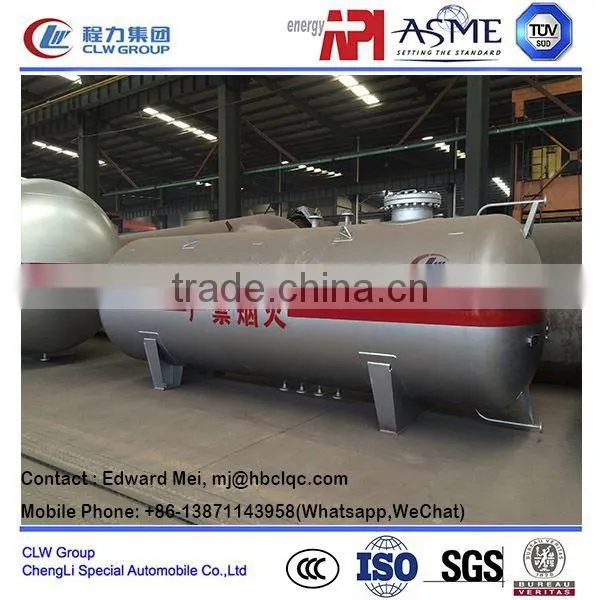

Lpg Transport Truck Tanks photo-3

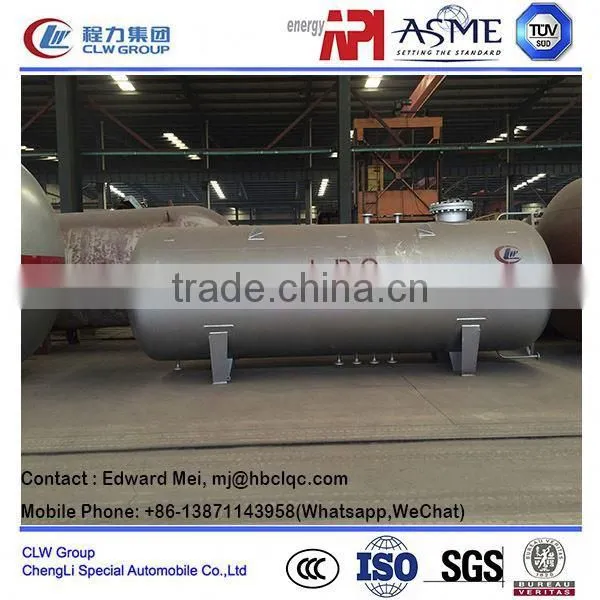

Lpg Transport Truck Tanks photo-4

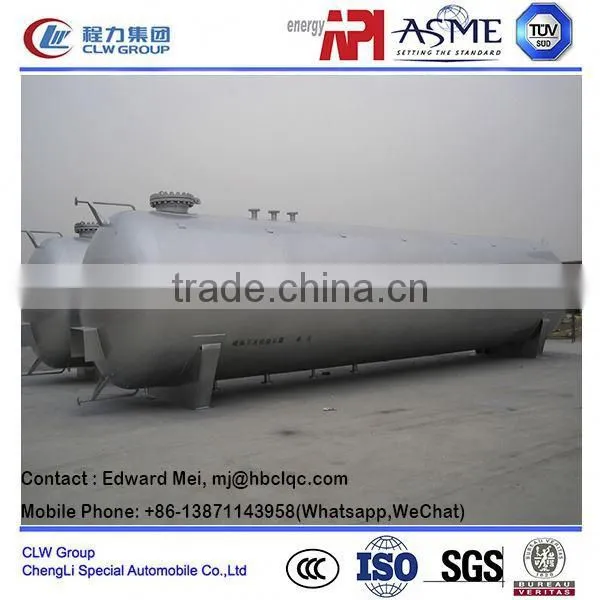

Lpg Transport Truck Tanks photo-5
US$ 10,000 - 40,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Hubei, China
Brand Name:
CLW
Contact Supplier Request Quote Chat Now
Chengli Special Automobile Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
any port of China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Hubei, China
Brand Name CLW
Model Number CLW
Dimension(L*W*H) 13020*3740*3240
Capacity 5~120 m3
Weight 22901
After-sales Service Provided Engineers available to service machinery overseas

Tittle

LPG,liquid pressure gas,which is made from oil.The main gas is propane,Isobutane.

Currently our company produce the lpg tank, lpg tank trailer,lpg tank truck to loading and transporting.
The LPG tank volume from 5~120 m3 for above ground, 5~100 m3 for underground.
The LPG tank trailer volume from 30~60 m3 with two axles or three axles.
The LPG tank truck with the volume from 5~35 m3.

Product Description

Tittle

lpg transport truck tanks

Main specification

Tittle

Items
Unit
Parameter
Product

LPG Tank
Model

GLG2400-50
GLG3000-80
GLG3200-100
Loading subject

propane
propane
propane
Whole Dimension
mm
11657*2428*3028
11866*3036*3610
13020*3740*3240
Tank Dimension
mm
DN2400*14 thick*11657 length
DN3000*18 thick*11866length
DN3200*20 thick*13020 length
Tank Volume
m 3
50 cubic meter
80 cubic meter
100 cubic meter
Curb Weight
kg
10706
17900
22901
Designed pressure
Mpa
1.77
1.77
1.77
Working pressure
Mpa

<= 1.6
<= 1.6
Working temperature
C
<= 50
<= 50
<= 50
Water testing pressure
Mpa
2.22
2.22
2.22
Air testing pressure
Mpa
1.77
1.77
1.77
Tank materia

Q345R , 16 Mnlll, Q370R
Manufacturer Standard

China GB 150 pressure vessel manufacturer standard.
Remark
Equipment with Safety Valve, Liquid gage, Pressure gage, Temperature gage, Urgent cut off valve,

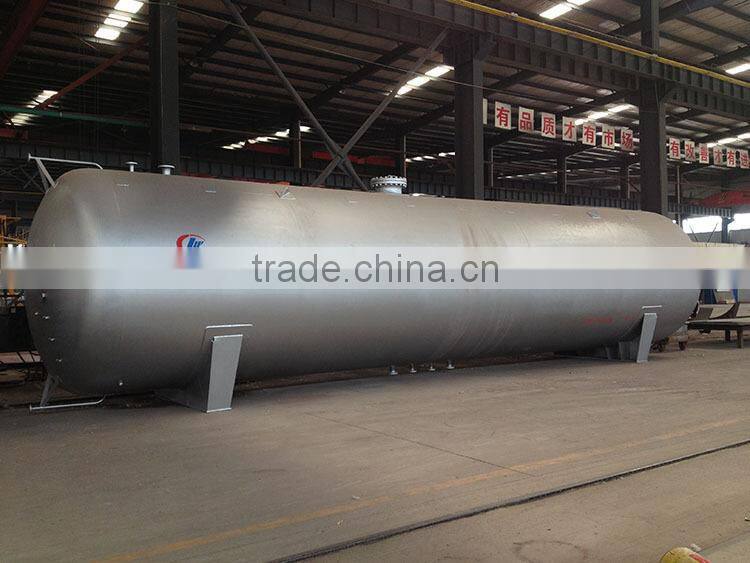

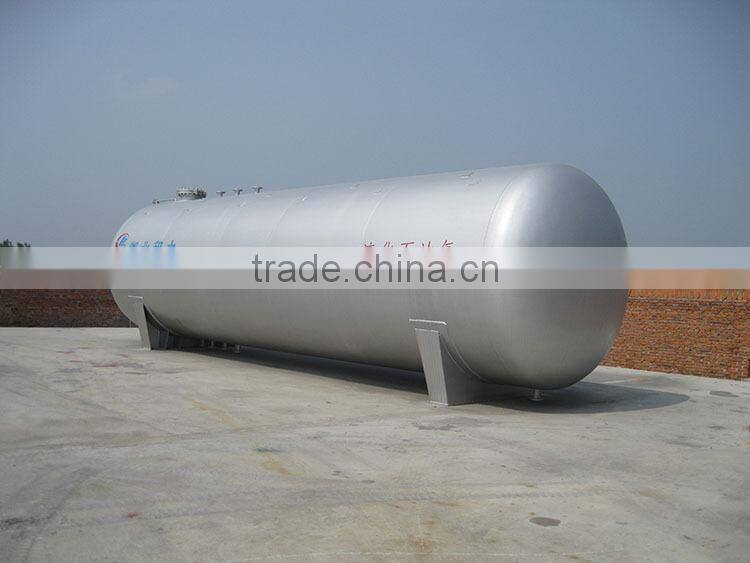

More photos showing

Tittle

lpg transport truck tankslpg transport truck tanks

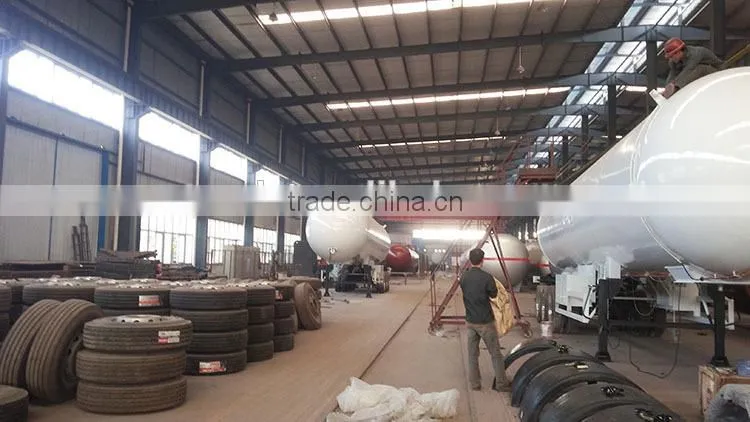

Factory photo show

 Tittle

lpg transport truck tanks

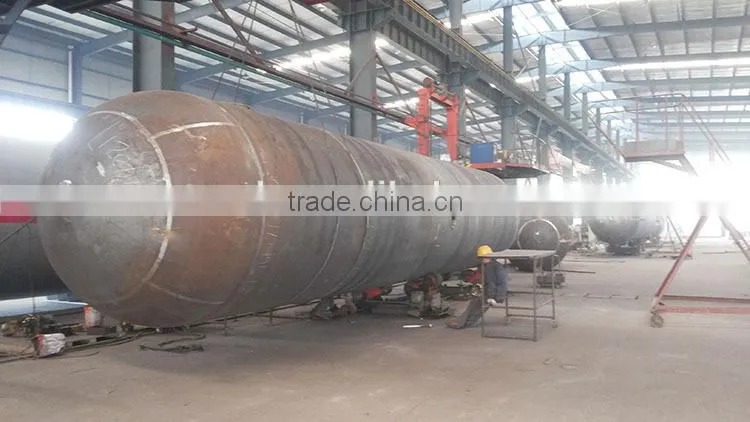

 Materials rolled into tank,  Q345R, Q370R, 16MnIII,

lpg transport truck tanks

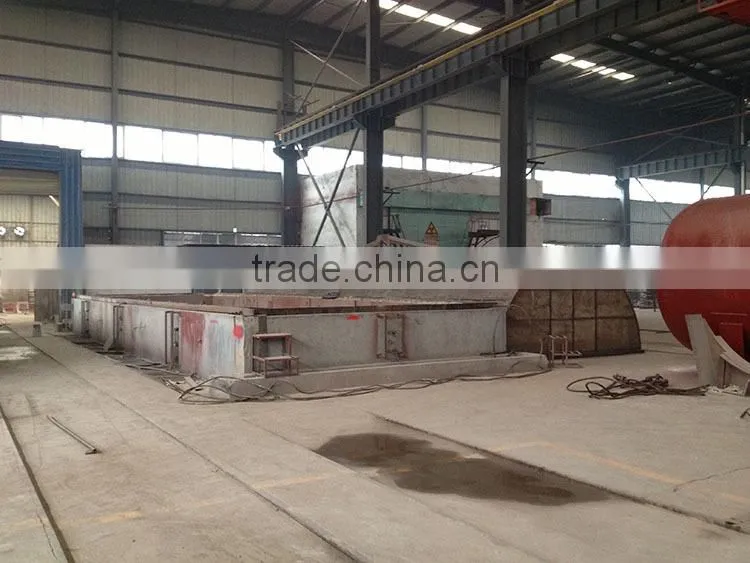

Water Pressure testing. lpg transport truck tanks

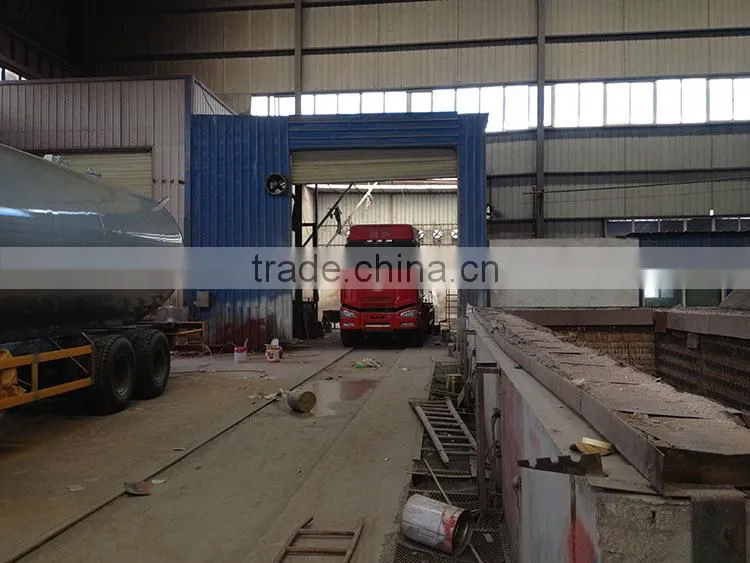

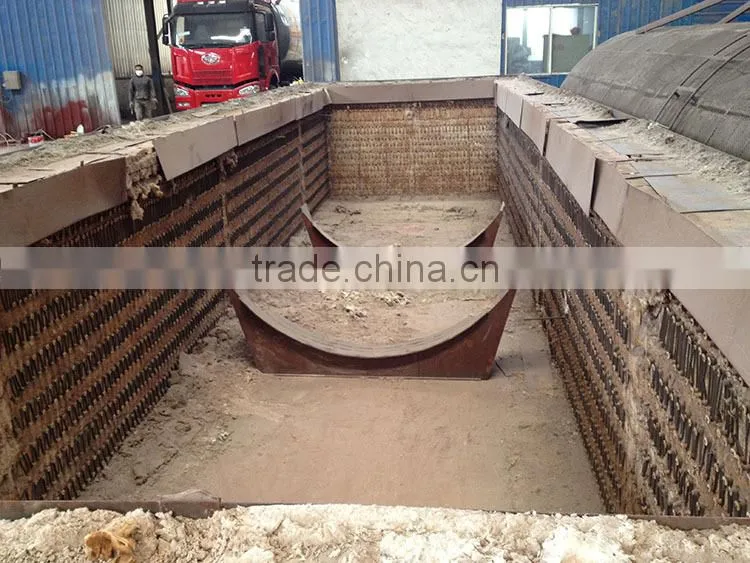

Tank heating testing room.

lpg transport truck tankslpg transport truck tanks

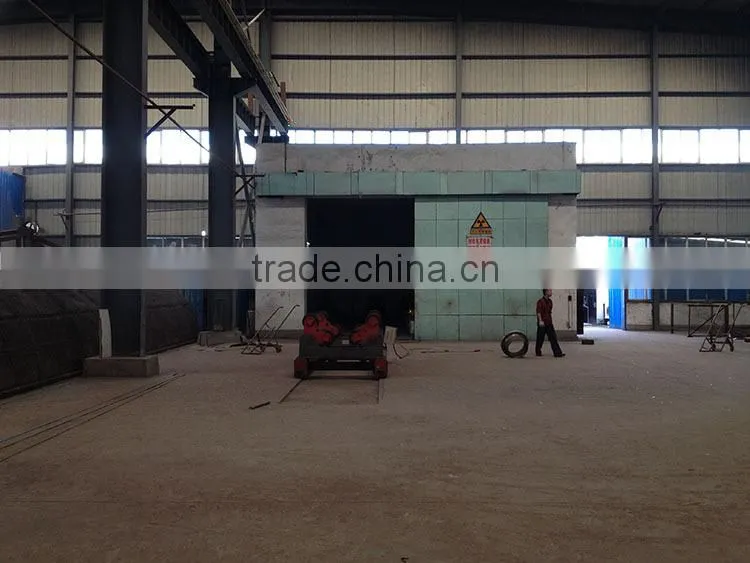

X-ray testing for the tank side cover welding.

lpg transport truck tankslpg transport truck tanks

-----------------------------------------------------------

Manufacturer Standard:  GB150,  China.  which is stricter than ASME standard.

We also could produce the product according the ASME standard.

-----------------------------------------------------------

Certificate:  CCC, ISO,  BV, which is showing on our website.

-----------------------------------------------------------

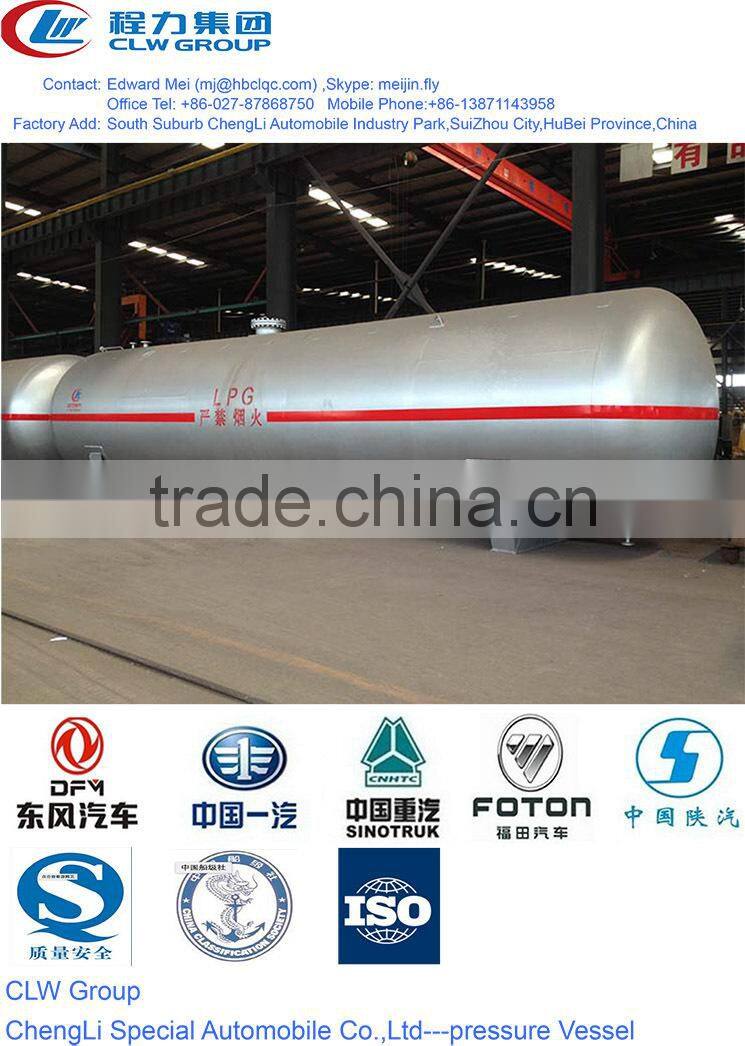

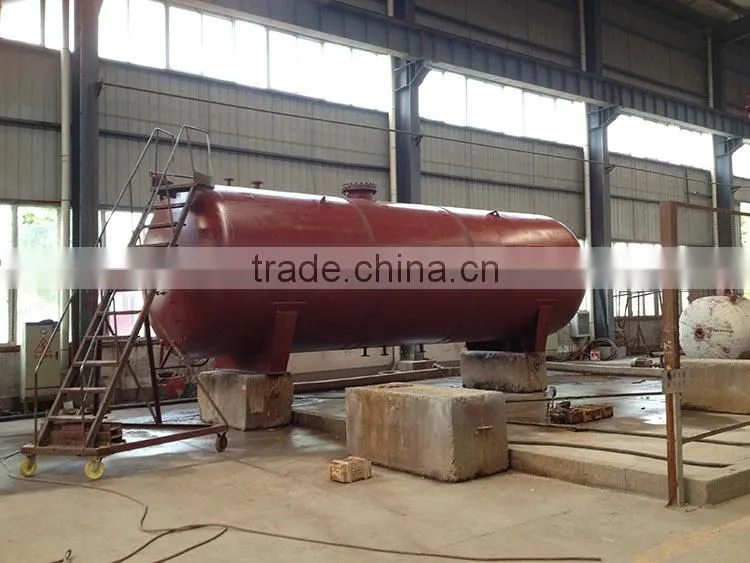

Related product show

Tittle

lpg transport truck tankslpg transport truck tankslpg transport truck tankslpg transport truck tanks





Welcom for you inquiry.
