Lpg Slimming Machine

US$ 10,000 - 40,000 MOQ: 1 Unit

Key Specifications

Get Latest Price

Condition:

New

Capacity:

5~120 m3

Place of Origin:

Hubei, China

Contact Supplier Request Quote Chat Now

Chengli Special Automobile Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

any port of china

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Capacity 5~120 m3

Place of Origin Hubei, China

Brand Name CLW

Model Number CLW

Dimension(L*W*H) 13020*3240*3740

Weight 22901

Certification CCC, ISO

Warranty one year

After-sales Service Provided Engineers available to service machinery overseas

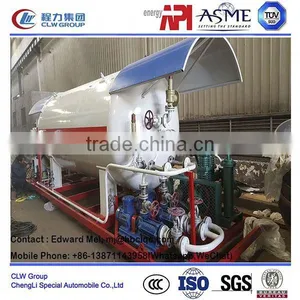

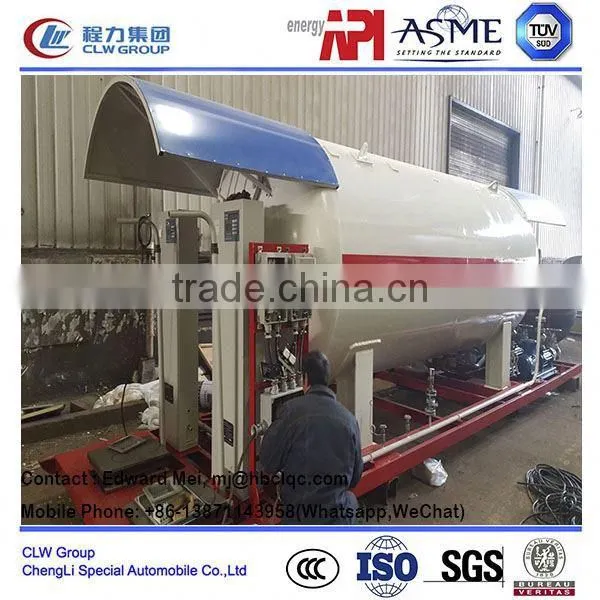

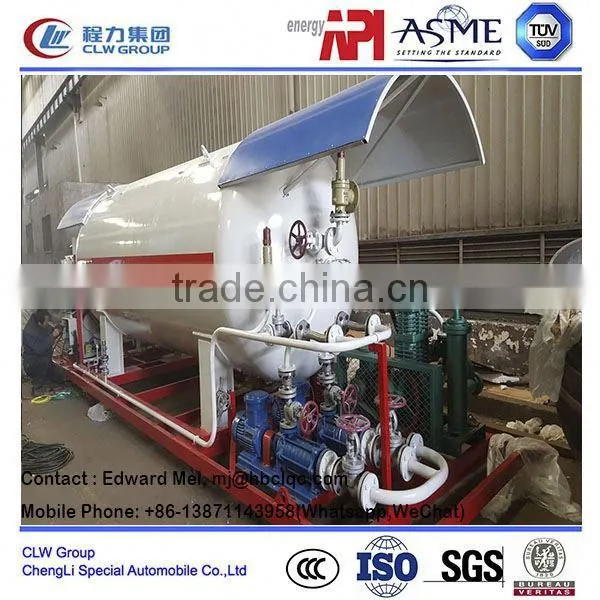

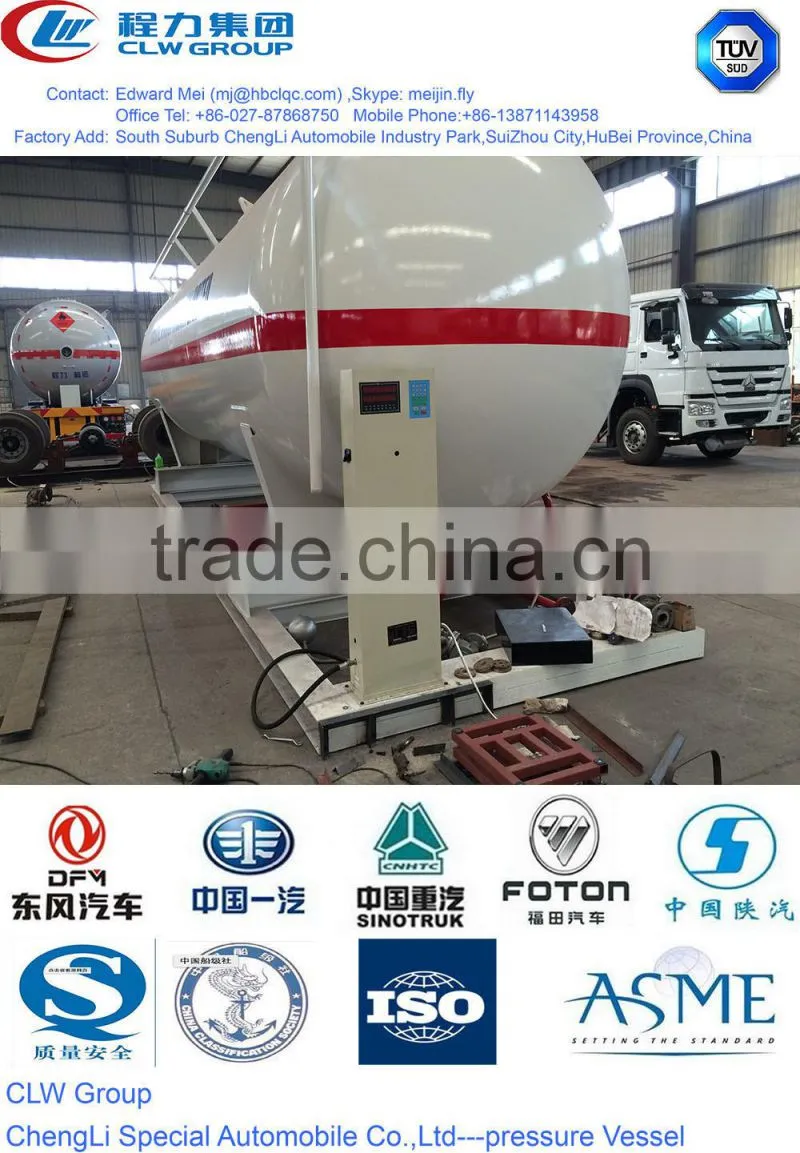

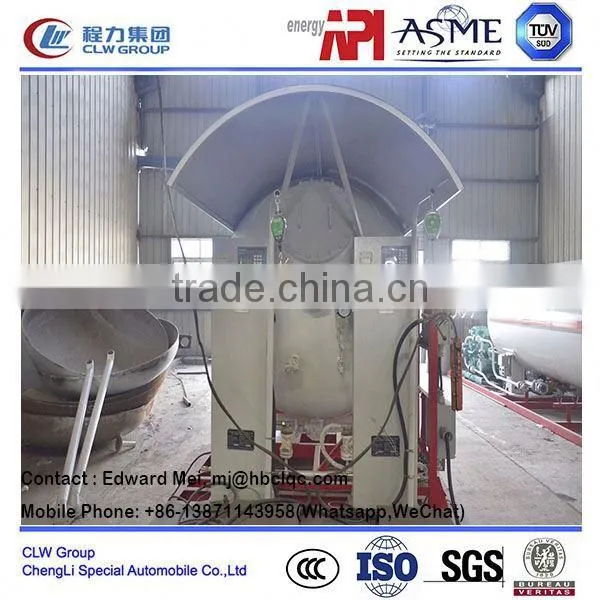

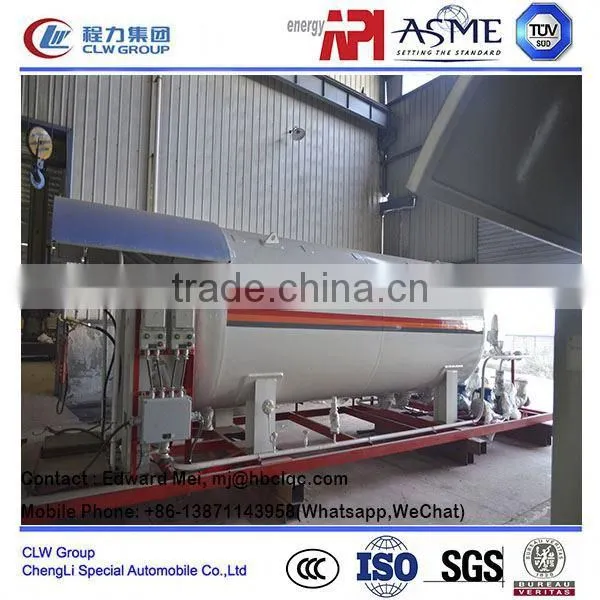

lpg slimming machine

LPG,liquid pressure gas,which is made from oil.The main gas is propane,Isobutane.

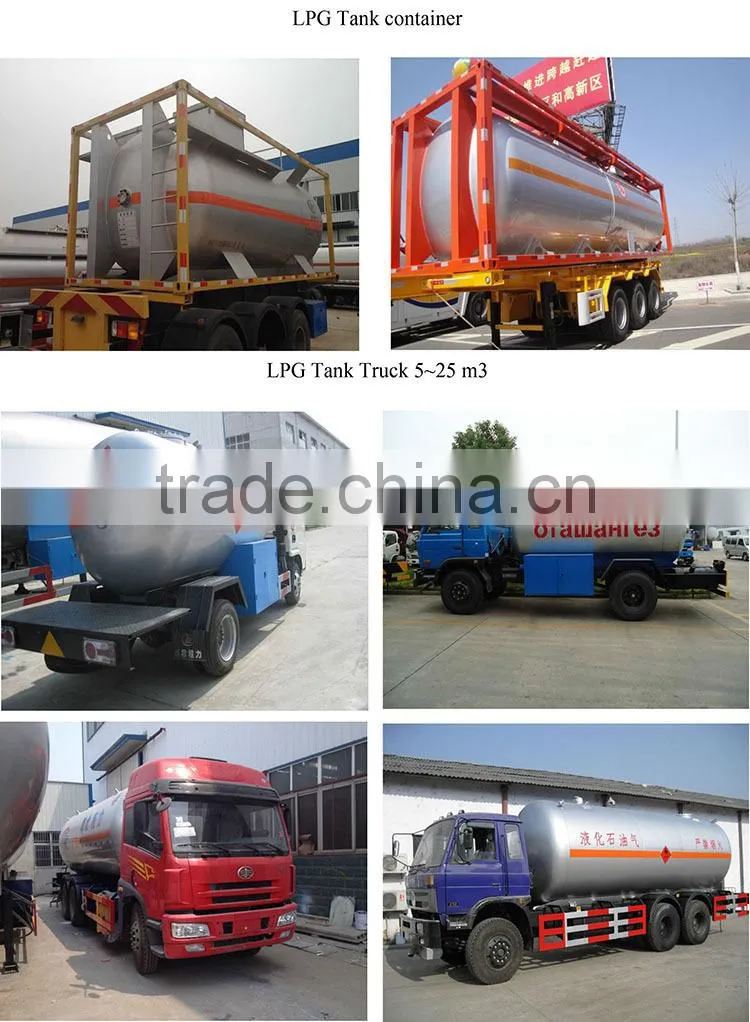

Currently our company produce the lpg tank, lpg tank trailer,lpg tank truck to loading and transporting.

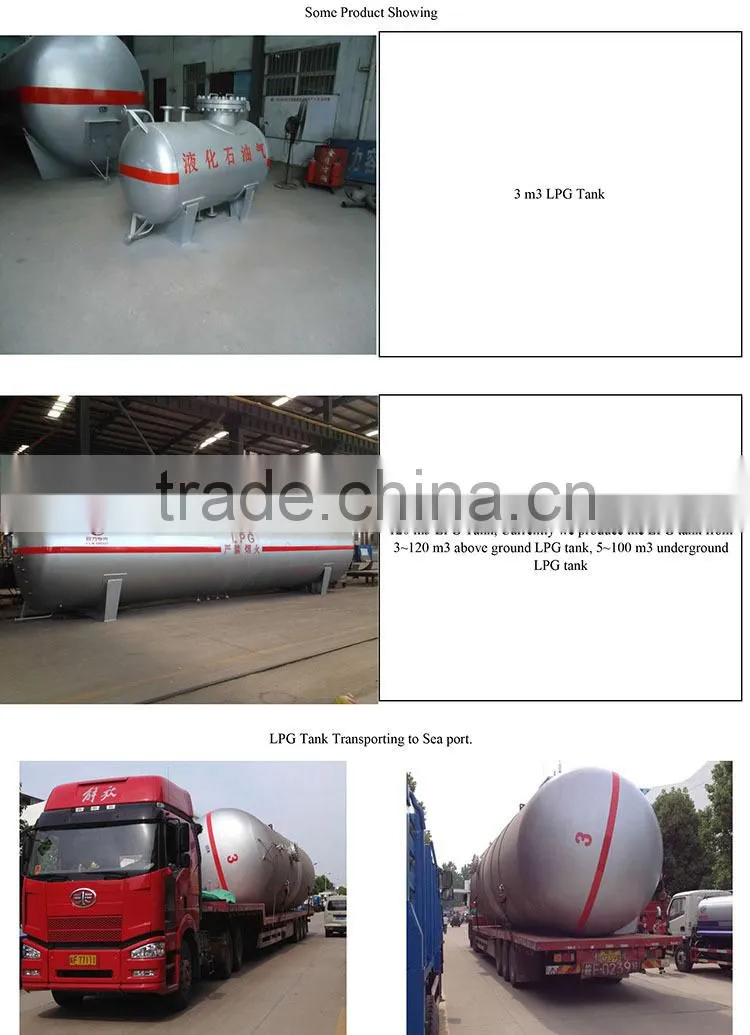

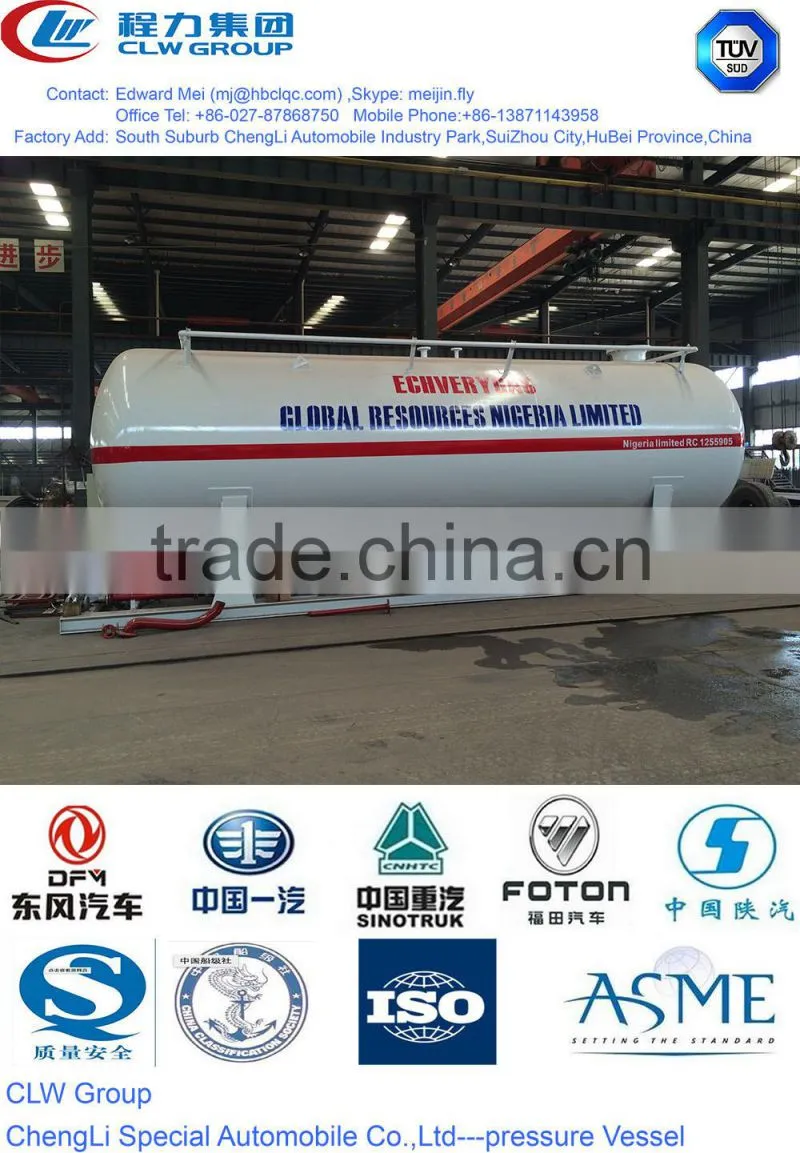

The LPG tank volume from 5~120 m3 for above ground, 5~100 m3 for underground.

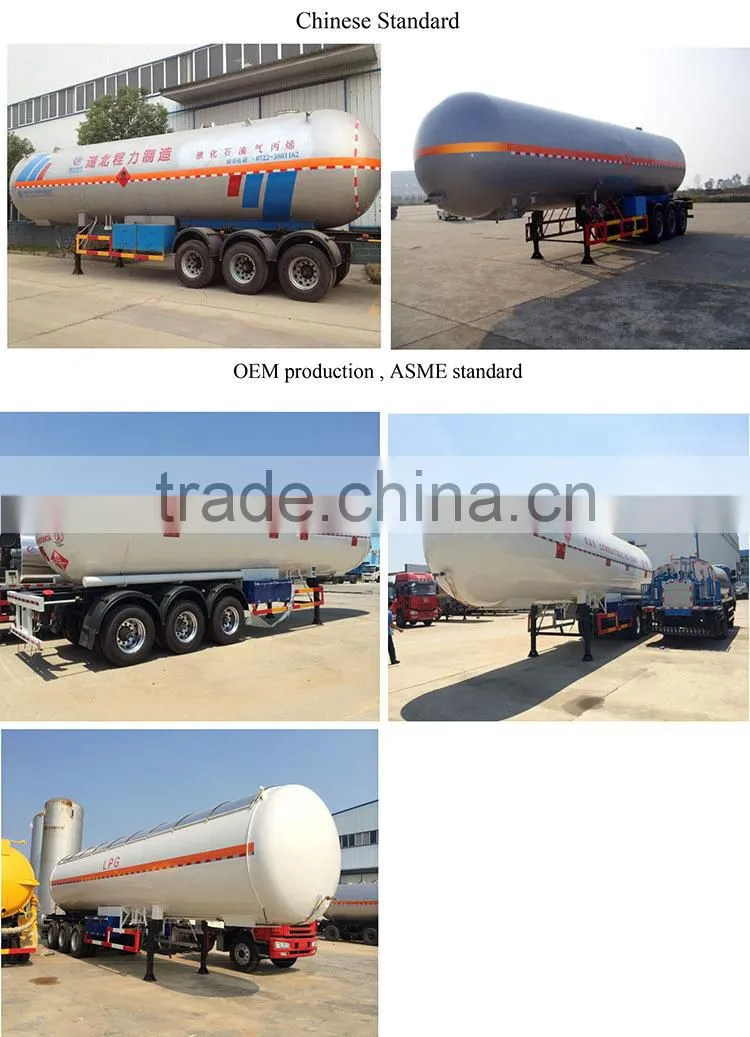

The LPG tank trailer volume from 30~60 m3 with two axles or three axles.

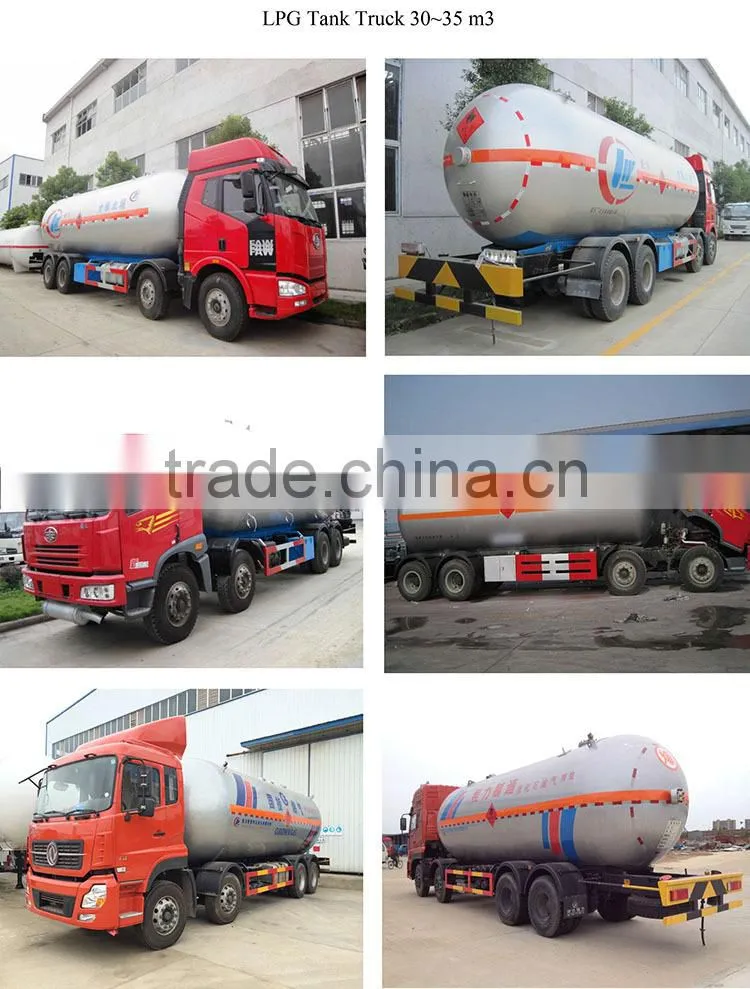

The LPG tank truck with the volume from 5~35 m3.

Product Description

lpg slimming machine

Main specification

lpg slimming machine

Item	Unit	Specification
Loading object		CLW25-12-12
Material		Propane Gas
Designed loading Parameter	Option	Q345R, 16MnIII, Q370R
	Kg/m3	420~ 500
Dimension	mm	759421242714
Net Weight	Kg	24960
Designed Pressure	Mpa	1.77
Max Working Pressure	Mpa	<=1.6
Designed Temperature	C	-20~50
Volume	m3	25
Body thick	mm	12
Cover thick	mm	12
Man Hole	mm	450
Top Safety Valve Port	mm	80
Life Year	Year	10
Input and output
Liquid input Port	mm	DN50 ( 2 Inch)	2.5Mpa
Liquid Output Port	mm	DN50 (2 Inch)	2.5Mpa
Bottom Air gas input Port	mm	DN50 (2 Inch)	2.5Mpa
Waste Liquid Output Port	mm	DN50 (3 Inch)	2.5Mpa
Top Gas Let Out Port	mm	DN50 (3 Inch)	2.5Mpa
Liquid Level Indicator Port	mm	DN20	2.5Mpa
Essential Device for option
Safety Valve, Temperature Gague, Pressure Gauge
Option~ flange
Production Standard
China GB 150 Pressure Vessel Manufacturer Standard, Or ASME Standard
Designed Valid Year, at least 10 year
