190 hp DONGFENG 4*2 Rear Loader Garbage Truck 12 ton
Rear Loader Garbage Truck is also called docking garbage truck, garbage collecting truck, garbage transport truck, mainly used in transporting kinds of garbage for municipal sanitatio ,large factories and mines ,etc, especially apply to transport household waste in residential area. According to loading and unloading type, it is divided into the following categories: dump garbage truck, hook arm garbage truck, compactor garbage truck, swing arm garbage truck, self-loading garbage truck, sealed type garbage truck.
Product features:
1.DONGFENG 4*2 cargo chassis with 190hp, docking box volume:17m3
2. Automatic hydrauli operation ,High efficiency ;
3. High quality low price
Main technical parameter of 190 hp DONGFENG 4*2 Rear Loader Garbage Truck 12 ton
Main Technical Parameter | |||
Product Name | DONGFENG Rear Loader Garbage Truck | Overall Dimension(L*W*H)(mm) | 7800×2480×3000 |
Wheelbase(mm) | 4500 | Approach/ departure angle (° ) | 25/15 |
Curb weight(kg) | 8795 | Dustbin volume(m3) | 17 |
Axle number | 2 | Max Speed(km/h) | 85 |
Cab capacity | 3 | Steering type | LHD with power steering |
Cab type | one and half row, flat proof | Max Speed (km/h) | 90 |
Chassis Technical Parameter | |||
Chassis Model: | EQ5140 | Chassis Manufacturer: | DONGFENG Motor Co., Ltd |
Gear box | 6 forward and 1 reverse | Transmission type: | Manual |
number of tires | 6 with a spare | Leaf Spring number: | 8/10+8 |
Tire size | 10.00-20,10.00R20 | Traction Type: | 4*2 |
Engine specification | |||
Engine Model: | B190 33 | Engine Brand | DONGFENG |
Emission stand | Euro 3 | Displacement(ml) | 5900 |
Fuel type: | diesel | Power(kw) | 140(190hp) |
Warranty | 12 months, from the date of supply | ||
Remark |
| ||
| |||
| |||

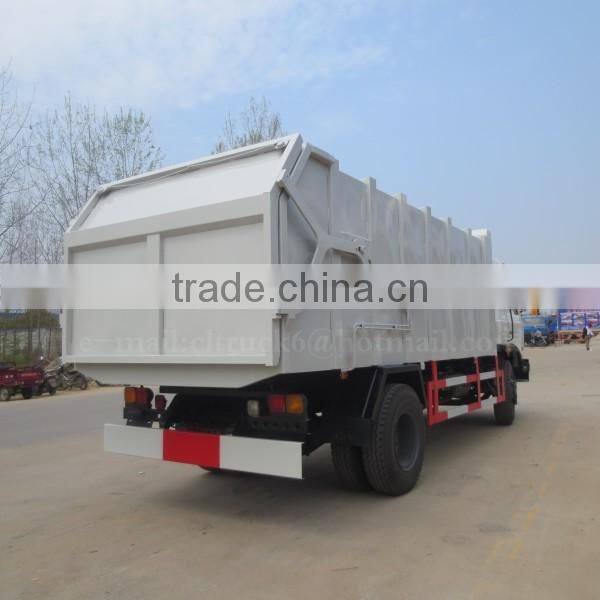

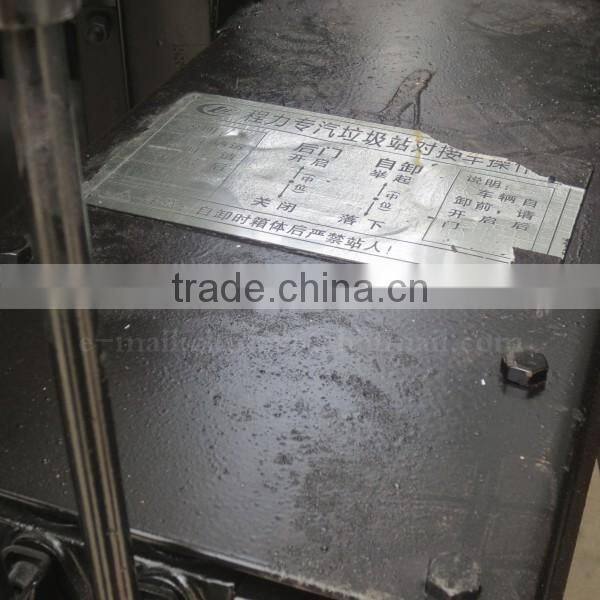

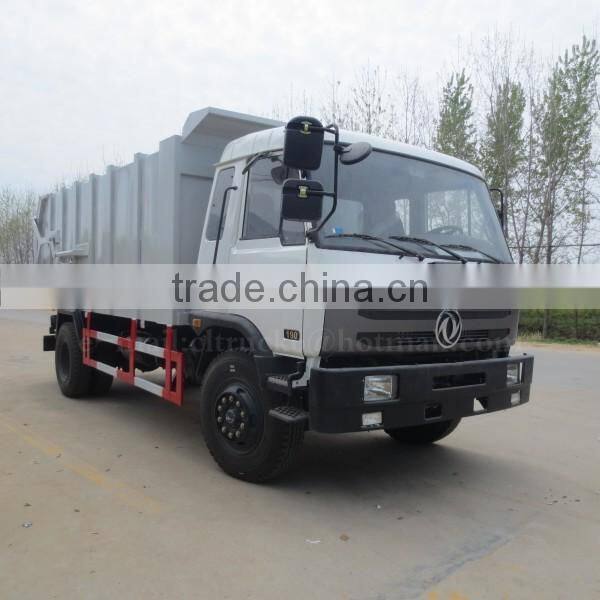

Multi-faceed Show of 190 hp DONGFENG 4*2 Rear Loader Garbage Truck 12 ton :
Brief Introduction of my Company:
ChengLi Special Automobile Co., Ltd ,which is appointed by the Ministry of Industry and Information Technology of China, is a big manufacturer producing all kinds of special trucks. It has registered trademark"CHENLIWEI" and the products code is CLW. It has solid technology,flawless inspection,advanced equipments,reliant quality and flexible modes of operation. What's more, it has roundly passed the certificaton of ISO 9001-2008 and the 3C Certification(China Compulsory Certification) and other certifications that export needed.
Since ChengLi company was established in Sep. 2004, ChengLi Special Trucks have always taken the top place in Chinese market in recent ten years and have procured remarkable achievements interiorly and oversea.
We can design and produce many kinds of special trucks accurately as your request. Our company own independent export right, and has a mount of clients overseas, such as the U.N., Sudan, Nigeria, North America, West Africa, Congo, Vietnam Ghana, Kazakhstan etc. We strives for the survival by the quality and credit standing is the guarantee of our success.
ChengLi Special Automobile co.,Ltd is located in Suizhou City, the native place of YanDi ShenNong,the hometown of BianZhong and the City of Special Truck. Welcome the friends from all over the world to SuiZhou! You will be the most enthusiastic reception.
Our Certificates:
Factory Show:
Production Equipments:
Trucks Exported:
Contact Information:
If you have any questions, pls feel free to contact with me via e-mail or phone, I will try
my best to help you. You can count on me. Please remember as below:
