140hp DONGFENG 4*2 Swing Arm Garbage Truck 6 m3
Swing Arm Garbage Truck is also called Swing arm refuse truck, garbage collecting truck, garbage transport truck, mainly used in transporting kinds of garbage for municipal sanitation ,large factories and mines ,etc, especially apply to transport household waste in residential area. According to loading and unloading type, it is divided into the following categories: dump garbage truck, hook arm garbage truck, compactor garbage truck, swing arm garbage truck, self-loading garbage truck, sealed type garbage truck.
,
Product note:
Swing Arm Garbage Truck is constructed by 4mm carbon steel, the body is fitted on the chassis by the truck beam. It is widely used in garbage disposal in street , school and other places, can be equipped with many garbage buckets, such as underground refuse bucket, ground refuse bucket, etc. it have dump function, hydraulic operation, convenient and economical.
Product Features :
1.Simple, efficient collection & treatment methods;
2. Automatic hydrauli operation ,High efficiency ;
3. ISO9001,3C
4. Factory direct sale
5. Economical ,Practical
6. DONGFENG tip head 4*2 chassis,Yuchai 140hp
Technical parameter of 140hp DONGFENG 4*2 Swing Arm Garbage Truck 6 m3
Main Technical Parameter | |||
Product Model | DONGFENG Swing Arm Garbage Truck | Overall Dimension(L*W*H)(mm) | 7185×2470×3300 |
Wheelbase(mm) | 3950 | Refuse bucket volume(CBM) | 6 |
Curb weight(kg) | Approx 5750 | F/ R suspension(mm) | 1430/2570 |
Steering Type | LHD | Number of Axles | 2 |
Approach/ departure angle (° ) | 19/9 | Max Speed (km/h) | 90 |
Cab capacity | 2 | Cab Type | Flat proof, single row |
Chassis Technical Parameter | |||
Chassis Model | EQ1102 | Chassis manufacturer | DONGFENG Automobile |
Gear Box | 5 shift | Transmission type | Manual |
Brake System | air brake | Traction Type | 4*2 |
Leaf Spring number | 9/12+9 | Tire size/type | 9.00-20,9.00R20 |
Engine Technical Parameter | |||
Engine Model | YC4E140-33 | Engine manufacturer | Guangxi Yuchai |
Fuel type | diesel | Displacement(ml) | 4260 |
Emission stand | Euro 3 | Power(kw) | 103(140hp) |
Equipment & Performance | 1. Achieve loading and unloading the refuse by hydarulic system | ||
2.Buckets material: side and back 3mm ,floor 4mm thickness carbon steel, one truck can be equipped with many buckets | |||
3.Equipped with 24V Electrically Hydraulic Control system | |||
Warranty | 12 months, from the date of supply | ||

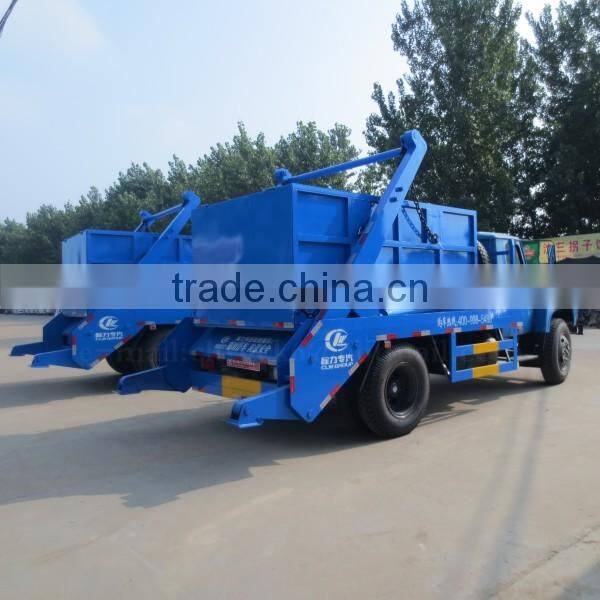

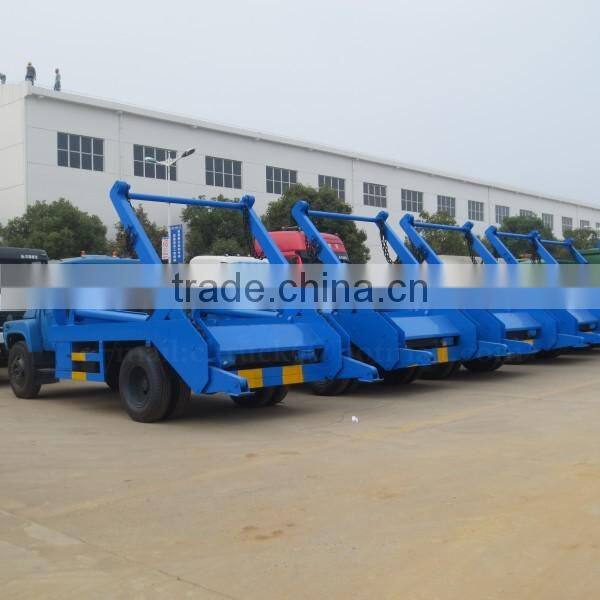

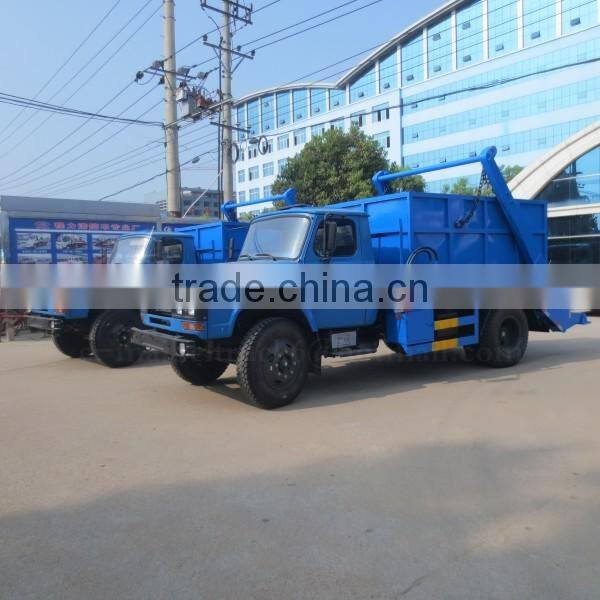

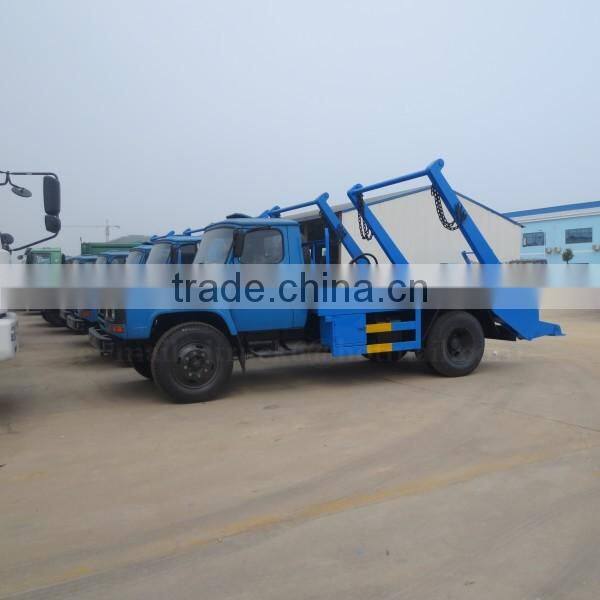

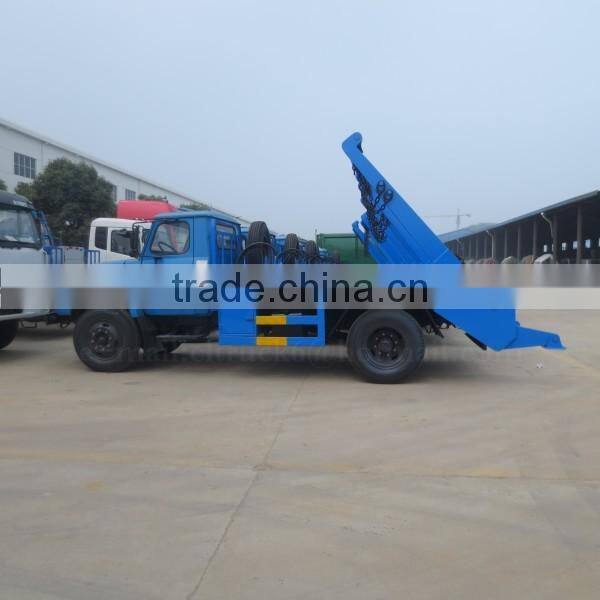

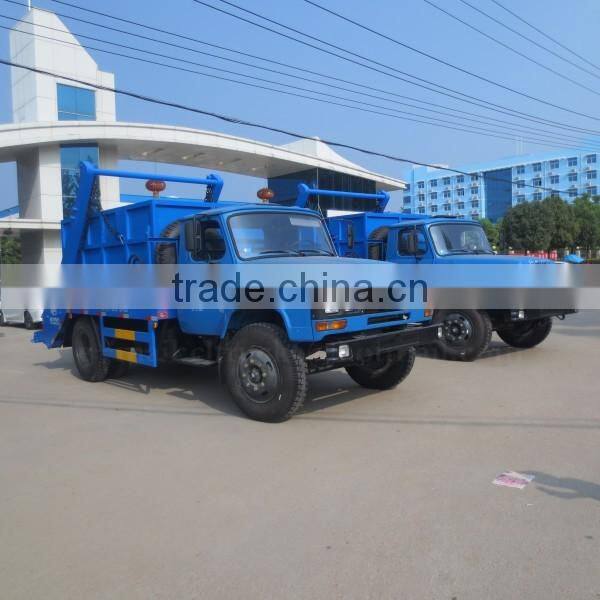

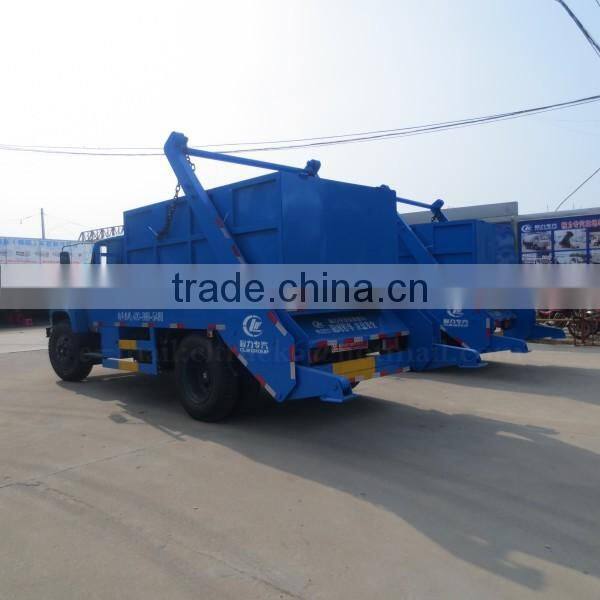

Multi-faceted Show of 140hp DONGFENG 4*2 Swing Arm Garbage Truck 6 m3 :
Brief Introduction of Company:
ChengLi Special Automobile Co., Ltd ,which is appointed by the Ministry of Industry and Information Technology of China, is a big manufacturer producing all kinds of special trucks. It has registered trademark"CHENLIWEI" and the products code is CLW. It has solid technology,flawless inspection,advanced equipments,reliant quality and flexible modes of operation. What's more, it has roundly passed the certificaton of ISO 9001-2008 and the 3C Certification(China Compulsory Certification) and other certifications that export needed.
Since ChengLi company was established in Sep. 2004, ChengLi Special Trucks have always taken the top place in Chinese market in recent ten years and have procured remarkable achievements interiorly and oversea.
We can design and produce many kinds of special trucks accurately as your request. Our company own independent export right, and has a mount of clients overseas, such as the U.N., Sudan, Nigeria, North America, West Africa, Congo, Vietnam Ghana, Kazakhstan etc. We strives for the survival by the quality and credit standing is the guarantee of our success.
ChengLi Special Automobile co.,Ltd is located in Suizhou City, the native place of YanDi ShenNong,the hometown of BianZhong and the City of Special Truck. Welcome the friends from all over the world to SuiZhou! You will be the most enthusiastic reception.
our Certificates:
Production Equippments:
Trucks Exported:
Contact Information:
If you have any questions, pls feel free to contact with me via e-mail or phone, I will try my best to help you. You can count on me. Please remember as below:
