140hp 4*2 DONGFENG Dump Refuse Truck 6 ton
Dump Refuse truck is also called garbage collecting truck, garbage transport truck, mainly used in transporting kinds of garbage for municipal sanitatio ,large factories and mines ,etc, especially apply to transport household waste in residential area. According to loading and unloading type, it is divided into the following categories: dump garbage truck, hook arm garbage truck, compactor garbage truck, swing arm garbage truck, self-loading garbage truck, sealed type garbage truck.
,
Product note:
Dump Refuse truck is constructed by carbon steel, the body is fitted on the chassis by the truck beam. It is widely used in garbage disposal in street , school and other places, can be equipped with many garbage bucker, it have dump function, hydraulic operation, dump conveniently.
The features of 140hp 4*2 DONGFENG Dump Refuse Truck 6 ton :
1.Simple, efficient collection methods;
2.Automatic operation;
3.Environmentally friendly with top cover;
4. ISO9001,3C
5. Factory direct sale
6. Economical ,Practical
Main parameter of 140hp 4*2 DONGFENG Dump Refuse Truck 6 ton
Main Technical Parameter | |||
Product Name | DONGFENG Dump Refuse truck | Overall Dimension(L*W*H)(mm) | 6830×2450×2750 |
Compartment Dimension(L*W*H)(mm) | 3700×2210×800 | Curb weight(kg) | 5520 |
Approach/ departure angle (° ) | 34/18 | Max Speed (km/h) | 80 |
Front/ rear suspension(mm) | 1250/1800 | Wheelbase(mm) | 3950 |
Cab capacity | 3 | Cab type | Flat proof, one and half row |
Chassis Technical Parameter | |||
Chassis Model: | EQ1102 | Chassis Manufacturer: | DONGFENG Automobile Co., Ltd |
Brake System | Air brake | Transmission type: | Manual with 5 shift |
Traction Type: | 4*2 | Leaf Spring number: | 9/12+9 |
Axle number | 2 | Steering type | LHD |
Tire size | 9.00-20,9.00R20 | Number of Tire | 6 with a spare |
Engine specification | |||
Engine Model: | YC4E140-30 | Engine Brand | Guangxi Yuchai |
Emission stand | Euro 2 | Displacement(ml) | 4260 |
Fuel type: | Diesel | Power(kw) | 105(140hp) |
Warranty | 12 months, from the date of supply | ||
other Equipment or performances | 1. 24V Electric system, electrically hydraulic operation control | ||
2. Material: side 3mm ,floor 4mm carbon steel | |||

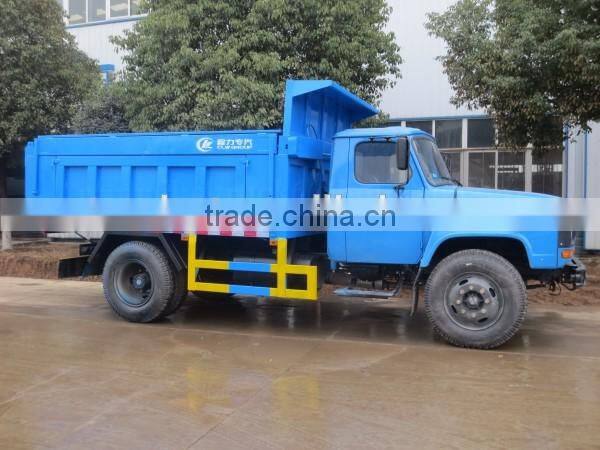

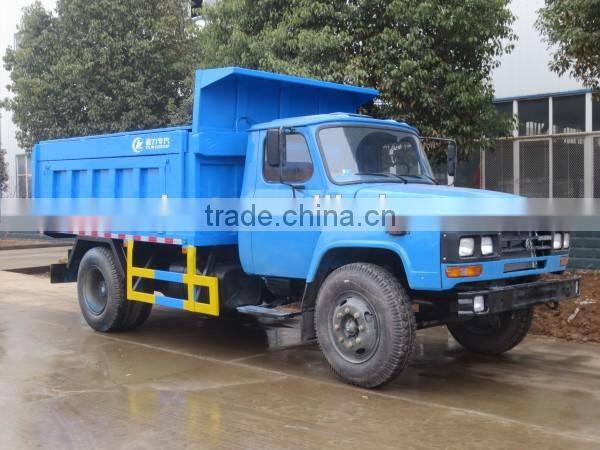

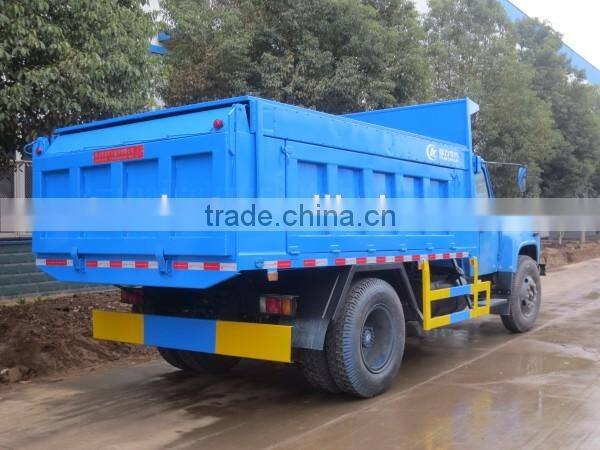

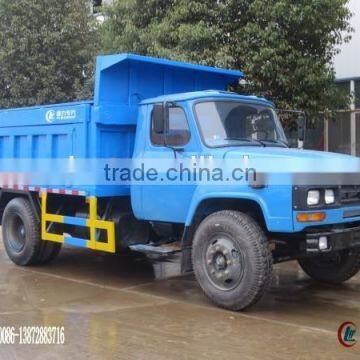

Multi-faceted Show of 140hp 4*2 DONGFENG Dump Refuse Truck 6 ton :
Brief Introduction of Company:
ChengLi Special Automobile Co., Ltd ,which is appointed by the Ministry of Industry and Information Technology of China, is a big manufacturer producing all kinds of special trucks. It has registered trademark"CHENLIWEI" and the products code is CLW. It has solid technology,flawless inspection,advanced equipments,reliant quality and flexible modes of operation. What's more, it has roundly passed the certificaton of ISO 9001-2008 and the 3C Certification(China Compulsory Certification) and other certifications that export needed.
Since ChengLi company was established in Sep. 2004, ChengLi Special Trucks have always taken the top place in Chinese market in recent ten years and have procured remarkable achievements interiorly and oversea.
We can design and produce many kinds of special trucks accurately as your request. Our company own independent export right, and has a mount of clients overseas, such as the U.N., Sudan, Nigeria, North America, West Africa, Congo, Vietnam Ghana, Kazakhstan etc. We strives for the survival by the quality and credit standing is the guarantee of our success.
ChengLi Special Automobile co.,Ltd is located in Suizhou City, the native place of YanDi ShenNong,the hometown of BianZhong and the City of Special Truck. Welcome the friends from all over the world to SuiZhou! You will be the most enthusiastic reception.
our Certificates:
Production Equipments:
Trucks Exported:
Contact Information:
If you have any questions, pls feel free to contact with me via e-mail or phone, I will try my best to help you. You can count on me. Please remember as below:
