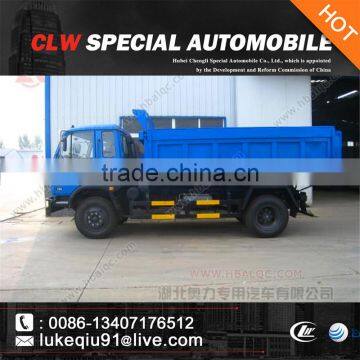

4*2 DONGFENG 145 Garbage Disposal Truck 10Ton

4*2 DONGFENG 145 Garbage Disposal Truck 10Ton photo-1
US$ 18,600 - 20,900 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Drive Wheel:
4x2
Type:
Other, dump type
Payment & Shipping
Payment Methods:
Port of Shipment:
any port in China
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Drive Wheel 4x2
Type Other, dump type
Transmission Type Manual
Emission Standard Euro 3
Volume 6001 - 10000L
Fuel Type Diesel
Engine Capacity 5900
Size 7000*2490*2980
Gross Vehicle Weight 11100
Place of Origin Hubei, China
Brand Name Dongfeng
Model Number EQ1162GJAC
Certification ISO9001,3c
After-sales Service Provided Overseas third-party support available

     4*2 DONGFENG 145 Garbage Disposal Truck 10Ton





4*2 DONGFENG 145 Garbage Disposal Truck 10 Ton





           Garbage Disposal Truck is also called garbage collecting truck, garbage transport truck, mainly used in transporting kinds of  garbage for municipal sanitatio ,large factories and mines ,etc, especially apply to transport  household waste in residential area. According to loading and unloading type, it is divided into  the following categories: dump garbage truck, hook arm garbage truck, compactor garbage truck, swing arm garbage truck, self-loading garbage truck, sealed type garbage truck.



Product features:

1.Simple, efficient collection methods;

2.Automatic operation;

3.Environmentally friendly with top cover;

4. High quality low price



 Main parameter of 4*2 DONGFENG 145 Garbage Disposal Truck 10 Ton





Main Technical Parameter

Product Name

DONGFENG Garbage Disposal Truck

Overall Dimension(L*W*H)(mm)

7000×2490×2980

Compartment Dimension(L*W*H)(mm)

4480×2210×800

Curb weight(kg)

6295

Approach/ departure angle (° )

34/15

Max Speed (km/h)

80

Front/ rear suspension(mm)

1250/1800

Wheelbase(mm)

3950

Cab capacity

3

Cab type

Flat proof, one and half row

Chassis Technical Parameter

Chassis Model:

EQ1162GJAC

Chassis Manufacturer:

DONGFENG Automobile Co., Ltd

Brake System

Air brake

Transmission type:

Manual with 5 shift

Traction Type:

4*2

Leaf Spring number:

9/11+8

Axle number

2

Steering type

LHD with power steering

Tire size

9.00-20,9.00R20

Number of Tire

6 with a spare

Engine specification

Engine Model:

B170 33

Engine Brand

DONGFENG

Emission stand

Euro 3

Displacement(ml)

5900

Fuel type:

Diesel

Power(kw)

125(170hp)

Warranty

12 months, from the date of supply

other Equipment or performances

1. 24V Electric system, electrically hydraulic operation control

2. Material:3mm carbon steel



Product Picture of DONGFENG garbage Disposal Truck :



 4*2 DONGFENG 145 Garbage Disposal Truck 10Ton

4*2 DONGFENG 145 Garbage Disposal Truck 10Ton



4*2 DONGFENG 145 Garbage Disposal Truck 10Ton



4*2 DONGFENG 145 Garbage Disposal Truck 10Ton



4*2 DONGFENG 145 Garbage Disposal Truck 10Ton
