340 Hp SHACMAN 6*4 Cement Mixer Truck 9m3
6*4 Cement Mixer Truck , is also called cement truck, concrete mixing truck, cement mix truck, concrete mixing transport truck, mainly used in transporting mixed concrete used in construction with mixing drum.
Product Notes:
1. This truck adopt plow shape mixing angle, perfect carbon steel, rugged wear;
2. Feed,discharge fast speed, stir well;
3. Main component adopt imported Italy PMP equipment or Chinese brand, high quality
4. SHACMAN Delong 6*4 chassis,340hp, mixing volume: 8-12m3
5. Competitive price
Main Parameterof 340 Hp SHACMAN 6*4 Cement Mixer Truck 9m3
Main technical parameter | |||
Product Model |
SHACMAN 6*4 Cement Mixer Truck |
Overall Dimension(L*W*H)(mm) |
9380×2490×3950 |
Mixing Volume(m3) |
9 |
Wheelbase(mm) |
3800+1350 |
Curb weight(kg) |
13170 |
Approach/ departure angle (° ) |
20/18 |
Cab type |
One and half row |
Cab capacity |
2 or 3 |
Steering type |
LHD with power steering |
Max Speed (km/h) |
77 |
Chassis Technical Parameter | |||
Chassis Model: |
SX5255GJBDR |
Chassis Manufacturer: |
SHANGXI Automobile Group Co., Ltd |
Brake System |
Air brake |
Transmission type: |
Manual |
Gear box |
FAST 9 shift |
Number of tire |
10 with a spare |
Axle number |
3 |
Front/rear Axle load(Kg) |
7000/32000 |
Tire size |
12.00R20(steel tire) |
Traction Type: |
6*4 |
Engine specification | |||
Engine Model: |
WP10.340E32 |
Engine Brand |
WEICHAI Power Co., Ltd |
Emission stand |
Euro 3 |
Displacement(ml) |
9726 |
Fuel type: |
Diesel |
Power(kw) |
250(340hp) |
Superstructure parameter |
|
||
Warranty |
12 months, from the date of supply |
||

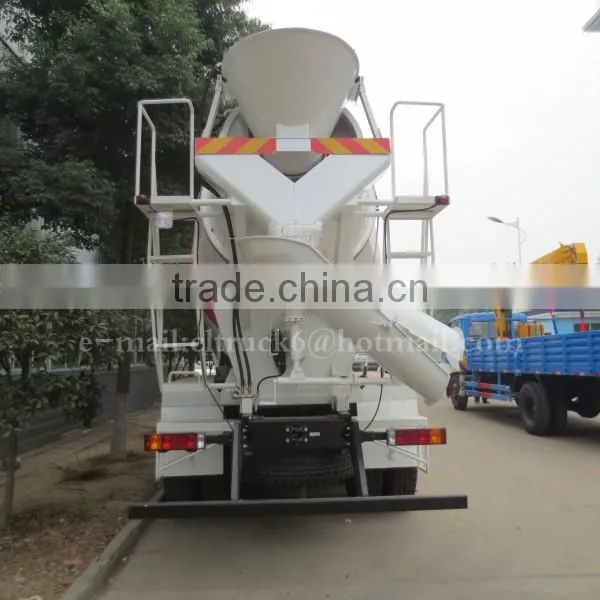

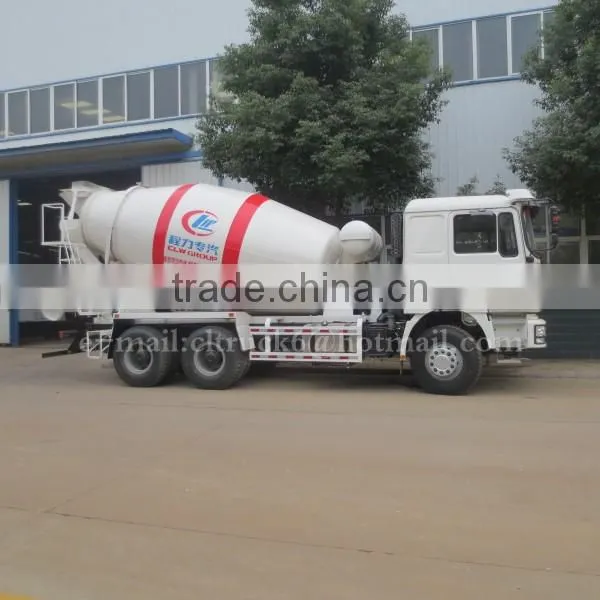

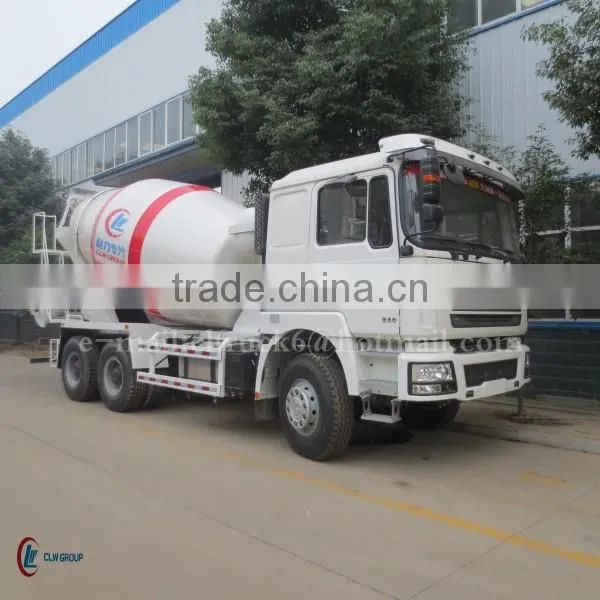

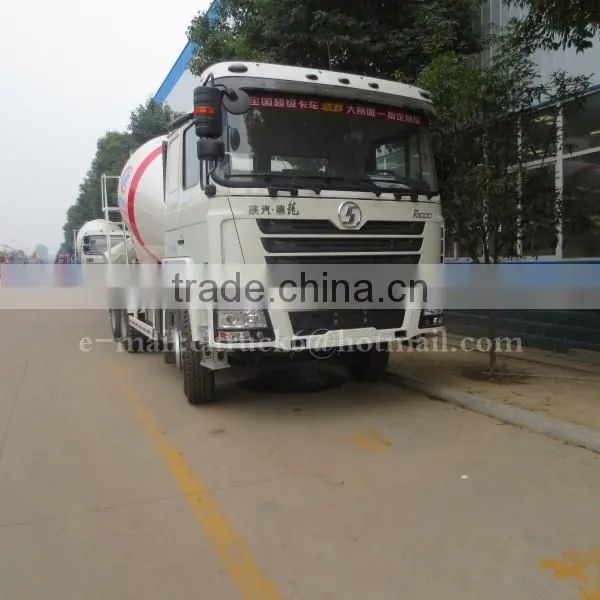

Product Picture of 6*4 Cement Mixer Truck show as following:

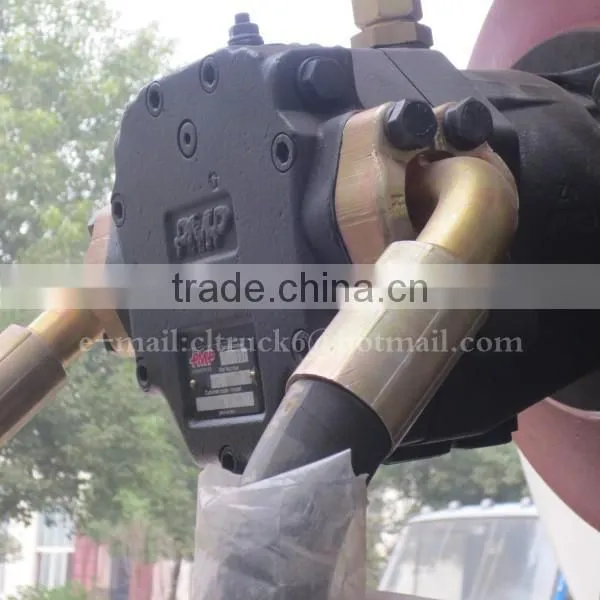

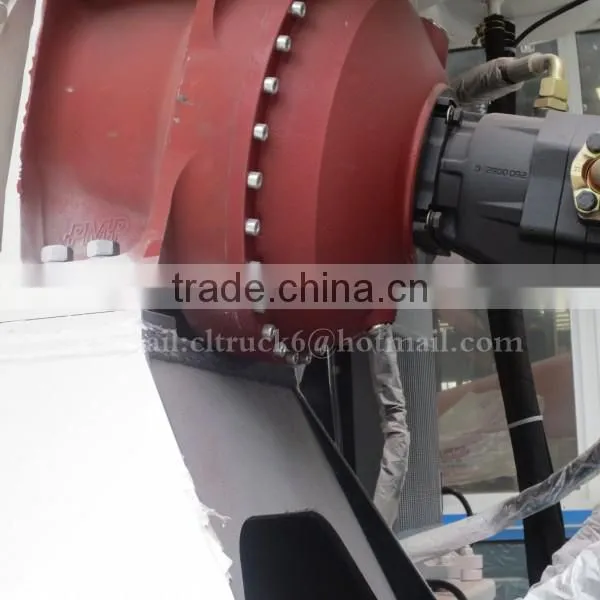

Italy PMP Hydraulic Motor and Hydraulic Pump of 340 Hp SHACMAN 6*4 Cement Mixer Truck 9m3 :
Radiator of this 340 Hp SHACMAN 6*4 Cement Mixer Truck 9m3 :

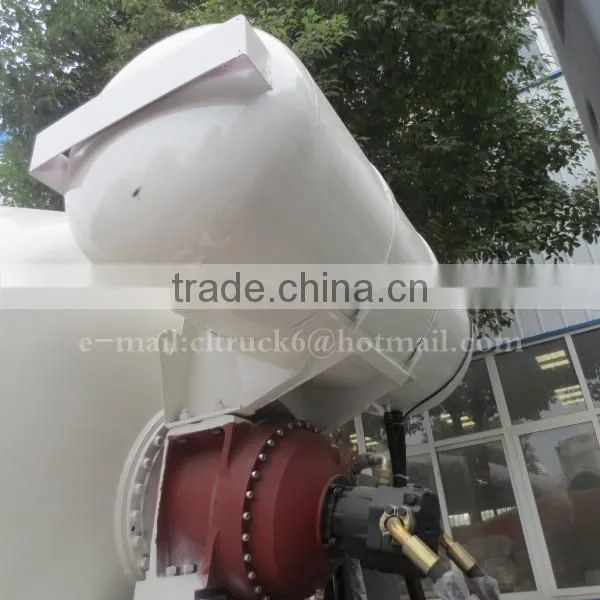

Water Tank of this 340 Hp SHACMAN 6*4 Cement Mixer Truck 9m3 :
Operating lever of this 340 Hp SHACMAN 6*4 Cement Mixer Truck 9m3 :

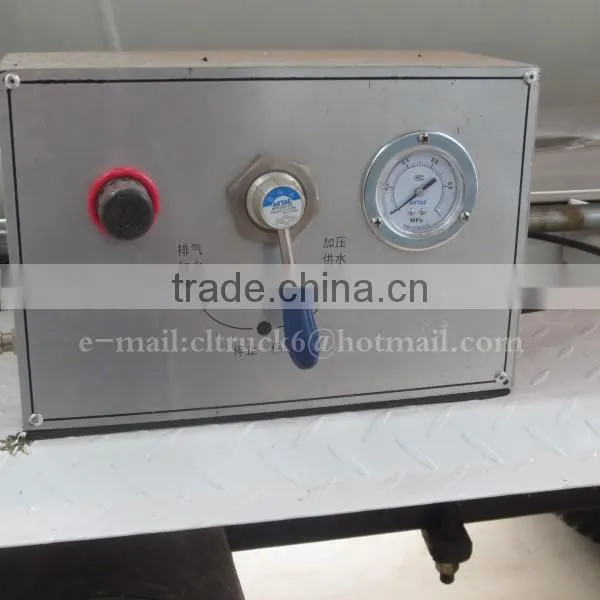

Air pessure water supply of this 340 Hp SHACMAN 6*4 Cement Mixer Truck 9m3 :
