6 cubic meters concrete mix truck manufacturer
Particular advantages of our cement mixer:
1. Mixer drum turn smoothly, no segregation.
2.High quality mixer drum, no leakage.
3.Reinforced truck frame, no vibration during transportation.
4.Large slumps, good flowability, easy to discharge.
6 cubic meters concrete mixer truck technical paramenters reference
Main Technical Parameter | ||||
Product Name | Cement Mixer | Gross Vehicle Weight (kg) | 24900 | |
Rated Payload (kg) | 11805 | Curb Weight (kg) | 12900 | |
Tank Capacity(m³) | 5.52 | Cab Allowed Persons | 3 | |
Axle No. | 3 | Wheelbase (mm) | 3850+1300 | |
Chassis Technical Parameter | ||||
Chassis Model | EQ1250GFJ3 | Chassis Name | Truck Chassis | |
Chassis Brand | DONGFENG | Manufacturer | Dongfeng Automobile Co.,LTD | |
Overall Dimension (mm) | 8460x2470x2850 | Tyre No. | 10 with 1 spare tyre | |
App./ Dep. Angle(º) | 34/23 | Tyre Spec. | 10.00-20 | |
Leaf Spring No. | 9/10 | Front Track (mm) | 1980 | |
Fuel Type | Diesel | Rear Track (mm) | 1860/1860 | |
Drive Type | 6x4 | Brake System | Air brake | |
Steering Wheel | LHD | Gear Box | FAST 6 speed forward and 1 reverse | |
Remarks: 1.Equipped with Italy PMP reducer,hydraulic motor and pump. 2. Tank material is Q345. | ||||
Engine Technical Parameter | ||||
Engine Model | YC6M290-33 | Emission Standard | Euro III | |
Displacement ( mL ) | 9839 | Power | 215KW/290HP | |
Cylinder No. | 6 in line | Engine Type | inter-cooling charged, built-in EGR | |

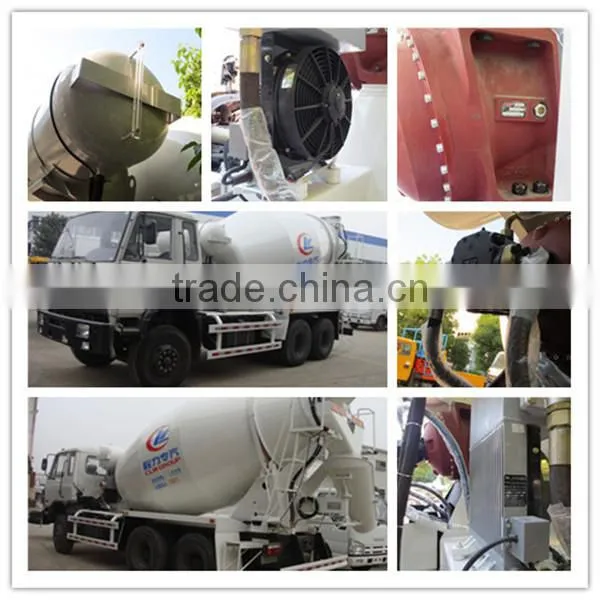

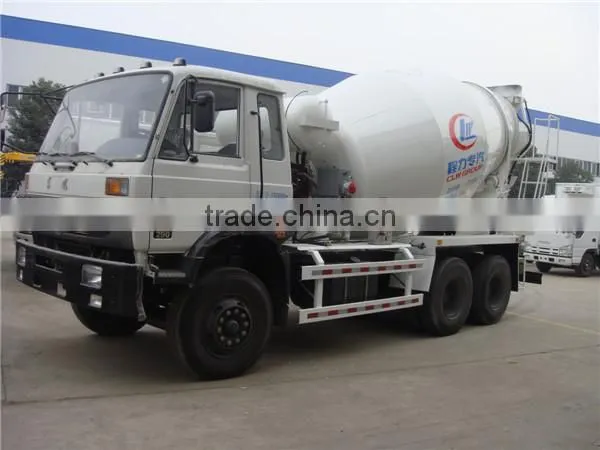

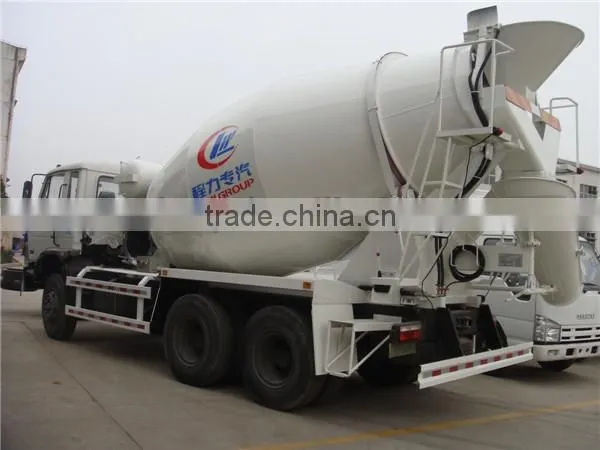

Picture of concrete mix truck
Concrete mixer truck schematics
As a professional manufacturer of special vehicles, we can customize more than 300 kinds of special automobile for you with high quality and best price.They are
1.Chemical liquid truck
2.Water truck
3.Fire engine truck
4.Truck mounted with crane
5.Dump truck,tipper,heavy duty truck
6.Fuel tanker truck
7.Van truck,insulated truck,refrigeration truck
8.High altitude working truck
9.Fecal suction truck,sewage suction truck
10.Concrete mixer
11.Self-loading garbage truck,garbage compactor truck,sealed garbage truck
12.Bulk cement truck
13.Low plate semi-trailer,oil semi-trailer,van semi-trailer,bulk cement transportation semi-trailer,container semi-trailer,chemical liquid semitrailer,etc
Further information or latest price needed, please feel free to contact me by following information.
