Specifications
HOWO 6*4 Mixer Truck1.The cab is capacious and bright
2.Safe and comfortable
3.excellent quality and reasonable price

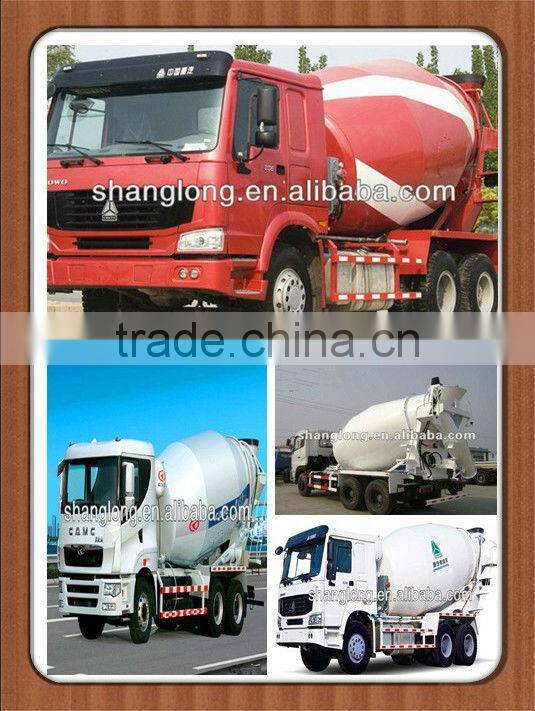

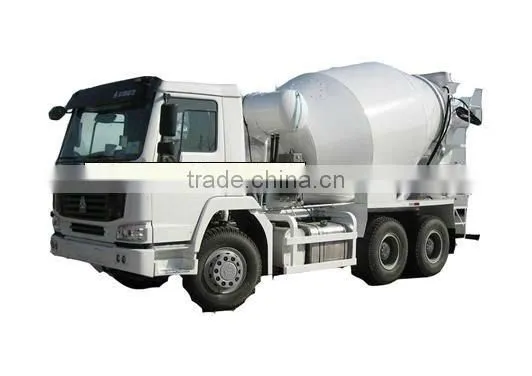

SINOTRUK HOWO ZZ1257M3247W 6*4 290hp Mixer Truck
Main mixer truck model | ZZ1257M3247W | |
Cabin | Model | HW76 |
Type | Lengthen cabin,single sleeper,adjustable steering wheel,VDO panel,control module,safe-belt with 2 locks,outer sun shade | |
Engine | Model | WD615.87 |
Rated power (kW/rpm) | 213/2200 | |
Max.torque (Nm/rpm) | 1160/1100-1600 | |
Discharge L | 9.726 | |
Type | 6 cylinder inline,turbo charger inter cooled,2 valves,postposition supercharger. | |
Gear box | WD615.47 with 430A type, WD615.69 engine with 430B type,WD615.62,WD615.87 with430C type | |
Transmission | SINOTRUK HW series 10 speeds,WD615.62,WD615.87,WD615.69 with HW15710.WD615.47 with HW19710. | |
Front axle | HF9 drum type, rated loading 9T | |
Rear driving axle | HC16 double reduction(central reduction+hub reduction),ration:5.73;4.8 available | |
Suspension | Front&rear suspension are semi-elliptic leaf springs+shock absorber+stabilizer | |
Steering system | ZF8098 steering gear box,ZF power steering pump,system pressure:18MPa | |
Electric system | CAN bus control,voltage:24V:alternator:1540W;starter:7.5KW;battery:12V/165Ah,2 pcs | |
Tyre | 11.00-20;(12.00-20 available) | |
Fuel tank capacity L | 400 | |
Payload kg | 12800/8650 | |
Gross vehicle weight kg | 25000 | |
Rated loading weight kg | 12070/16220 | |
Overall size mm | 8204*2496*3850 | |
Chassis size mm | 7350*2496*2958 | |
Axle base mm | 3225+1350 | |
Front/rear suspension mm | 1500/(2129/1275) | |
Wheelbase(front/rear) mm | 2022/1850 | |
Min.ground clearance mm | 314 | |
Approach/departure angle° | 16(32/36) | |
Max.speed km/h | 75 | |
Max.climbing capacity % | ≥50 | |
Min.turning circle m | 15 | |
Elective volume m^3 | 6;7;8 | |
Remarks | WD615.62 available | |
Company Instruction:
Jinan Shanglong International Trade Co.,Ltd is located in Jinan, Shandong Province, China. With more years development, we specializes in exporting SINOTRUCKseries trucks, such as tipper, tractor, mixer, cargo truck, special-using truck,semi-trailer and spare parts. What’s more, MEIYA Pickup truck, SUV truck and Minibus.
XCMG and ZOOMLION series construction machinery such as truck crane, wheel loader, excavator, compactor, road roller,pump truck and spare parts. Now in the international construction lifting machinery industry, their output and sales rank top and its economic scale and competitive benefits rank top, too.
We have been exporting trucks and construction machinery to many countries across the world. The products that we offered have attained many certifications, such as: ISO9001, ISO14001, CE, EU, GOST and enjoy a high reputation for their quality and competitive price.
If you want to know more detials about our products,please contact me.Thank you.
