Product name: 4CH 5A Rail EXP Sitch Controller
Model No.: LYE410D
1. Technical Parameters
Input power |
AC100-240V |
Output |
each current is 5A |
| Communication protocol | EDX/DMX-51 |
| Working temperature | -20-60 degree |
| Installation | 35mm rail |
| Signal connection | 4pin green terminal station 5mm |
| External dimension | L186*W92.06*H61mm |

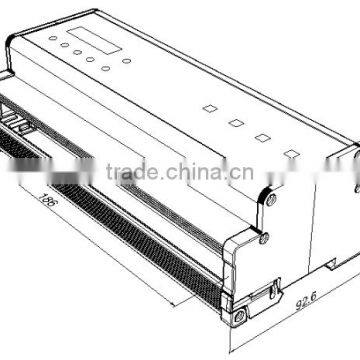

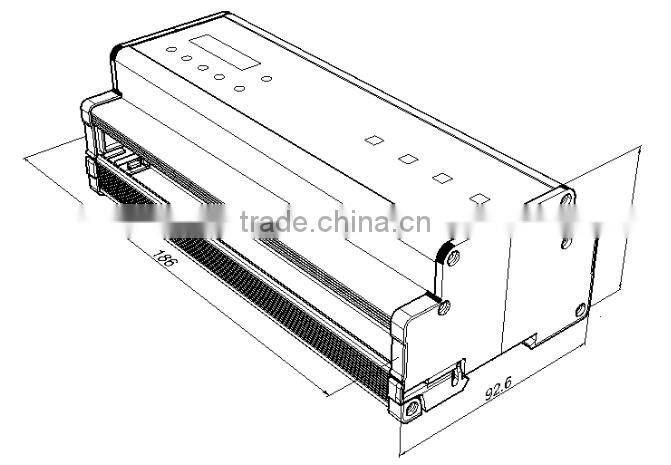

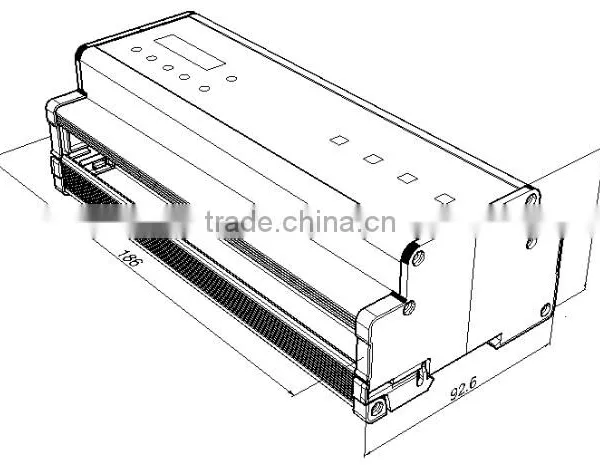

2.External dimension

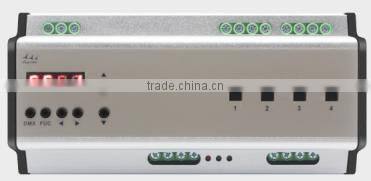

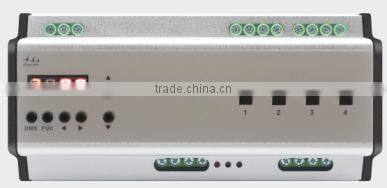

3.Key Interface Instructions
serial number |
function |
Instructions |
1 |
function key |
FCN DMX |
2 |
Digital display screen |
display setting or output Parameters |
3 |
circuits switch |
ON-circuits forced open,off-circuits forced close |
4 |
the power input port |
AC power input terminal station(100-240V) |
5 |
output port |
4 circuits AC power output terminal station |
6 |
input DMX/EDX connector |
connect D+and D- signal line |
7 |
Power light |
When power on ,the power light bright |
8 |
DMX communications light |
Often off, extension and host in communication, helight flash |
9 |
output DMX/EDX connector |
connect with another extension to input DMX connector |
4.Operation process
4.1 Setting DMX address
Press “DMX”, can adjust the DMX IN starting circuitAs picture,set 5 as DMX starting address .
4.2 Check current output values for circuits
4.3 Regional Setting
4.4 Scenario editing store and adjust
