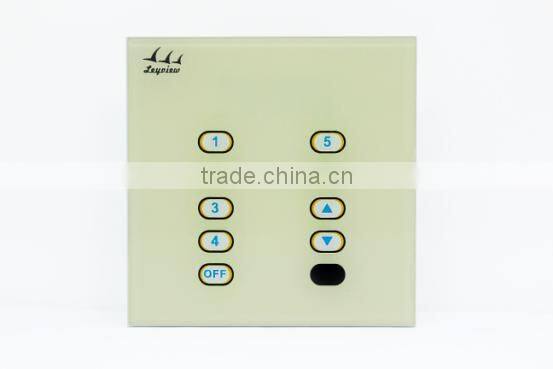

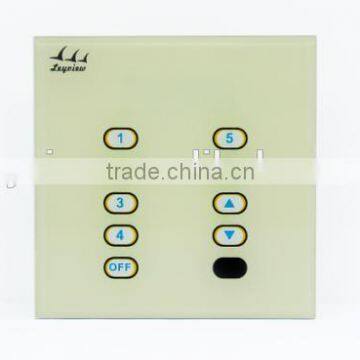

Product name: DMX 10 keys touch panel
Model No.: LYE110T
General control system touch control panel with EDX series dimmers. Using glass panel design, high precision capacitive touch control chip, increase the sensitivity of the touch, reduce triggered by mistake. Appearance is beautiful, fashion
1. Technical parameters
| Working temperature | -20-60℃ |
| Working voltage | DC14-24V |
| Net weight | 100g |
| Gross weight | 130g |
| External dimension | L86*W86*H34mm |
| Packing size | L122*W85*H42mm |
| Output current | less than 8A |
| Output power | 12v<144w,24v<288w |
| Communication protocol | EDX(RS-485) |

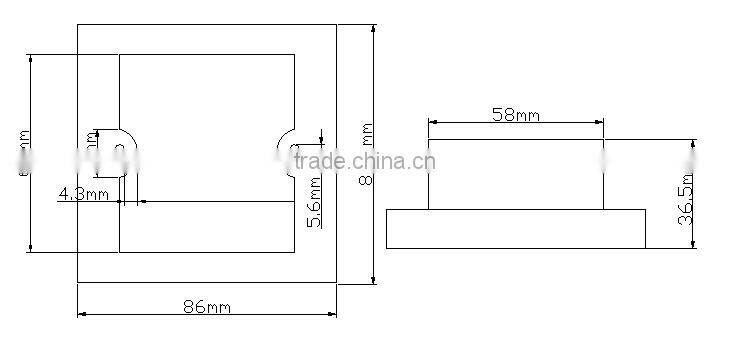

2. External dimension

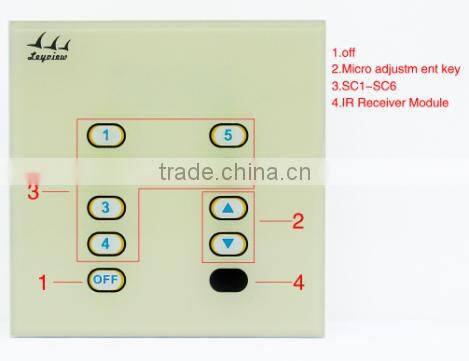

3. Key instructions

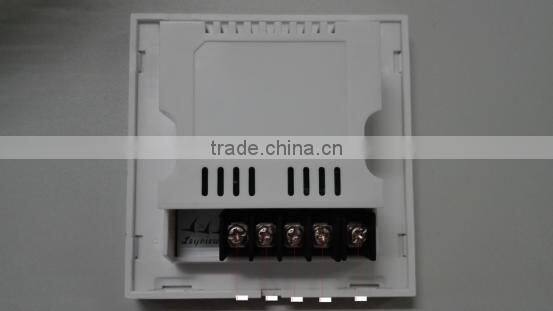

4. Interface description
4.1 GNC,B,A is EDX output
4.2 V+,V- is DC power output
5.Operation instruction
5.1 Connection line well
5.2 Power on,the default on electricity control single area, area number is 1
5.3 1-6 control to Send scene command control
5.4 Short press OFF to send scene command
5.5 Short press up and down to adjust light brightness
5.6 Long press off to enter or exit,the region setting mode
5.7 In the region setting mode:
5.7.1 Up and down to set the size of region number
5.7.2 6 Is confirm button ,when the region number confirmed ,then touch 6 to confirm and store.If store more region ,then can control more .At most control 9 region
6. Assembly instruction
Leyview (Shenzhen) Intelligent control co., Ltd. is a lighting control system and intelligent products based brand company, committed to the development and production of control system, to provide professional lighting control systems and solutions. In the field of intelligent control to their own core technology, build Leyview brand.
We always adhere to the "brand management as the core" concept, customized new sales model, management and price system; Adhere to the "mutual benefit and win-win" approach and long-term friendly cooperation between distributors, application in such a way, consistent brand building.
Leyview is a group of geese flying in the sky, we share a common goal, with the help of along the way with each other better forwarder the flight.
The competitive advantage of product line:
Question 1: Are you a factory or a trading company?
Answer: We are a factory.
Question 2: What's the main business of Leyview?
Answer: Leyview committed to the development and production of control system, to provide professional lighting control systems and solutions.
Question 3: What' s the main products of Leyview?
Answer: We focused on streetlight lighting control system(Zigbee/PLC/RS-485), general control system(DMX) and commercial lighting control system(DALI).
Question 4: What Leyview will do if we have problems after receiving your products?
Answer: Our products have been strictly inspected before shipping. Once you receive the products you are not satisfied, please feel free to contact us in time, we will do our best to solve any of your problems with our good after-sale service.
Question 5: How about your sales model?
Answer: We establish the brand as the foundation, with the constant expansion of the brand influence, distributors will replace the ordinary sales model of the market as our main sales channels.
