AC Power rail 4CH 5A high quality dmx512 light controller
- 10000 Piece / Pieces per Month
- shenzhen
- SP107E Programmable RGB APP Music Led Pixel Light Stripe Controller for WS2812 WS2801 Dream Color Led Strip
- Gledopto Pro 5 IN 1 ZigBee and 2.4GHz RF Controllable LED Receiver GL-C-001P 12V-54V
- Philips SES LSM1010 Occ PIR WH
- Smart Home Zigbee Remote Control Led Bulb Light Controller Zigbee Remote Switch
- Remote Control Led Bulb Light Controller Zigbee Remote Switch
- Remote Control Led Bulb Light Controller Zigbee Remote Switch
Product Details
Place of Origin: | Guangdong, China | Brand Name: | Leyview | Model Number: | LYFEF05D |
Type: | Manual Switch | Max. Load Power: | 4800W | Voltage: | Other, AC100-240V |
Product Description

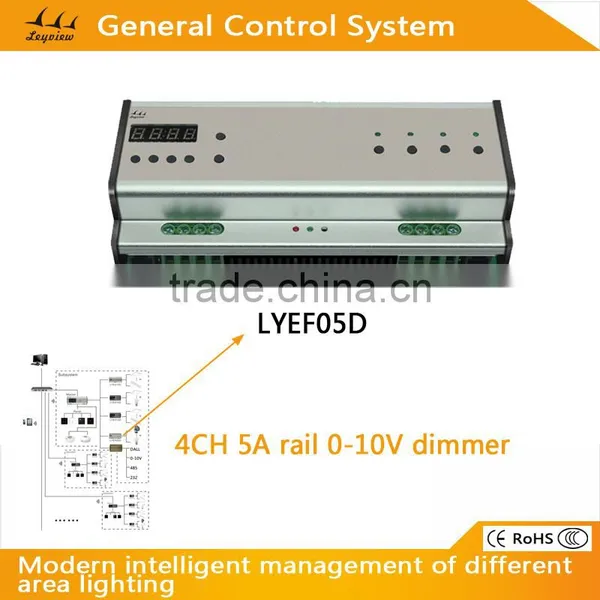

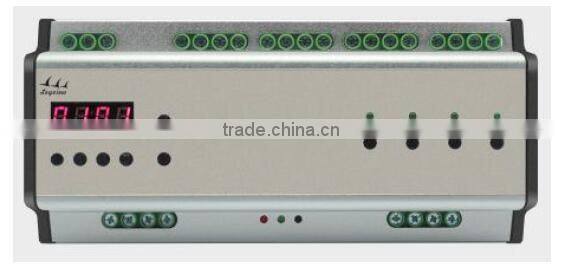

Product name: 4CH 5A Rail 0-10V Dimmer
Model No.: LYEF05D

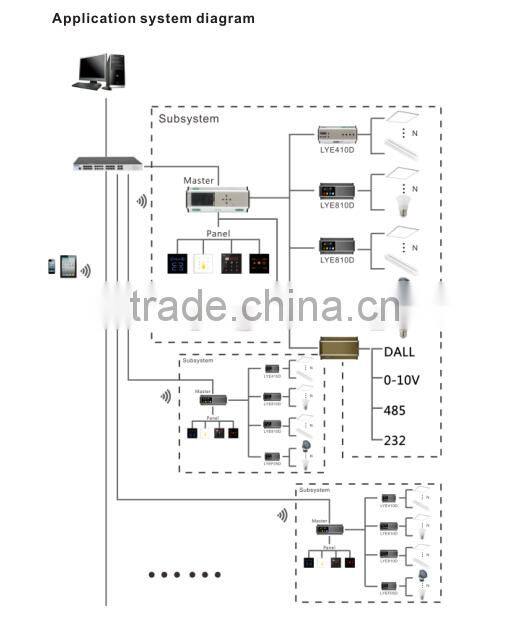

1. Summarize of the product
The product is our company general lighting control system of 0 ~ 10 v dimmer extension, the
extension support two kinds of agreement, can output 4 circuit, per circuit includes a set of AC
output power and a set of DC 0 - 10 v analog output, the extension receives the widespread
adoption of international DMX - 512 standard protocol, DMX control signal can be converted into 0 ~
10 v analog voltage signal to drive leds, can control of extension set single zone and more zone.
Support compatible with yong Lin EDX protocol, with software and control panel.
2. Rohs rgb led Controller Technical Parameters
2.1 Input power:AC100-240V
2.2 Output:each circuits 5A
2.3 Communication protocol:EDX/DMX-51
2.4 Working temperature:-20-60℃
2.5 Working power consumption :<2W
2.6 Installation: 5MM rail
2.7 Signal connector : 4 PIN Green terminal station 5.0mm
2.8 Output: 4 circuits PWM common-cathode,4 circuits 0-10V
2.9 External dimension:186(W)×92(H)×61(D)mm
Serial No. | Function | Instructions |
1 | power input port | the AC power input terminal (100-240) |
2 | Dc output port | the DC output terminal(0-10V) |
3 | ac power | 10V) 3 ac power the AC power output terminal |
4 | function key | FCN DMX |
5 | DMX/EDX connection port | Connection D + and D - signal lines |
6 | Power light | When power on ,the power light bright |
7 | DMX communications light | Often off, extension and host in communicat ion,the light flash |
8 | Real-time output button1 2 3 4 | by key real-time control 0 ~ 10 v output |
9 | Digital display screen | the display Setting the parameters |
3. Basic operation methods
3.1 Setting DMX address
press “DMX”at the same time to press , can adjust the DMX IN starting
circuit. As picture, set 1as DMX starting address
3.2 Check current output values for circuits fo rohs controller wifi
In the main interface press button, can check circuit output value, can
see the top two in flashing. Press right key, so you can switch to dimming output editor,
behind two LED digital tube in flashing, press [DMX ]exit back to the main interface.

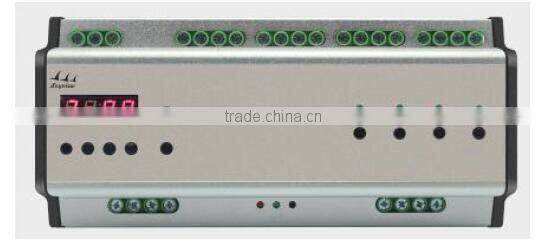

As picture, the second circuit is 99.
3.3 Regional Setting
For EDX protocol, the user must be set before using equipment regional code.The code
is divided into two parts: the first part is the regional , the second part number as the
starting circuit.
Press the function keys ,adjusted to the function of the regional setting, at that time the
top two LED digital tube flashes , press key to modify the current
regional number. Press right/left keys so you can switch to the adjustment of the starting
circuit, at this stage, you will find that behind two numbers in the flashing, at the same
time press key can modify the starting circuit. As picture :the regional
is 1,the starting circuit is 1.
4. Scenario editing store
Scenario editing is finished, press the DMX key,then press [1 ]key, can save
the current output to scenario 1.
The other scenario save like this:
SCENE2:[DMX]+[2]
SCENE3:[DMX]+[3]
SCENE4:[DMX]+[4]
SCENE5:[DMX]+[FCN]+[1]
SCENE6:[DMX]+[FCN]+[2]
5. Attention matters
5.1 Please do not install the controller in a closed or high pressure, high magnetic field area.
5.2 In order to reduce the risk of short-circuit fire and device damage, please make sure the right connection
5.3 To ensure the installation in a ventilation area to ensure the right temperature
5.4 Check whether the voltage and the power supply is matching the controller
5.5 Before power on, please check whether the circuit is properly connected, and instrument
test whether there is a short circuit
5.6 When there is a problem, please don't open the shell of the controller optionally.
5.7 This manual is only applicable to this type controller, if any updated without prior notice
]]
