4 CH 20A EXP Rail Led Switch Controller DMX 512 Control System

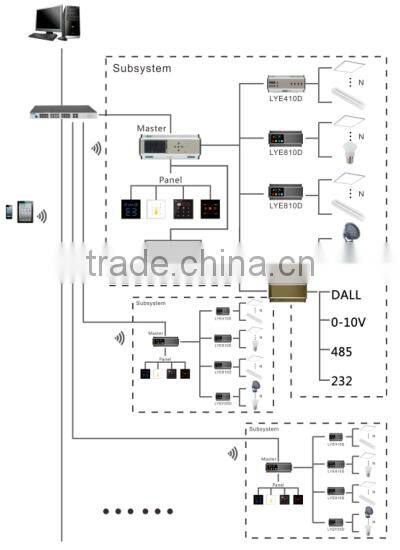

General control system is a kind of intelligent control system that corresponds with  the lighting control of hotel lighting, building lighting and other indoor and outdoor scenes,the whole design scheme is based on humanized operation and personal principles. Each part of the system can work both independently control and set up various combinations of logical relationships in order to achieve a wide range of centralized and decentralized control; Through the computer network of the whole system monitoring, detection of the various lighting subsystem, achieve linkage control with Dali system, DMX system, control system, RS-485 bus and TCP / IP, and can be extended to intelligent control of the entire home or commercial systems.

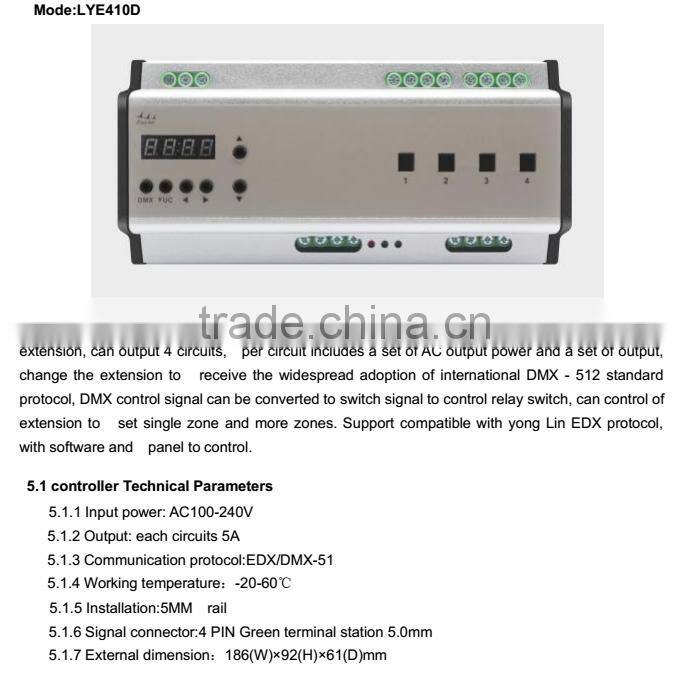

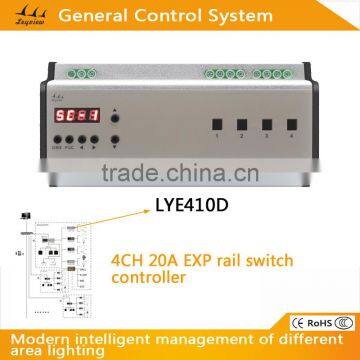

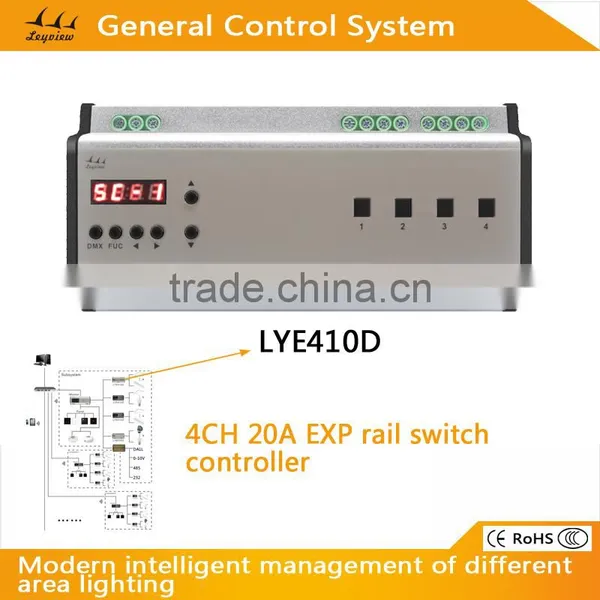

Product name: 4 CH 20A EXP Rail led Switch Controller DMX 512 Control System Model No.: LYE410D

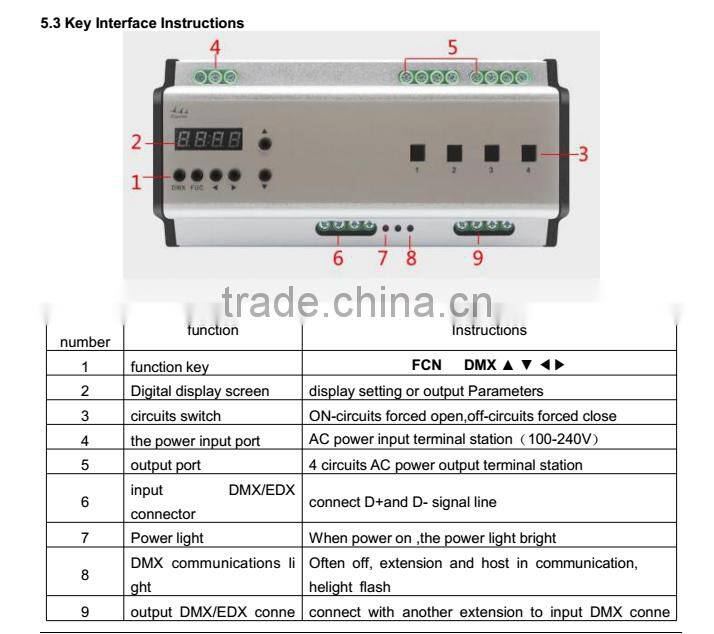

Switch Controller(4/8/12CH)

Model:LYE410D

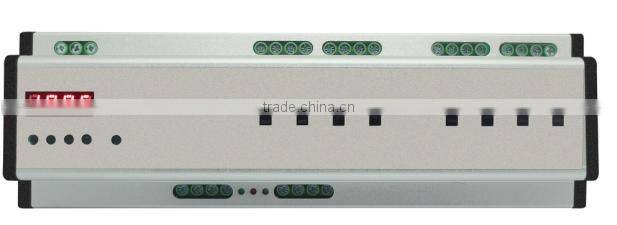

Model:LYE810D

1. Technical Parameters:

Working temperature: -20-60℃

Power: AC100-240V

Output: 20A/CH

Protocol: GCY/DMX-512

Dimension: 186 * 92.6 * 61mm/275 * 92.6 * 61mm/365 * 92.6 * 61mm

Installation method: 35mm guide rail

Signal connector: 4 pin green terminal

2. Features:

1. Magnesium alloy casing, anti-static, anti-electrical fire, longer life.

2. Rail installation, simple operation, friendly interface.

3. Each device can be directly set the scene, the timing, zoning, no external equipment.

4. Built-in power, each device independently run offline.

5. Set to open multi channel delay time (0.1-10 seconds) / off, prevent the current impact.

6. Up to 99 zones, applicable to all types of places.

7. Each channel can be a separate mandatory switch and intelligent control.

8. External control panel, work independently or synchronously function.
