Product Description



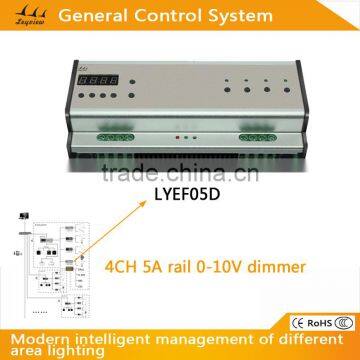

Product name: 4CH 5A Rail dmx led controller

Model No.: LYEF05D

 High quality and huge capacity 4CH 5A rail dmx 512 light controllerHigh quality and huge capacity 4CH 5A rail dmx 512 light controller

















































































1. Summarize of the product

The product is our company general lighting control system of 0 ~ 10 v dimmer extension, the
extension support two kinds of agreement, can output 4 circuit, per circuit includes a set of AC
output power and a set of DC 0 - 10 v analog output, the extension receives the widespread
adoption of international DMX - 512 standard protocol, DMX control signal can be converted into 0 ~
10 v analog voltage signal to drive leds, can control of extension set single zone and more zone.
Support compatible with yong Lin EDX protocol, with software and control panel.





 2.Technical Parameters

Input powerAC100-240V
Outputeach circut 5A
Communication protocolEDX/DMX-51
Working temperature-20-60degree
Working power consumption less than 2w
Installation5mm rail
Signal connector4 PIN Green terminal station 5.0mm
Output: 4 circuits PWM common-cathode4 circuits 0-10V
External dimension186(W)*92(H)*61(D)mm

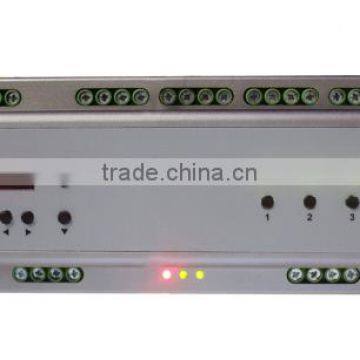

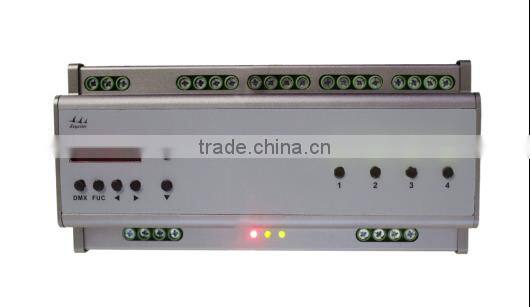

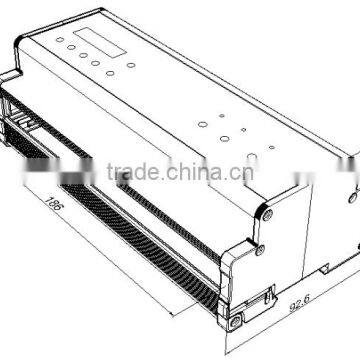

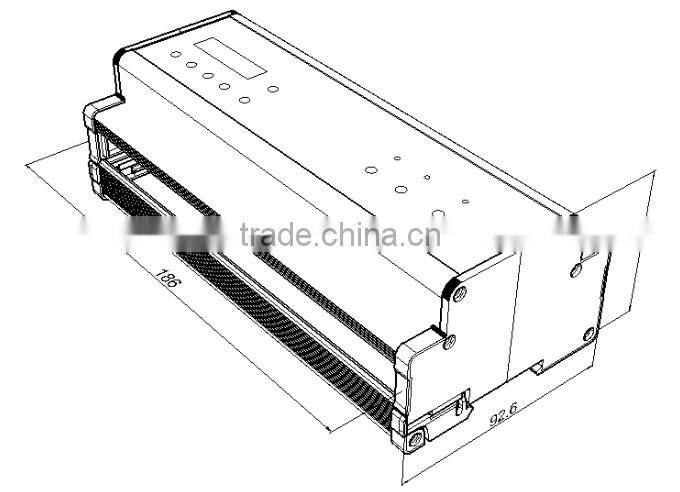

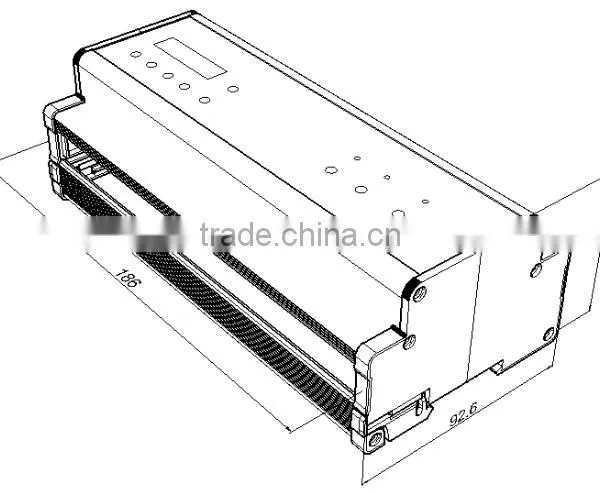

3. External dimension

High quality and huge capacity 4CH 5A rail dmx 512 light controller



High quality and huge capacity 4CH 5A rail dmx 512 light controller

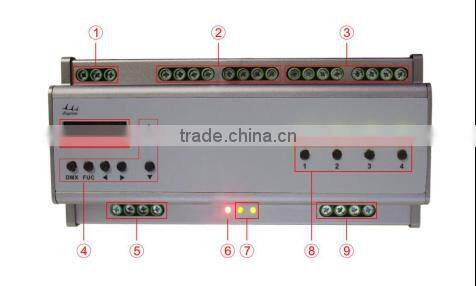

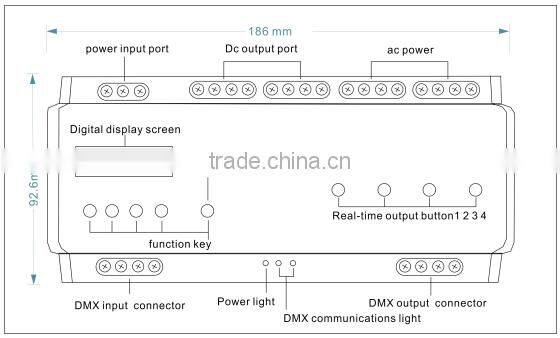

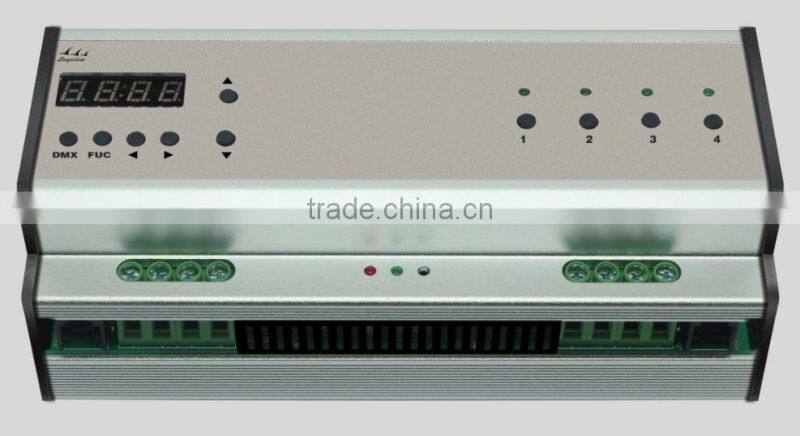

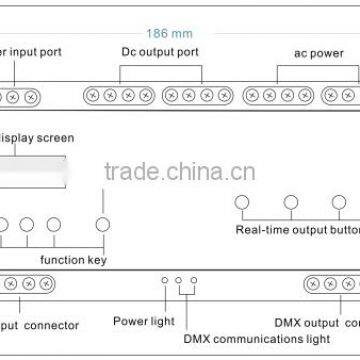

4. Key Interface Instructions

High quality and huge capacity 4CH 5A rail dmx 512 light controller

Serial

No.

FunctionInstructions
1 power input portthe AC power input terminal (100-240)
2 Dc output portthe DC output terminal(0-10V)
3 ac power10V)
3 ac power the AC power output terminal
4function keyFCN DMX High quality and huge capacity 4CH 5A rail dmx 512 light controller
5DMX/EDX connection portConnection D + and D - signal lines
6Power lightWhen power on ,the power light bright
7DMX communications lightOften off, extension and host in communicat
ion,the light flash
8Real-time output button1 2 3 4by key real-time control 0 ~ 10 v output
9Digital display screenthe display Setting the parameters





5. Basic operation methods

5.1 Setting DMX address

press “DMX”at the same time to press High quality and huge capacity 4CH 5A rail dmx 512 light controller, can adjust the DMX IN starting
circuit. As picture, set 1as DMX starting address

High quality and huge capacity 4CH 5A rail dmx 512 light controller



5.2 Check current output values for circuits fo rohs controller wifi
In the main interface press High quality and huge capacity 4CH 5A rail dmx 512 light controller button, can check circuit output value, can
see the top two in flashing. Press right key, so you can switch to dimming output editor,
behind two LED digital tube in flashing, press [DMX ]exit back to the main interface.
As picture, the second circuit is 99.

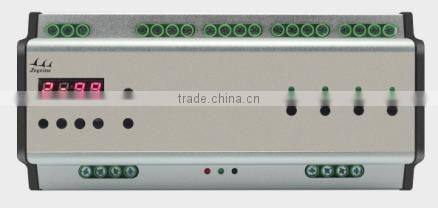

High quality and huge capacity 4CH 5A rail dmx 512 light controller

5.3 Regional Setting
For EDX protocol, the user must be set before using equipment regional code.The code
is divided into two parts: the first part is the regional , the second part number as the
starting circuit.
Press the function keys ,adjusted to the function of the regional setting, at that time the
top two LED digital tube flashes , press High quality and huge capacity 4CH 5A rail dmx 512 light controllerkey to modify the current
regional number. Press right/left keys so you can switch to the adjustment of the starting
circuit, at this stage, you will find that behind two numbers in the flashing, at the same
time press High quality and huge capacity 4CH 5A rail dmx 512 light controllerkey can modify the starting circuit. As picture :the regional
is 1,the starting circuit is 1.

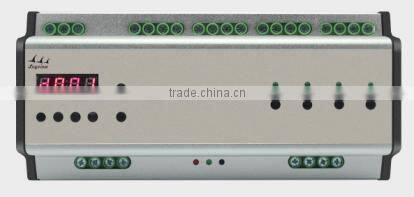

High quality and huge capacity 4CH 5A rail dmx 512 light controller
