Product name: Centralized Manager for dmx 512 system
Model No.: LYE100
1. Structure of the system
1. System Summary
General control system is a kind of intelligent control system that corresponds with the indoor and outdoor scene lighting control ,like hotel lighting and building lighting control. The whole design scheme is based on operation humanized and personalized principle. The system can control all the lighting system by computer network, monitor the current operating state of each lighting subsystems, achieve linkage control with DALI system, DMX system, multimedia central control system,485 bus and TCP/IP. At the same time it can be extended to the intelligent control of the entire home or commercial systems.
2.Technical parameters
| Working temperature: | -20-60℃ |
| Working voltage: | AC90-260V |
Working consumption: | min5.7w-max6.4w |
Display resolution: | 400*240 |
Control mode: | resistive touch and buttons |
Input: | EDX signal |
Output | DMX512 signal |

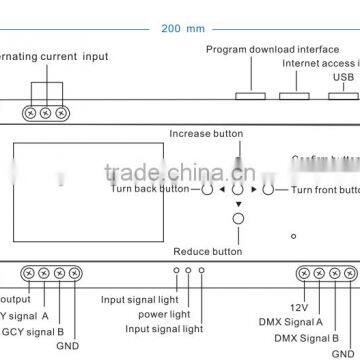

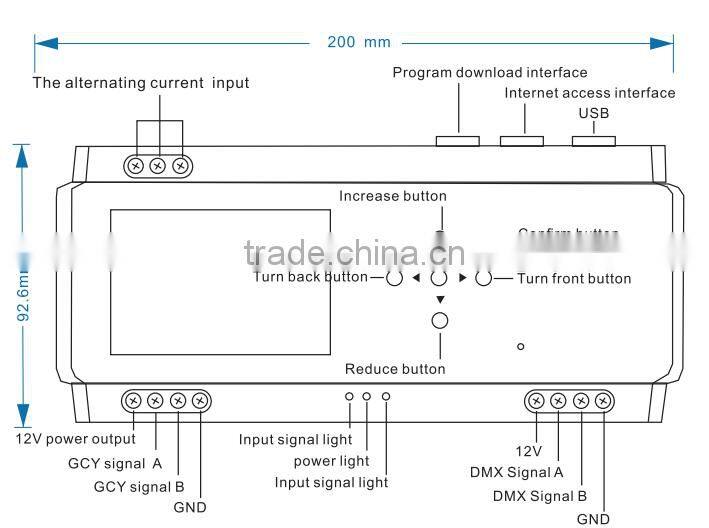

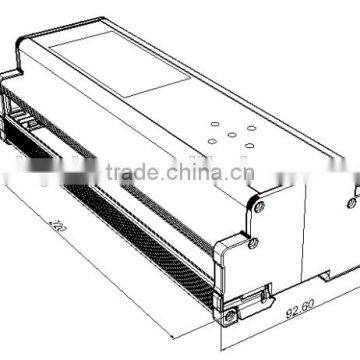

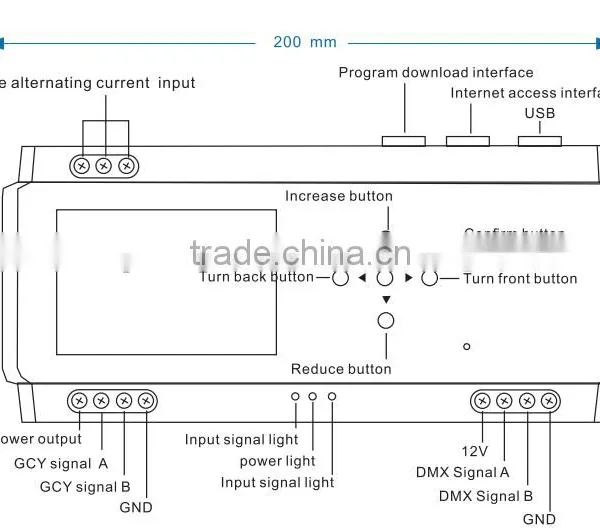

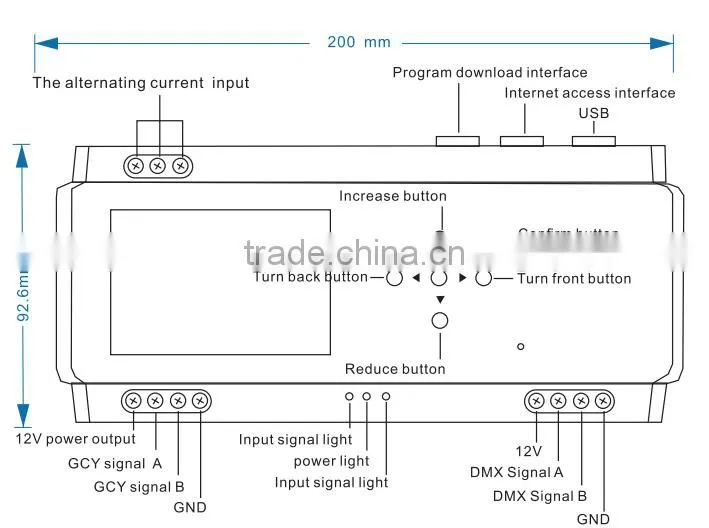

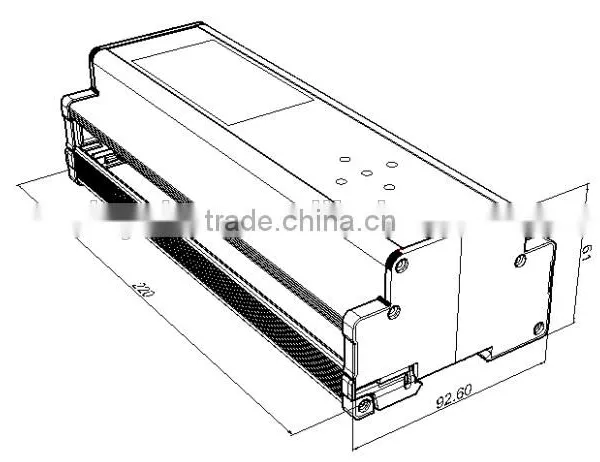

3. External dimension

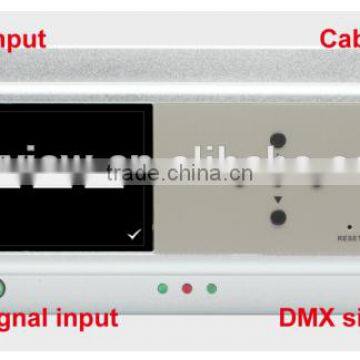

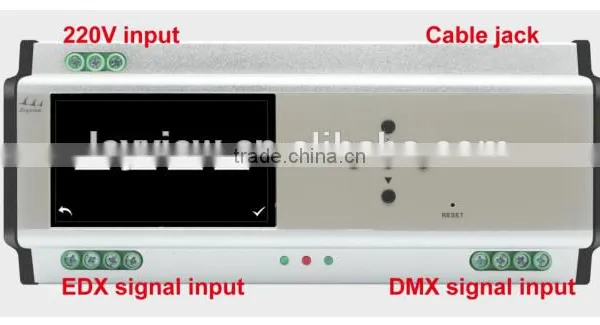

4.Interface Specifications
| No. | Founction | No. | Function |
1 | current input | 12 | Input signal light |
| 2 | current input | 13 | power light |
| 3 | current input | 14 | Input signal light |
| 4 | 12V power output | 15 | Increase button |
| 5 | EDX signal A | 16 | Reduce button |
| 6 | EXD signal B | 17 | Turn back button |
| 7 | GND | 18 | Turn front button |
| 8 | 12V | 19 | Confirm button |
| 9 | DMX signal A | 20 | Program download interface |
| 10 | DMX signal B | 21 | Internet access interface |
| 11 | GND | 22 | USB |
