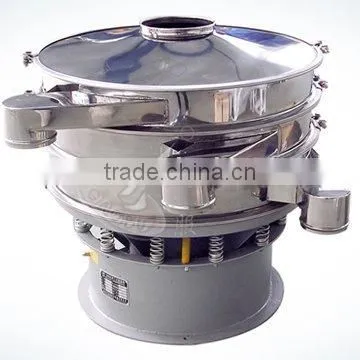

Professional carbon fiber vibrating sieve
-------It usually used in the screenning process for carbon fiber,at 1-20 mm.
Principle of the structure
S49-A series rotary vibrating screen use upright motor as the source of vibration,equipped eccentricity hammer on the both sides of motor ,change circumrotate to level, upright and incline movement, then pass these three movement to the surface of the screen.Adjust the phasic angle on the both sides of the top and bottom to change the movement orbits of the surface screen.
S49-A series three- d rotary vibrating sieve is designed for accurate grading or sizing of wet and dry materials up to five fractions in one operation. It benefits from major advances in sieving technology providing large improvements in sieving accuracy, capacity, noise levels and upgradeability compared with traditional spring suspension separators.
See the different options available
Industries served by the vibrating sieve include:
Food - Food ingredients, confectionery, chocolate, etc.
Chemicals - Chemical powders or liquids
Metals - Metal powders, alloys, etc.
Pharmaceuticals - Pharmacy powders, active powders, etc.
Ceramics - Ceramic powders, kaolin clay, etc.
Environment - Treating wastewater for clean disposal, etc.
Enjoy the many benefits this separator can offer you
High capacity - Real improvements are achieved over conventional round separators in terms of increased capacity
Greater accuracy - Full material flow on all 5 sieve decks gives accurate grading on all meshes
Ease of operation and lower maintenance - The design of the vibrator housing allows for a standard motor being used rather than a vibratory type, keeping maintenance costs to a minimum, low noise, high efficiency, need only 3-5 minutes to rapidly replace the screen.
Technology parameters
Model | Effective Diameter for sieving surface(mm) | Effective sieving area(m2) | Sieving mesh specification | Layers | Power(KW) | |
Vibration motor | Common motor | |||||
S49-400 | 340 | 0.0907 | 2-500 mesh | 1-5 | 0.18 |
|
S49-600 | 540 | 0.2289 | 2-500 mesh | 1-5 | 1.25- | 0.75 |
S49-800 | 730 | 0.4183 | 2-500 mesh | 1-5 | 1.55 | 1.1 |
S49-100 | 900 | 0.6359 | 2-500 mesh | 1-5 | 1.1 | 1.5 |
S49-1200 | 1100 | 0.9499 | 2-500 mesh | 1-5 | 1.1 | 1.5 |
S49-1500 | 1400 | 1.5386 | 2-500 mesh | 1-5 | 1.5 | 2.2 |
S49-1800 | 1700 | 2.2687 | 2-500 mesh | 1-5 | 4 | 3.0 |
S49-2000 | 1886 | 2.7922 | 2-500 mesh | 1-5 | 4 | 3.0 |
Product details

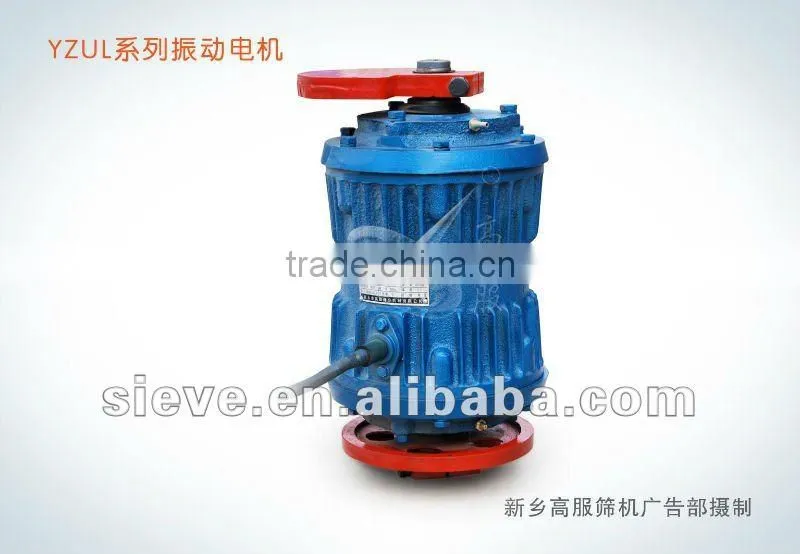

Product special flange motor

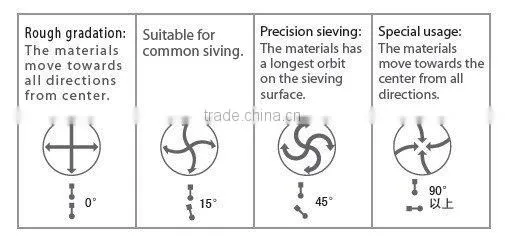

Motor principle display
ISO9001:2008 certificate
If youhave any questions to our products , please feel free to contact us. At the same time, we always welcome you to visit our factory.
