GB-BF20010 Mask Synthetic Blood Penetration
GB-BF20010 Mask Synthetic Blood Penetration Tester is suitable for the resistance of masks to the penetration of synthetic blood under different levels of the test pressure.
The mask material was tested with synthetic blood under continuously applied pressure, and the penetration of synthetic blood on the material was visually checked.
GB 19083-2010
Item | Technical Parameters |
Pressure point | 3kpa,5kpa 7kpa, 14kpa ,20kpa |
Sample size | 75mm × 75mm, pressure area: 28.27 square centimeters |
Power supply | AC220V,50Hz,100W |
1. The instrument uses a gas source that can provide (20 ± 1) kPa pressure to continuously pressurize the sample without being limited by the space of the test site.
2. The instrument has a pressure gauge to display the pressure, the pressure can be adjusted.
3. Use pressurized medium: compressed air.
4. The special stainless steel penetrating test slot ensures that the sample is firmly clamped, and the synthetic blood is prevented from splashing around.
5. Square metal barrier net: open space ≥50%; bending ≤5mm at 20kPa.
6. Digital display timer, accuracy ± 1 second.
7. The instrument has a clamp that can generate 13.5Nm torque.

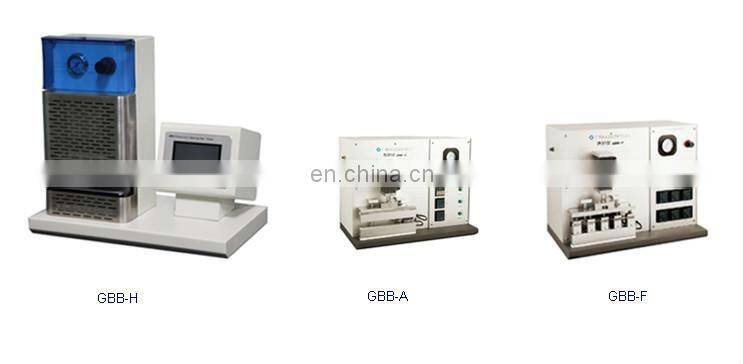

item | GBB-H | GBB-A | GBB-F |
Heat sealing temperature | 20~200°C | 20~300°C | 20~300°C |
Temp control precision | 0.1°C | 1°C | 1°C |
Heat sealing time | 0.01s~99.99h | ||
Heat-sealing pressure | 0.05~0.8Mpa | 0~0.8Mpa | 0~0.8Mp. |
Compressed air |
| 8kg/cm2 | 8kg/cm2 |
Heating cover | 48x10mm smooth | 300mm×5.5mm smooth | 45×10mm smooth x 5pcs |
Heating mold | Dual heating | ||
Power supply | 220V, 50HZ | ||
1. One year guarantee and all lifetime techinical support
2. USA, Australia Aisa Local agent for service
3. Speedy reply, 12hrs response to customer questions
4. Software free update
5. Minor maintenance ---parts ship within 24 hrs
6. Major maintenance---Technical will be sent within 15 days
About GBPI
GBPI is a professional manufacturer focused on developing
and producing packaging material test instruments. Founded in 2002, the company has received IOS9001 certification and reco gnized as high-tech enterprise and software enterprise by national authority. We hold numerous technology patents and software certificates from the national authority, and gained awards for technological progress.
