Rotary Vibrating Screen Machine for chemical powder
1.Brief Introduction
S49 series rotary vibrating screen has three main applications:classification or sieving; solid-liquid separation or filter; washing and cleaning.
It handles dry/wet screening of particles from 30mm down to 500 mesh in size.
Diameter range from 400mm to 2000mm, with single or multiple screening decks up to five .
2.Typical Applications
♦ Dry separation
-Separation of different materials on the basis of their particle shape
-Foods, chemicals, pharmaceuticals, minerals, animal feeds, grains
♦ Dry classification
-Separation of solid particles into precise sized fractions
-Foods, chemicals, minerals and metals, pulp and wood products, pharmaceuticals, fertilizers, abrasives
♦ Solid/Liquid separation
-Dewatering of solids and clarification of liquids
-Foods, chemicals, pulp
♦ Solids classification in liquid medium
-Separation of solids into sized fraction in a liquid medium
-Chemicals, minerals, pulp and paper, ceramics, waste disposal
Food - barley flour, bread crumbs, candies, cereals, coconut shell powder, dried milk, dry potato powder, ground almonds, ground coffee, instant coffee powder, meat meal, nuts, pea grading, powdered cheese, powdered eggs, salt, seeds&grains grading and cleaning, rice bran, soya flour, spices, starch, sugar; fruit juice, syrup.
3.Main Features
♦ Small volume with easy moving
♦ High efficiency with compact structure
♦ Easy operation and maintenance
♦ Long screen life, easy&quick screen cloth exchange
♦ Equipped with anti-blinding device(bouncing balls), as well as dust-proof cover
♦ ISO9001:2008, CE certification
4. How to select a rotary vibration screen
(1) Material to be processed?
(2) Granule size of the materials?(or mesh number)
(3)Moisture content if any?
(4) Granule size proportion if possible to get?
(5) Capacity (tons or kg per hour )
(6) Local power supply(voltage and frequency)
5. More Vibrating Screens Technical parameters
Model |
Effective diameter (mm) |
Effective sieving area(m 2 ) |
Mesh size |
Layer |
Powder(KW) |
|
|
Vibrating motor |
Common motor |
|||||
S49-400 |
Φ340 |
0.0907 |
5-500 |
1-5 |
0.18 |
-- |
S49-600 |
Φ540 |
0.2289 |
5-500 |
1-5 |
0.25 |
0.75 |
S49-800 |
Φ730 |
0.4183 |
5-500 |
1-5 |
0.55 |
1.1 |
S49-1000 |
Φ900 |
0.6359 |
5-500 |
1-5 |
1.1 |
1.5 |
S49-1200 |
Φ1100 |
0.9490 |
5-500 |
1-5 |
1.1 |
1.5 |
S49-1500 |
Φ1400 |
1.5386 |
5-500 |
1-5 |
1.5 |
2.2 |
S49-1800 |
Φ1700 |
22687 |
5-500 |
1-5 |
4 |
3.0 |
S49-2000 |
Φ1886 |
2.7922 |
5-500 |
1-5 |
4 |
3.0 |

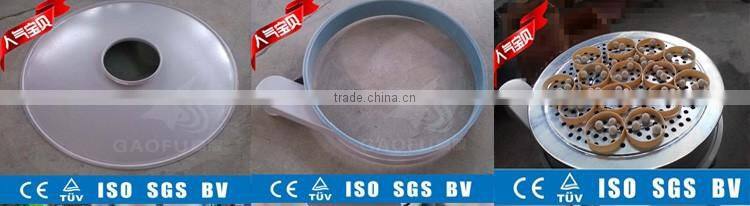

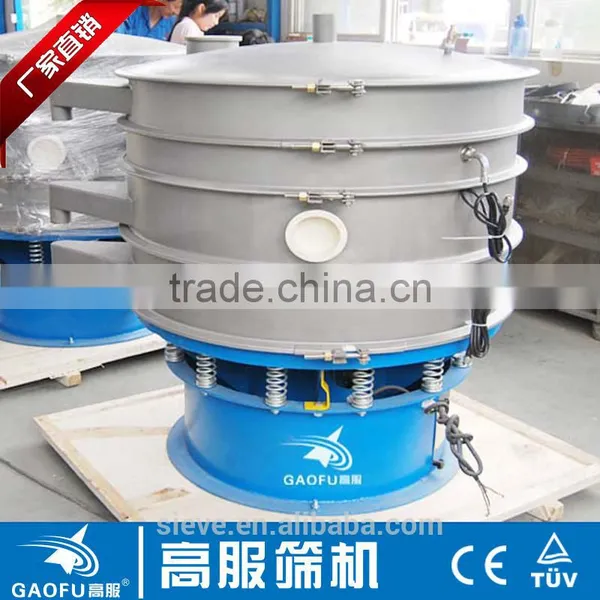

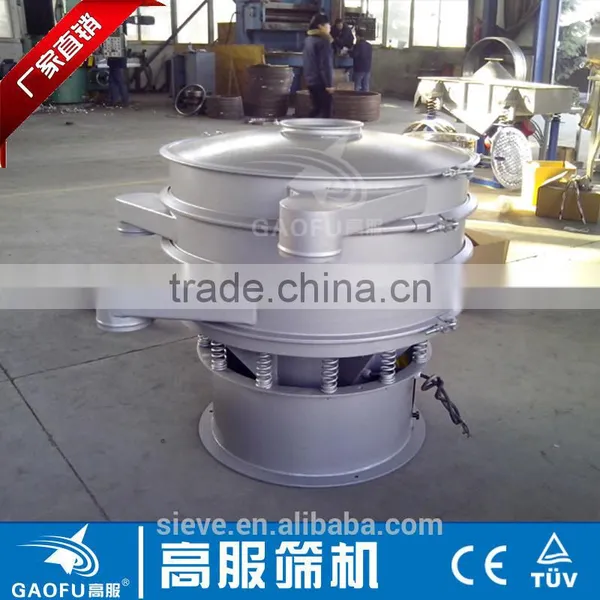

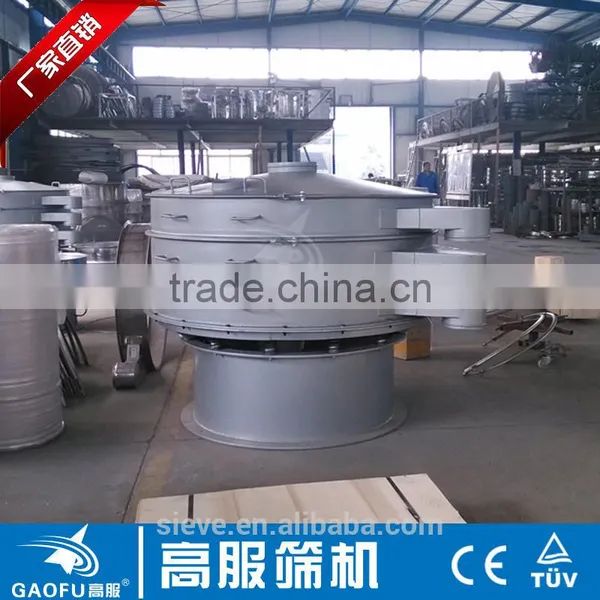

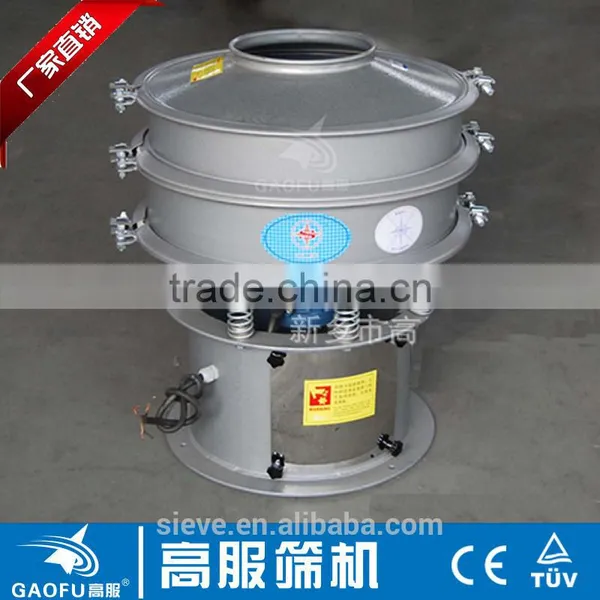

6,Product details

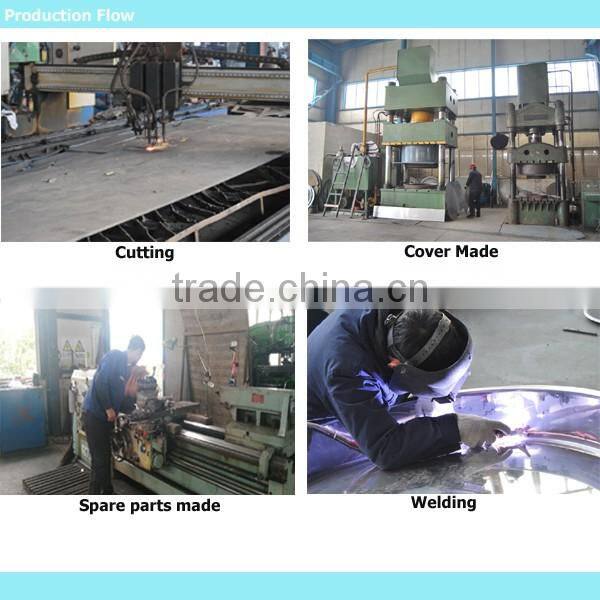

7,Production flow
8,Our factory
