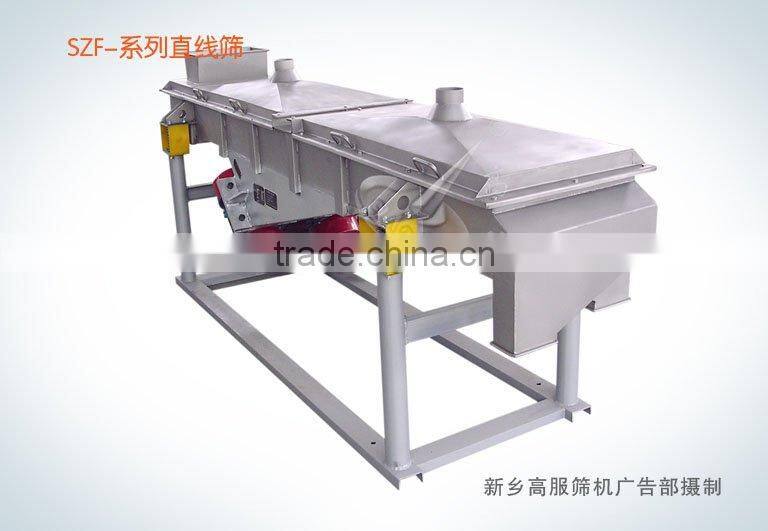

vibrating screen for Recycled PET Chips

FOB Price

USD $400 - $10,000 / Set

1 Set(Min.Order)

Supply Ability 20 Set / Sets per Month
Port Tianjin OR Qingdao
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Type:	Linear	Application:	Other
Place of Origin:	Henan, China	Brand Name:	Gaofu, GAOFU	Model Number:	SZF-525, SZF
Voltage:	220V/380V/415V/450V	Power(W):	0.75kw*2	Dimension(LWH):	90028001500mm
Weight:	1000kg	Certification:	CE ISO	Warranty:	15 Months
After-sales Service Provided:	Engineers available to service machinery overseas

Packaging Details

Wooden case

Product Description

vibrating screen main characteristics:

- vibration is activated by one or two vibrating motors with adjustable out-of-balance force;

- vibration develop in the horizontal and in the vertical plane and can be settled in both directions;

- vibrating motor design allows to adjust easily the counterweight and modify the vibration to find the best way to sieve a product (for gentle screening, long residence times, high throughputs or difficult-to-screen products);

- high screening efficiency both with liquid and solid products;

- vibrating motor are standard and provide reliable power;

- rectangular separators are provided with high quality suspension that virtually eliminates transmitted vibrations;

- screens are easy and fast to change and can be equipped with rubber balls cleaning system;
- built on customer request with carbon steel, stainless steel AISI 304, stainless steel AISI 316;

Model	Size(mm)	Lean angle(°)	Layers	Power(KW)
SZF-520	500*2000	0-7	1-6	2*(0.4-0.75)
SZF-525	500*2500			2*(0.4-0.75)
SZF-1020	1000*2000			2*(0.4-0.75)
SZF-1025	1000*2500			2*(0.4-1.1)
SZF-1030	1000*3000			2*(1.1-1.5)
SZF-1040	1000*4000			2*1.1-1.5
SZF-1235	1200*3500			2*1.1-2.2
SZF-1250	1200*5000			2*1.1-2.2
SZF-1535	1500*3500			2*1.1-2.2
SZF-1560	1500*6000			2*2.2-3.7
SZF-1845	1800*4500			2*2.2-3.7
SZF-2050	2000*5000			2*2.2-3.7
SZF-2260	2200*6000			2*2.2-3.7

Company Profile

Xinxiang Gaofu Machinery Co., Ltd.

Xinxiang Gaofu Sieving Machinery Co., Ltd. specializes in manufacturing vibration screens and vibrating sieves. To solve sieving problems in all fields, we can manufacture all kinds of vibrating screens to meet the different needs of customers.

Thanks to production equipment, strong technical capabilities, improved detection means and strict managing system, we have enjoyed good reputation.
our company has attained ISO9001:2000 certification and CE Certification. Our products sell well throughout China and are exported to North America, West Europe, Southeast Asia and other countries and regions.

Do you want to improve your product quality? Do you want your products to become more competitive? Choosing Xinxiang Gaofu Sieving Machine Co., Ltd.! We will be your friend in the way to success! And you will create a shiny future in 2014!

Please visit our website: www.gaoful.com.

Our tenet: "Honest Service, the Highest Quality".To solve sieving problems in all fields, we can manufacture all kinds of vibrating screens to meet the different needs of customers.
