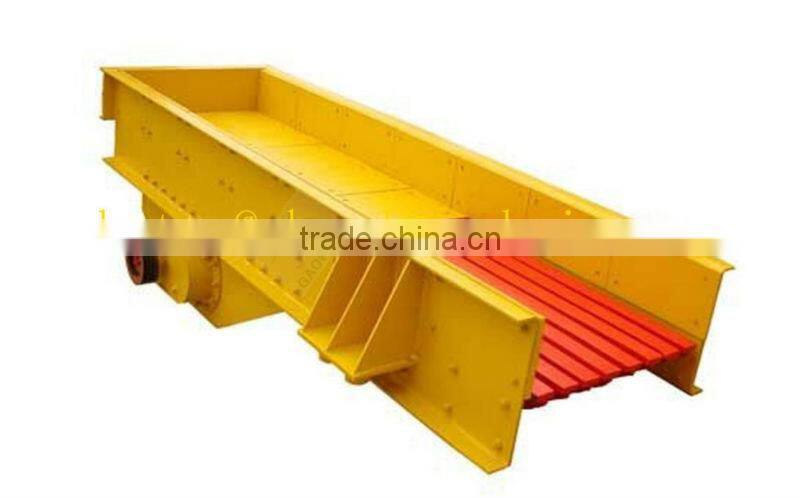

High efficiency vibrating bowl feeder
1.Features of vibrating feeder
1) Vibrating feeder enjoys simple structure, stable vibrating, even feeding, good continuous performance, adjustable excitation force, etc. Its flow rate can be conveniently changed and controlled.
2)Vibrating feeder adopts eccentric block as the excitation source and features low noise, low energy consumption, good adjusting performance, and no material splashing.
3)Closed type vibrating feeder can prevent the pollution of dust.
4)The pressure caused by the material to the groove should be reduced to the greatest extend. The effective discharge opening should be smaller than the one quarter of the groove width. The flow rate should be controlled within 6-18m/min.
5)For feeding materials with a large quantity, a fender with enough height should be installed at the outlet. This fender should not be fixed to the feeder since it will affect the performance of the machine.
2.Application of vibrating Feeder :
Vibrating feeder can feed lump or granulated materials to the other devices evenly and continuously. In sand and gravel production line, the continuous feeding of the vibrating feeding machine helps avoid the blockage at receiving hopper. With easy flow adjustment, low noise and energy consumption, vibrating feeder is applied to crushing and screening production lines on crushing site, in mining, metallurgy, building material, chemistry, mineral processing, and coal industries.

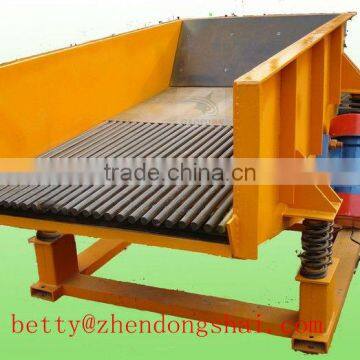

Vibrating feeder structure
Electric Vibrating Feeder Specification:
Model |
Max input size(mm) |
capacity |
motor power |
Installaition Slope |
weight |
Size of Funnel |
GZD-180×80 |
300 |
30-80 |
2×1.5 |
0-10 |
0.8 |
1800×800 |
GZD-300×90 |
500 |
40-100 |
2×2.2 |
0-10 |
1.5 |
3000×900 |
ZSW-380×96 |
500 |
90-100 |
11 |
0° |
3.98 |
3800×960 |
ZSW-490×96 |
500 |
120-240 |
15 |
0° |
5.5 |
4900×960 |
ZSW-490×110 |
580 |
120-280 |
15 |
0° |
5.72 |
4900×1100 |
ZSW-590×110 |
600 |
280-500 |
22 |
0° |
6.13 |
5900×1100 |
Note: This specification is just for reference, any changes are subject to the products.
YZO series Vibrating feeder special motor

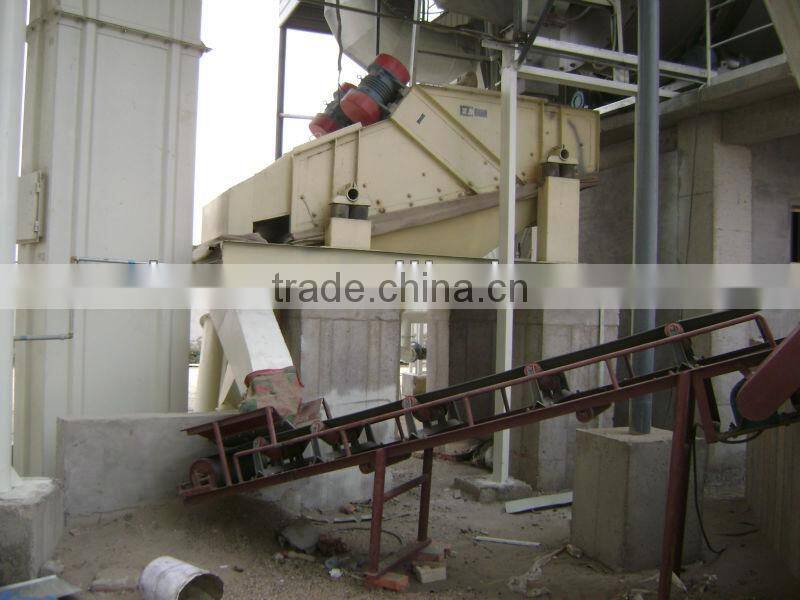

The customer site :
GAOFU company have a perfect after-sales service system and professional technology team to provide customers with prompt and thorough service. Our price are most competitive and reasonable, all order will be supplied within the stipulated period. Awaiting your first inquiry order
Gaofu modern workshop
Our operation priciple is mutual reciprocity and mutual benefit , Intimate service .
