New type oscillating conveyor with BV
- 100 Set / Sets per Month
- Tianjin / Shanghai / Qingdao
- T/T
Product Details
Condition: | New | Power Type: | Electric | Capacity(t/h): | 100-500t/h |
Place of Origin: | Henan, China | Brand Name: | GAOFU | Model Number: | ZG-516-Q235ACarbon steel |
Application: | Ore, stone, rock, coal, sand, construction material, etc | Warranty: | One year |
Packaging Details
make sure meet the export standard ,according to the size of different .
Product Description

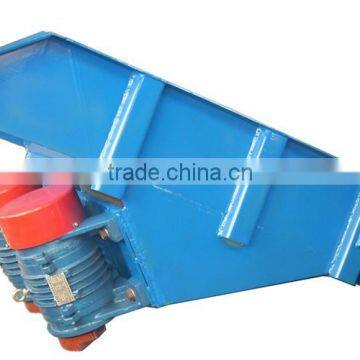

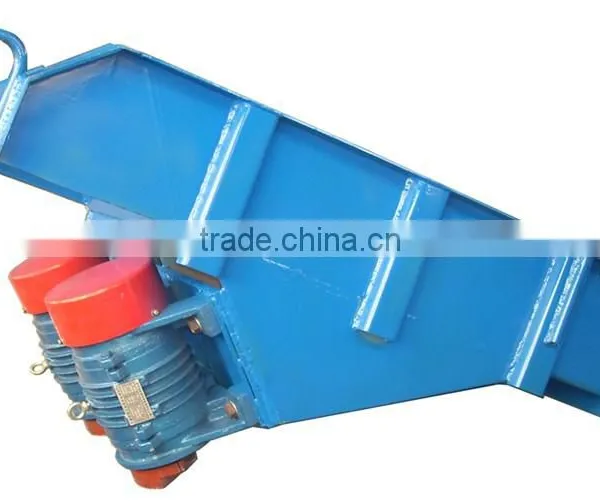

New type oscillating conveyor with BV
New type oscillating conveyor with BV Application
Vibrating Feeder is a kind of linear direction feeding equipment. It features smooth vibrating, reliable operation, long service life and being suitable for feeding. Vibrating feeders are widely used in mining, building-material, silicate andchemical industry in the crushing and screening plants.In the Sand-Stone production line, vibrating feeder can send materials to crusher evenly and continuously and at the same time, it can screen materials roughly.Vibrating feeder can be used in these areas such as metallurgical industry, coal mining industry, mining-selecting, building, chemical and grinding industry, etc.
New type oscillating conveyor with BV Working Principle
Vibrating feeder consists of vibrating frame, spring, vibrator, motor vibrating device and motor. The vibrator is made of two fixed eccentric shafts whose gearsare jogged. When installation, the two gears must be jogged according to the sign. Through drive of the motor, the two eccentric shafts start rotating to producea linear huge power which forces the feeder to vibrate. Through the vibration,the materials will slip and sling on the funnel, moving forward, when the materials pass the screening part, smaller parts will fall down, and avoiding the furthercrushing, so screening purpose can be reached.
Vibrating Feeder structure
YZO series Vibrating Feeder special motor
Electric Vibrating Feeder Specification:
Model | Max input size(mm) | capacity | motor power | Installaition Slope | weight | Size of Funnel |
GZD-180×80 | 300 | 30-80 | 2×1.5 | 0-10 | 0.8 | 1800×800 |
GZD-300×90 | 500 | 40-100 | 2×2.2 | 0-10 | 1.5 | 3000×900 |
ZSW-380×96 | 500 | 90-100 | 11 | 0° | 3.98 | 3800×960 |
ZSW-490×96 | 500 | 120-240 | 15 | 0° | 5.5 | 4900×960 |
ZSW-490×110 | 580 | 120-280 | 15 | 0° | 5.72 | 4900×1100 |
ZSW-590×110 | 600 | 280-500 | 22 | 0° | 6.13 | 5900×1100 |
Note: This specification is just for reference, any changes are subject to the products.
modern office building
GAOFU company have a perfect after-sales service system and professional technology team to provide customers with prompt and thorough service. Our price are most competitive and reasonable, all order will be supplied within the stipulated period. Awaiting your first inquiry order
Company Profile
Xinxiang Gaofu Sieving Machinery Co., Ltd. specializes in manufacturing vibration screens and vibrating sieves. To solve sieving problems in all fields, we can manufacture all kinds of vibrating screens to meet the different needs of customers.
Thanks to production equipment, strong technical capabilities, improved detection means and strict managing system, we have enjoyed good reputation.
our company has attained ISO9001:2000 certification and CE Certification. Our products sell well throughout China and are exported to North America, West Europe, Southeast Asia and other countries and regions.
Do you want to improve your product quality? Do you want your products to become more competitive? Choosing Xinxiang Gaofu Sieving Machine Co., Ltd.! We will be your friend in the way to success! And you will create a shiny future in 2014!
Please visit our website: www.gaoful.com.
Our tenet: "Honest Service, the Highest Quality".To solve sieving problems in all fields, we can manufacture all kinds of vibrating screens to meet the different needs of customers.
