Automatic vibrator feeder machine
It has been applied with the delivery of metallurgy, coal mine, mineral dressing, building material, chemical, grinding, etc.
1. Application of vibrating feeder:
The Shaking Feeder(Vibratory feeder) is used to transfer the large size materials and granular materials from hopper to receiving device uniformly, periodically and continuously in the production flow and to feed materials into the crusher continuously and uniformly also to screen the materials in the sandstone production line. The Shaking Feeder is widely used to match the crushing and sieving equipments in many industries including metallurgy, coal mine, mineral dressing, building material, chemical, grinding, etc.
It feeds materials into the crusher continuously and uniformly also to screen the materials in the coal production line.
2. Working principle of vibrating deeder machine:
There are two eccentric shafts rotating at high speed at the same time from opposite directions, thus the strong centrifugal force is formed. The component forces of centrifugal force along the vibrating direction will always overlap each other, then counteract with that of vertical force from vibrating direction, then exciting force along single direction is formed to drive the feeder vibrate along straight line. When materials are fed into the feeder, they may be thrown up and move like para curve, then fall down. The materials will move forward on the slope surface of the feeder.
3. Characteristics of vibrating feeder machine:
(1) smooth vibration
(2) long service life
(3) low power consumption
(4) easy to adjust
(5) simple structure
(6) light weight
(7) small volume
(8) simple maintenance

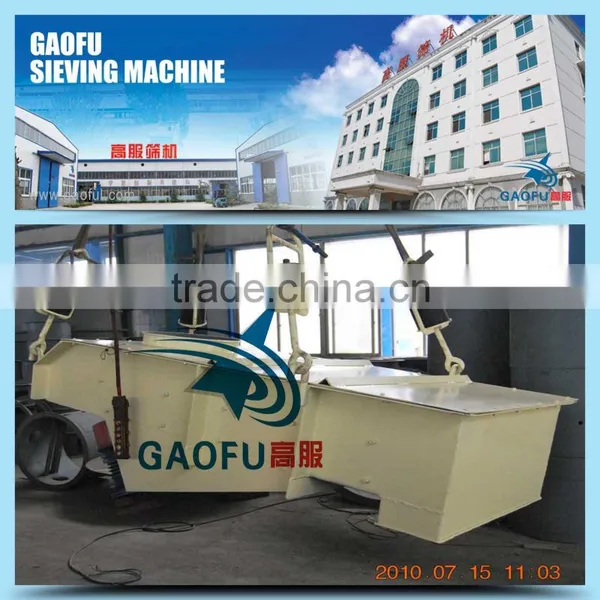

The drawing of the Automatic vibrator feeder machine :
Electric Vibrating Feeder Specification:
Model |
Max input size(mm) |
capacity |
motor power |
Installaition Slope |
weight |
Size of Funnel |
GZD-180×80 |
300 |
30-80 |
2×1.5 |
0-10 |
0.8 |
1800×800 |
GZD-300×90 |
500 |
40-100 |
2×2.2 |
0-10 |
1.5 |
3000×900 |
ZSW-380×96 |
500 |
90-100 |
11 |
0° |
3.98 |
3800×960 |
ZSW-490×96 |
500 |
120-240 |
15 |
0° |
5.5 |
4900×960 |
ZSW-490×110 |
580 |
120-280 |
15 |
0° |
5.72 |
4900×1100 |
ZSW-590×110 |
600 |
280-500 |
22 |
0° |
6.13 |
5900×1100 |
Note: This specification is just for reference, any changes are subject to the products.

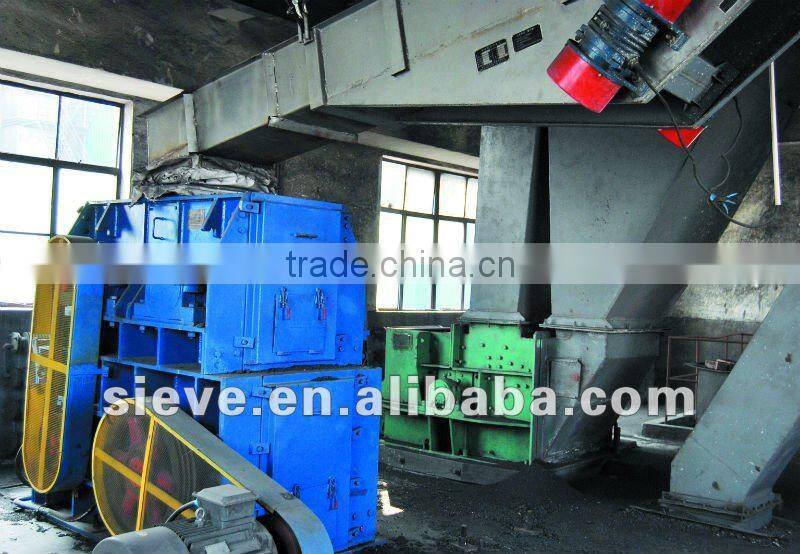

The customer site :
GAOFU company have a perfect after-sales service system and professional technology team to provide customers with prompt and thorough service. Our price are most competitive and reasonable, all order will be supplied within the stipulated period. Awaiting your first inquiry order
