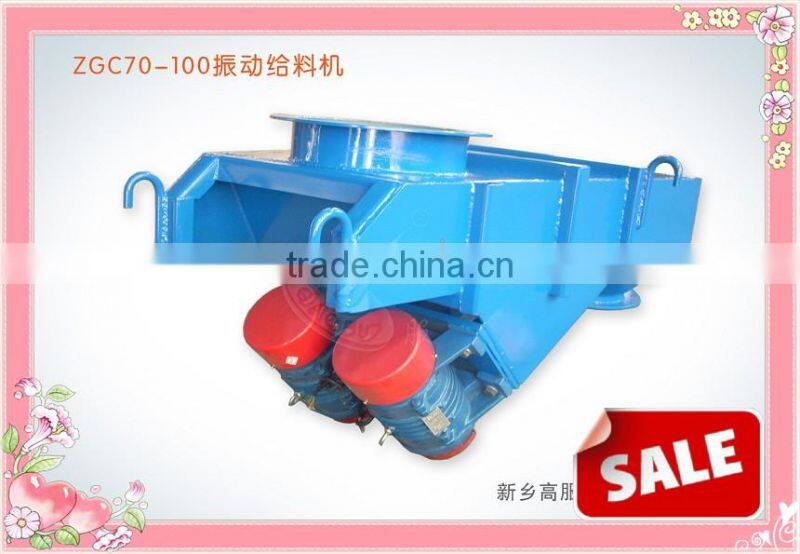

GAOFU Full-closed type vibrator hopper feeder
Application:
Vibrating feeder is a kind of linear direction feeding equipment, which are moved by the vibration of a slightly slanted, flat vibrating surface.
Vibrating feeders are widely used in the crushing and screening plants, vibrating feeder can send bulk materials (pulverized or granulated solids) to crusher evenly and continuously. And at the same time, it can screen materials roughly. Such like: metallurgical industry, coal mining industry, mining industry, building industry, chemical industry, etc.
Working Principle:
Vibrating feeder consists of vibrating frame, spring, vibrator motor, vibrating device . The vibrator is made of two fixed eccentric shafts whose gears are jogged. When installation, the two gears must be jogged according to the sign. Through drive of the motor, the two eccentric shafts start rotating to produce a linear huge power which forces the feeder to vibrate. Through the vibration, the materials will slip and sling on the funnel, moving forward, when the materials pass the screening part, smaller parts will fall down, and avoiding the further crushing, so screening purpose can be reached.
Features:
It features smooth vibrating, reliable operation, long service life and being suitable for feeding.
Technical parameter:
Model |
Max input size(mm) |
capacity |
motor power |
Installation Slope |
weight |
Size of Funnel |
GZD-180×80 |
300 |
30-80 |
2×1.5 |
0-10 |
0.8 |
1800×800 |
GZD-300×90 |
500 |
40-100 |
2×2.2 |
0-10 |
1.5 |
3000×900 |
ZSW-380×96 |
500 |
90-100 |
11 |
0° |
3.98 |
3800×960 |
ZSW-490×96 |
500 |
120-240 |
15 |
0° |
5.5 |
4900×960 |
ZSW-490×110 |
580 |
120-280 |
15 |
0° |
5.72 |
4900×1100 |
ZSW-590×110 |
600 |
280-500 |
22 |
0° |
6.13 |
5900×1100 |
Note: This specification is just for reference, any changes are subject to the products.

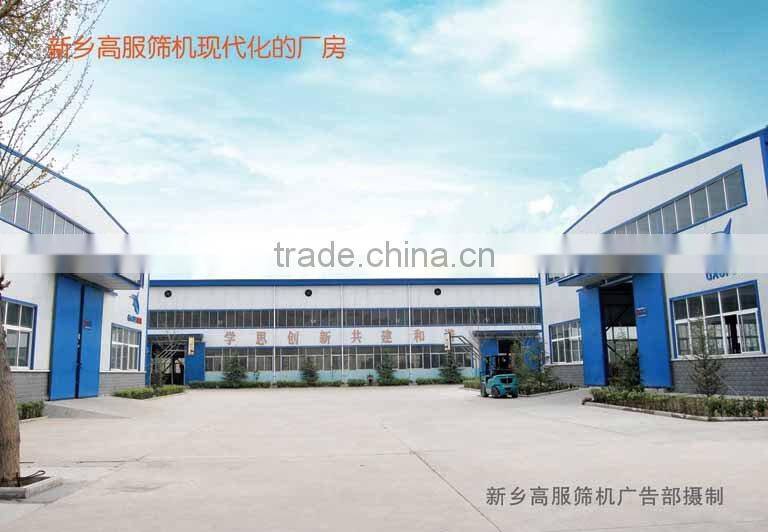

modern workshop
GAOFU company have a perfect after-sales service system and professional technology team to provide customers with prompt and thorough service. Our price are most competitive and reasonable, all order will be supplied within the stipulated period. Awaiting your first inquiry order
