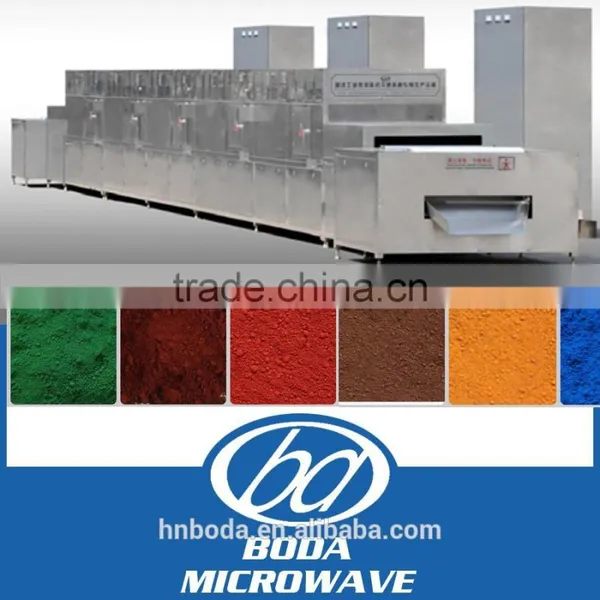

Iron Oxide Tunnel Microwave Drying Machine
Technology Parameters
Model |
Working Frequency (MHZ) |
Output power (kw) |
Microwave leakage (mW/cm2)
|
External Dimension (m) |
Installation Area (m) |
Gross Weight (Kg) |
Container Quantity |
BDMD-CH-P-50 |
2450±50 |
50 |
≤1 |
10x1.5x1.8 |
12x4.0x2.5 |
3200 |
1x20GP |
BDMD-CH-P-80 |
2450±50 |
80 |
≤1 |
13x1.5x1.8 |
15x4.0x2.5 |
5000 |
2X20GP |
BDMD-CH-P-100 |
2450±50 |
100 |
≤1 |
15x1.5x1.8 |
17x4.0x2.5 |
6000 |
3X20GP |
BDMD-CH-P-130 |
2450±50 |
130 |
≤1 |
18x1.5x1.8 |
20x4.0x2.5 |
7000 |
3X20GP |
BDMD-CH-P-160 |
2450±50 |
160 |
≤1 |
21x1.5x1.8 |
23x4.0x2.5 |
8000 |
4X20GP |
Remark: All technology parameters are subject to user manual, some parameters will be changed according to customer’s demand.
Immediately regulation capability
The energetic conversion of the microwaves into heat takes place directly in the product.
The resulting steam pressure ensures rapid and direct outlet of the water from the product.
Food, Pharmaceutical, Cosmetic and Chemical industry for the drying of heat sensitive products or products sensitive to oxidation.
Drying of thick product with low thermal conductivity.
Low temperature drying of fruits, vegetables, meats.
Industrial Microwave Dryer (Batch Type)
Model |
BDMD-M-T-6 |
BDMD-M-T-9 |
BDMD-M-T-15 |
BDMD-M-T-18 |
Microwave frequency |
2450±50 MHz |
|||
Input voltage |
3PH AC380V |
|||
Microwave power |
6Kw (Adjustable) |
9Kw(Adjustable) |
15Kw (Adjustable) |
18Kw (Adjustable) |
Input power |
≤7Kw |
≤10Kw |
≤17Kw |
≤20Kw |
Chamber color |
Silver-white |
|||
Chamber material |
Industrial stainless steel |
|||
Number of layers |
1~3 |
|||
Microwave leakage limit(mW /cm2) |
≤3 |
|||
Working temperature(℃) |
60-120 (Adjustable) |
|||
Cooling method |
Water-cooled or Air-cooled |
|||
Weight(Kg) |
550 |
600 |
850 |
1350 |
Chamber size |
1.2*1.0*1.6m |
1.4*1*1.6m |
1.9*1.5*1.8m |
2.4*2*1.8m |
Installation area |
3.0*2.0*2.5m |
3.0*2.0*2.5m |
4*2.5*2.5m |
4*3*2.5m |
Ambient temperature(℃) |
-10 ~ 40 |
|||
1. Are you a factory or a trader?
We are the largest and influential microwave equipments manufacturer in China, with registered capital of 26 million, setting scientific research, production, sales and service as a whole.
2. Where is your headquarters? And where is your factory?
Our headquarters is located in Building 18, No. 1, Cuizhu Street, High-tech Zone, Zhengzhou City, Henan Province, China.
The headquater is an executive office building with 9 floors.
Our factory located in the Crossing of Hongnan Road and Qingyang Street, High-tech Zone, Zhengzhou City, Henan Province, China. It takes about 20 minutes by car from our headquarters to our factory.
3. Do you have your own brand?
Our Registered brand is:BODA
Registration No: 7475478
Validity Period: 2010-10-14 ~ 2020-10-13
Approved Goods: foundry machinery, tea production equipment, dryer, ceramic production equipment, roaster, metal mixer, rotary kiln, electron industry equipment, static industry equipment, pharmaceutical processing machinery.
4. Please let me know your R&D team & capability?
R&D team consists of 65 outstanding engineers engaged in industrial microwave for years; 6 of them are professors and associate professors, 2 of them are senior professionals, who are engaged in high-end and novel products development as well as technological research and reformation. The others are technical staff, with veteran work experiences on technology transfer and application, engineering support and on-site management. With strong capability of R&D and technical transformation, we have set up a stable platform successfully on transforming its fruits from science to technology, technology to final products.
Equipped with the first-class R&D hardware facilities, our labs are operated and managed in accordance with ISO 9001 standard.
5. Which type of equipment is better for me?
Please inform us more information about your requirements, and our team will discuss together and offer the best solution to you soon.
