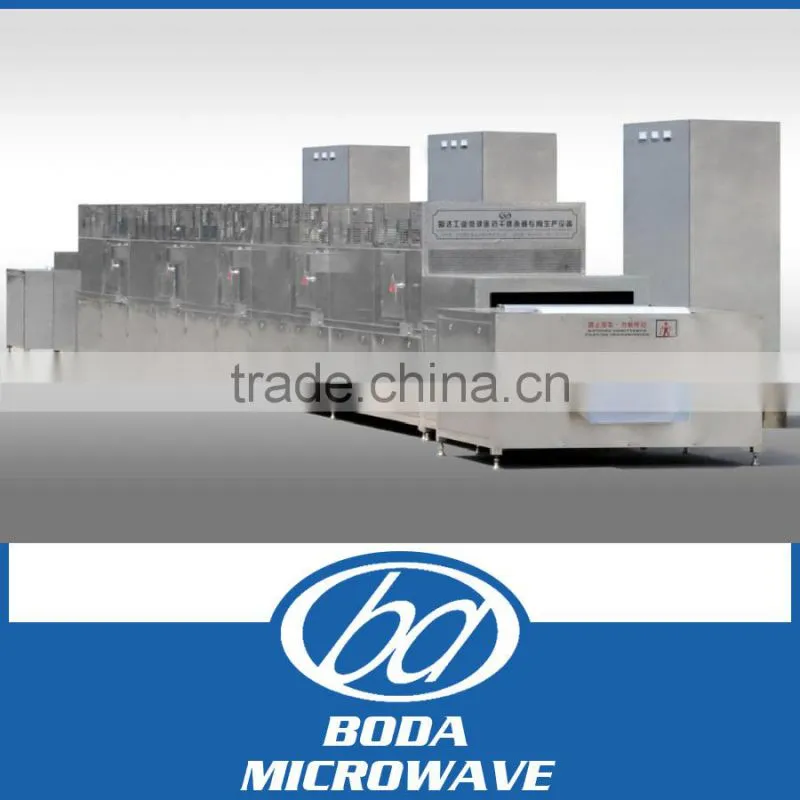

Chemical Powder Iron Oxide Microwave Dehydrator Dryer Machine ( Continuous Type )
Technology Parameters
Model | Working Frequency (MHZ) | Output power (kw) | Microwave leakage (mW/cm2)
| External Dimension (m) | Installation Area (m) | Gross Weight (Kg) | Container Quantity |
BDMD-CH-P-50 | 2450±50 | 50 | ≤1 | 10x1.5x1.8 | 12x4.0x2.5 | 3200 | 1x20GP |
BDMD-CH-P-80 | 2450±50 | 80 | ≤1 | 13x1.5x1.8 | 15x4.0x2.5 | 5000 | 2X20GP |
BDMD-CH-P-100 | 2450±50 | 100 | ≤1 | 15x1.5x1.8 | 17x4.0x2.5 | 6000 | 3X20GP |
BDMD-CH-P-130 | 2450±50 | 130 | ≤1 | 18x1.5x1.8 | 20x4.0x2.5 | 7000 | 3X20GP |
BDMD-CH-P-160 | 2450±50 | 160 | ≤1 | 21x1.5x1.8 | 23x4.0x2.5 | 8000 | 4X20GP |
Remark: All technology parameters are subject to user manual, some parameters will be changed according to customer’s demand.
MATERIAL FORM: Powder/Granule
Suitable Materials :
Inorganic chemical products:
Food additive
Silica powder
Boron carbide
Zirconium hydroxide
Nickel hydroxide
Aluminum hydroxide
Zirconium oxide
NM Silica
Calcium carbonate
Cryolite
Molybdenum concentrate
Ammonium molybdate
Lithium carbonate
Sulfate
Stearate
Ferric oxide etc.
Fine chemical products:
PHE
BTASPAP
Pigment
Others: rubber auxiliary, thiofide, catalyzer, battery material, chemical pharmaceutical intermediates molecular sieve, fiberglass, REO, polymer material.

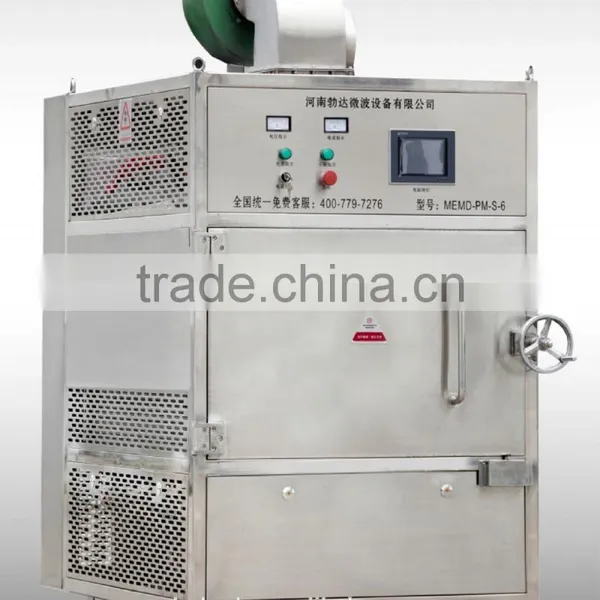

Industrial Microwave Dryer (Batch Type)
Technology Parameters
Model | BDMD-M-T-6 | BDMD-M-T-9 | BDMD-M-T-15 | BDMD-M-T-18 |
Microwave frequency | 2450±50 MHz | |||
Input voltage | 3PH AC380V | |||
Microwave power | 6Kw (Adjustable) | 9Kw(Adjustable) | 15Kw (Adjustable) | 18Kw (Adjustable) |
Input power | ≤7Kw | ≤10Kw | ≤17Kw | ≤20Kw |
Chamber color | Silver-white | |||
Chamber material | Industrial stainless steel | |||
Number of layers | 1~3 | |||
Microwave leakage limit(mW /cm2) | ≤3 | |||
Working temperature(℃) | 60-120 (Adjustable) | |||
Cooling method | Water-cooled or Air-cooled | |||
Weight(Kg) | 550 | 600 | 850 | 1350 |
Chamber size | 1.2*1.0*1.6m | 1.4*1*1.6m | 1.9*1.5*1.8m | 2.4*2*1.8m |
Installation area | 3.0*2.0*2.5m | 3.0*2.0*2.5m | 4*2.5*2.5m | 4*3*2.5m |
Ambient temperature(℃) | -10 ~ 40 | |||
FAQ:
1. Are you a factory or a trader?
We are the largest and influential microwave equipments manufacturer in China, with registered capital of 26 million, setting scientific research, production, sales and service as a whole.
2. Where is your headquarters? And where is your factory?
Our headquarters is located in Building 18, No. 1, Cuizhu Street, High-tech Zone, Zhengzhou City, Henan Province, China.
The headquater is an executive office building with 9 floors.
Our factory located in the Crossing of Hongnan Road and Qingyang Street, High-tech Zone, Zhengzhou City, Henan Province, China. It takes about 20 minutes by car from our headquarters to our factory.
3. Do you have your own brand?
Our Registered brand is:BODA
Registration No: 7475478
Validity Period: 2010-10-14 ~ 2020-10-13
Approved Goods: foundry machinery, tea production equipment, dryer, ceramic production equipment, roaster, metal mixer, rotary kiln, electron industry equipment, static industry equipment, pharmaceutical processing machinery.
4. Please let me know your R&D team & capability?
R&D team consists of 65 outstanding engineers engaged in industrial microwave for years; 6 of them are professors and associate professors, 2 of them are senior professionals, who are engaged in high-end and novel products development as well as technological research and reformation. The others are technical staff, with veteran work experiences on technology transfer and application, engineering support and on-site management. With strong capability of R&D and technical transformation, we have set up a stable platform successfully on transforming its fruits from science to technology, technology to final products.
Equipped with the first-class R&D hardware facilities, our labs are operated and managed in accordance with ISO 9001 standard.
5. Which type of equipment is better for me?
Please inform us more information about your requirements, and our team will discuss together and offer the best solution to you soon.
