Specifications
GH263.Within the rated stroke current range, this series solenoid output magnetic force is proportionalModel: GH263 Proportional Solenoid valve
GH263-045

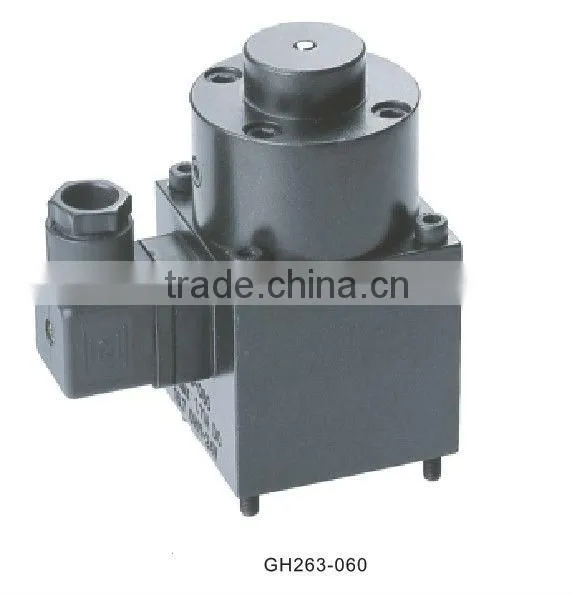

GH263-060

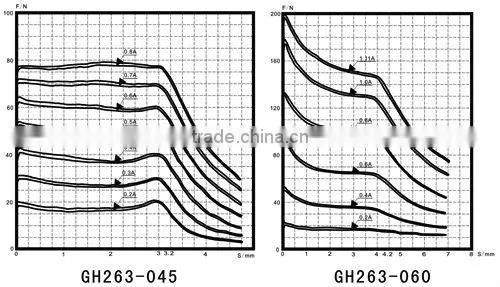

Within the rated stroke current range, this series solenoid output magnetic force is proportional to the input signal. When matched with the Proportional Control Amplifier, it can achieve the precise control of the plunger position. It is generally applied in the output flow control of the proportional pumps and the stepless adjustment of the oil motors.
Specifications
Model No. | Rated CurrentA | Rated Magnetic Force N | Rated Stroke mm | Full Strokemm | Relative Duty Rating % | Resistance 20°C V | Hysteresis Magnetic Force % | Hysteresis Magnetic Current % | Repeat Precision % | Oil Pressure Duration MPa |
GH263 - 045 | 0.8 | 75 | 3 | 6 | 100 | 19.5 | ≤ 3 | ≤ 3 | ≤ 1 | 21 |
GH263-060 | 1.11 | 145 | 4 | 8 | 100 | 16.7 | ≤ 4 | ≤ 4 | ≤ 1 | 21 |
External Shape and Installing Dimension
Model No. |
External Dimension |
Installing Dimension | ||||||||
Amax | Bmax | Lmax | a | b | L1 | D1 | D2 | D3 | D4 | |
GH263-045 | 45 | 45 | 92 | 35.3±0.2 | 35.3±0.2 | 11.2 | 5 | 17 | 22 | M5×70 |
GH263-060 | 60 | 60 | 108 | 35.3±0.2 | 35.3±0.2 | 11.8 | 6 | 22.4 | 29.8 | M6×70 |
Advantage:
1. Low MOQ: It can meet your promotional business very well.
2.OEM Accepted: we can produce any your design.
3.Good service: We treat clients as friend.
4.Good quality: we have strict quality conrol system. Good reputation in the market.
5. Fast& cheap delivery: we have big discount from forwarder(long Contract)
Order Guide:
Genaral Order Information
We take great pride in our work and in the wide variety of products that we offer. We are experienced in servicing the US market, European Market and Africa Market. Pls be aware that on our understanding of the demands and nature of promotional and marketing deadlines,That's why we always ensure that every order is delivered on time.
