GV45-4-AT Series Hydraulic Proportional Solenoid

Name: GV45-4-AT Series Hydraulic Proportional Solenoid
Brand: Proportional Solenoid
SKU: 141608152
Availability: InStock

GV45-4-AT Series Hydraulic Proportional Solenoid thumbnail-1

GV45-4-AT Series Hydraulic Proportional Solenoid photo-1

US$ 30 - 50 MOQ: 200 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Proportional Solenoid

Model Number:

GV45-4-AT

Contact Supplier Request Quote Chat Now

Ningbo Yaofeng Hydraulic Electrics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

NINGBO

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Proportional Solenoid

Model Number GV45-4-AT

Specifications

Proportional solenoid within the rated stroke current range, this series solenoid output magnetic force is proportional signal

Model: Proportional Solenoid GV45-4-AT

GV45-4-B

Within the rated stroke and current range, this series solenoids output magnetic force is exactly proportional to the input single. The system output pressure is more stable by changing the inside spring output force characteristics. This series of solenoids can be matched with the Proportional Control Amplifier to reach the stepless control within the input current range.

Specifications:

Model No.

Rated Current

Rated Magnetic Force

Rated Stroke

Full Stroke

Relative Duty Rating

Resistance 20

Hysteresis Magnetic Force

Hysteresis Magnetic Current

Repetition Precision

Oil Pressure Duration

MPa

GV45-4-AT

0.8

105

1.4

100

19.5

GV45-4-B

0.8

1.4

100

19.5

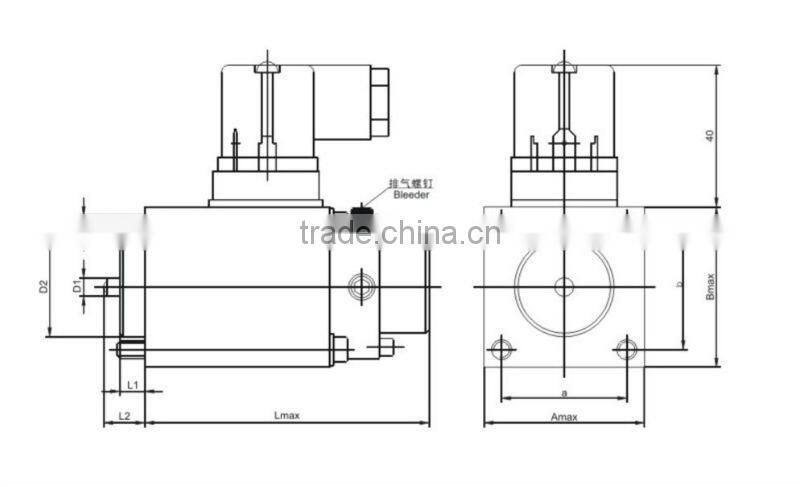

External Shape and Instaling Dimension:

Model	External Dimension			Installing Dimension
Model	Amax	Bmax	Lmax	a	b	L1	L2	D1	D2	D4
GV45-4-AT	45	45	83	35±0.2	35±0.2	7	13	6	28	M5×60
GV45-4-B	45	45	83	35±0.2	35±0.2	7	12.4	6	28	M5×60

Advantage:

1. Low MOQ: It can meet your promotional business very well.

2.OEM Accepted: we can produce any your design.

3.Good service: We treat clients as friend.

4.Good quality: we have strict quality conrol system. Good reputation in the market.

5. Fast& cheap delivery: we have big discount from forwarder(long Contract)
