Specifications
Proportional electromagnet matched with the Proportional Control Amplifiers to reach the precise control of the valveProportional Solenoid Series MSM- type: MSM923055-003
Within the rated stroke and current range, this series solenoids output magnetic force is exactly proportional to the input single. It can be matched with the Proportional Control Amplifiers to reach the precise control of the valve plunger position with high repetition precision and good linearity plus.
Specifications
Model No. | Rated Current A | Rated Magnetic Force N | Rated Stroke mm | Full Stroke mm | Relative Duty Rating% | Resistance 20 °C V | Hysteresis Magnetic Force % | Hysteresis Magnetic Current % | Repetition Precision% | Oil Pressure Duration MPa |
MSM923571-003 | 1.8 | 60 | 1.8 | 4 | 100 | 5.4 | ≤ 3 | 100 | 1 | 21 |

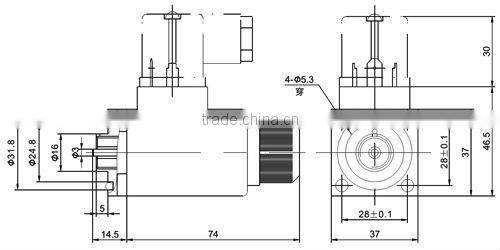

External Shape and Installing Dimension
Advantage:
1. Low MOQ: It can meet your promotional business very well.
2.OEM Accepted: we can produce any your design.
3.Good service: We treat clients as friend.
4.Good quality: we have strict quality conrol system. Good reputation in the market.
5. Fast& cheap delivery: we have big discount from forwarder(long Contract)
Order Guide:
Genaral Order Information
We take great pride in our work and in the wide variety of products that we offer. We are experienced in servicing the US market, European Market and Africa Market. Pls be aware that on our understanding of the demands and nature of promotional and marketing deadlines,That's why we always ensure that every order is delivered on time.
