Specifications

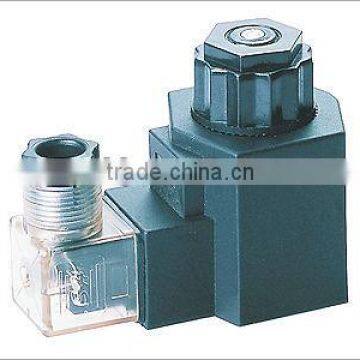

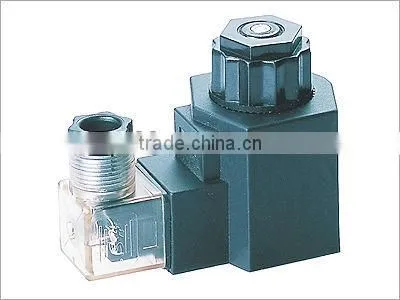

starter solenoid assemble with NG6 valveWet-pin type
Operated by the singl-phase full-wave-rectifiedpower supply
Starter solenoid MFZ9-47YC
This series of solenoids is operated by the Single-Phase Full-Wave-Rectified power supply at the voltage of up to 220VDC, MFZ9–47YC can be matched with the Japan Yuken NG6, NG10 Screw-Connected Reversing Solenoid Valves, MFZ9–47YCA can be matched with the Japan Yuken NG6, NG10 Terminal Block type Screw-Connected Reversing Solenoid Valves.
.
Specifications:
Model No. | Rated Magnetic Power N | Rated Stroke | Full Stroke mm | Oil Pressure Duration MPa | Holding Power W | Operating Frequency t/h | Relative Duty Rating % | Rated Voltage V |
MFZ9-47YC | ≥ 47 | 2.8 | ≥ 6 | 21 | ≤ 28 | 12000 | 100 | 12 24 110 220 |

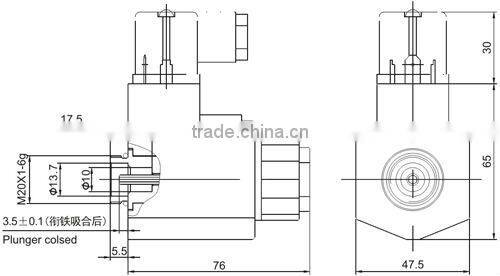

External Shape and Installing Dimension:
Advantage:
1. Low MOQ: It can meet your promotional business very well.
2.OEM Accepted: we can produce any your design.
3.Good service: We treat clients as friend.
4.Good quality: we have strict quality conrol system. Good reputation in the market.
5. Fast& cheap delivery: we have big discount from forwarder(long Contract)
Order Guide:
Genaral Order Information
We take great pride in our work and in the wide variety of products that we offer. We are experienced in servicing the US market, European Market and Africa Market. Pls be aware that on our understanding of the demands and nature of promotional and marketing deadlines,That's why we always ensure that every order is delivered on time.
