Hydraulic 24VDC & Wet-pin Type Electromagnet Switch
US$ 12.2 - 12.9
MOQ: 500 Units
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
electromagnet switch
Model Number:
MFZ9-90YCA
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hydraulic Wet-pin Type & 220 Volt SolenoidNegotiableMOQ: 600 Units -
Hydraulic Wet-pin Type & ac 220V Solenoid Valve CoilUS$ 5.9 - 6.2MOQ: 200 Units
-
Hydraulic Wet-pin Type Solenoid Coil 220vNegotiableMOQ: 600 Units
-
Hydraulic Wet-pin Type 24v Control Valve SoleniodUS$ 11.85 - 12.2MOQ: 200 Units
-
Hydraulic Wet-pin Type 110v ElectromagnetNegotiableMOQ: 500 Units
Place of Origin
Zhejiang, China
Brand Name
electromagnet switch
Model Number
MFZ9-90YCA
Specifications
electromagnet switch assemble with NG10 valveWet-pin type
Operated by the singl-phase full-wave-rectifiedpower supply

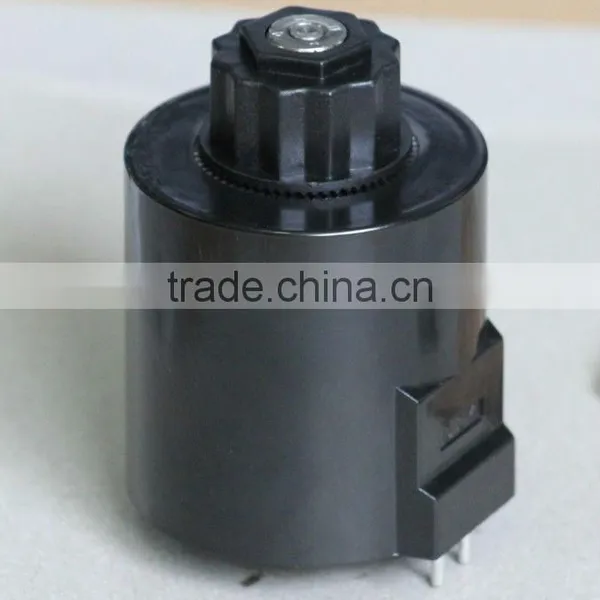

Electromagnet switch MFZ9-90YCA
This series of solenoids is operated by the Single-Phase Full-Wave-Rectified power supply at the voltage of up to 220VDC, MFZ9–90YC can be matched with the Japan Yuken NG6, NG10 Screw-Connected Reversing Solenoid Valves, MFZ9–90YCA can be matched with the Japan Yuken NG6, NG10 Terminal Block type Screw-Connected Reversing Solenoid Valves.
.
.
Specifications:
Model No. |
Rated Magnetic Power N |
Rated Stroke |
Full Stroke mm |
Oil Pressure Duration MPa |
Holding Power W |
Operating Frequency t/h |
Relative Duty Rating % |
Rated Voltage V |
MFZ9-90YCA |
≥ 90 |
4 |
≥8 |
21 |
≤ 38 |
12000 |
100 |
12 24 110 220 |

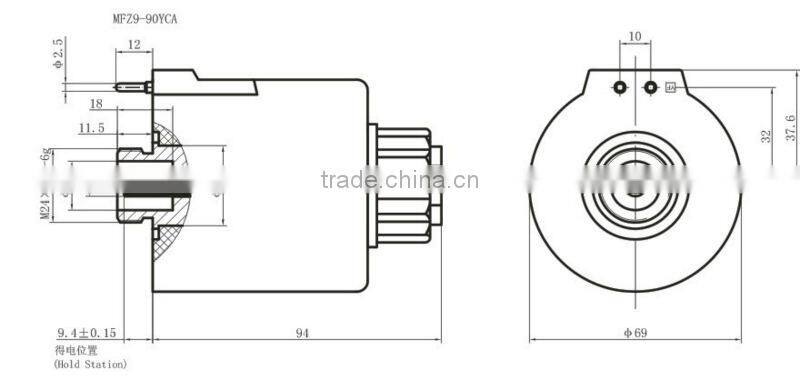

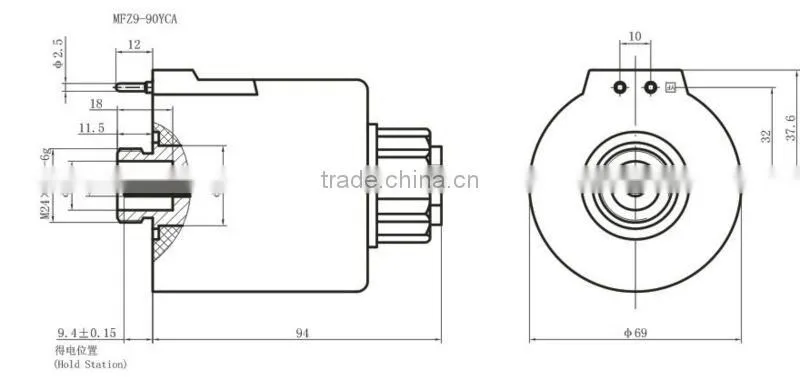

External Shape and Installing Dimension:
