Specifications
220 volt solenoid assemble with NG6 valveWet-pin type
Operated by the singl-phase full-wave-rectifiedpower supply

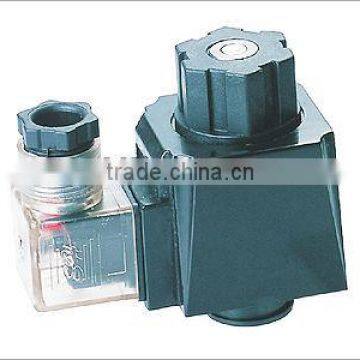

220 volt solenoid MFJ12-27YC
This series of solenoids is operated by the 50HZ/60HZ power supply at the voltage of up to 380VAC, MFJ12–27YC can be matched with the Germany NG6, NG10 Screw-Connected Reversing Solenoid Valves; MFJ12–27YCA can be matched with the Germany NG6, NG10 Terminal Block type Screw-Connected Reversing Solenoid Valves.
Specifications:
Model No. | Rated Magnetic Force | Rated Stroke | Full Stroke | Oil Pressure Duration MPa | Initial Power | Holding Power | Operating Frequency | Relative Duty Rating | Rated Voltage |
MFJ12-27YC | ≥ 27 | 3 | ≥6 | 21 | ≤ 300 | ≤50 | 12000 | 100 | 110V/50Hz 220V/50Hz 120V/60Hz 240V/60Hz |

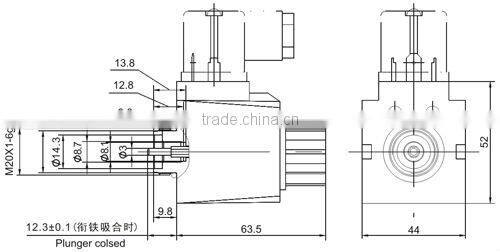

External Shape and Installing Dimension:
Advantage:
1. Low MOQ: It can meet your promotional business very well.
2.OEM Accepted: we can produce any your design.
3.Good service: We treat clients as friend.
4.Good quality: we have strict quality conrol system. Good reputation in the market.
5. Fast& cheap delivery: we have big discount from forwarder(long Contract)
Order Guide:
Genaral Order Information
We take great pride in our work and in the wide variety of products that we offer. We are experienced in servicing the US market, European Market and Africa Market. Pls be aware that on our understanding of the demands and nature of promotional and marketing deadlines,That's why we always ensure that every order is delivered on time.
