Hydraulic 24VDC & wet-pin type solenoid switch

Specifications

solenoid switch assemble with NG6 valve
Wet-pin type
Operated by the singl-phase full-wave-rectifiedpower supply

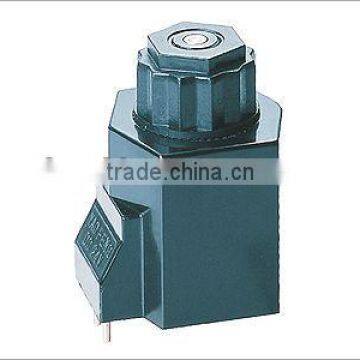

 Solenoid switch  MFZ9-47YCA



    This series of solenoids is operated by the Single-Phase Full-Wave-Rectified power supply at the voltage of up to 220VDC, MFZ9–47YC can be matched with the Japan Yuken NG6, NG10 Screw-Connected Reversing Solenoid Valves, MFZ9–47YCA can be matched with the Japan Yuken NG6, NG10 Terminal Block type Screw-Connected Reversing Solenoid Valves.
.



Specifications:



Model No.	Rated Magnetic Power N	Rated Stroke  mm	Full Stroke mm	Oil Pressure Duration MPa	Holding Power  W	Operating Frequency t/h	Relative Duty Rating %	Rated Voltage V
MFZ9-47YCA	≥ 47	2.8	≥ 6	21	≤ 28	12000	100	12 24 110 220



External Shape and Installing Dimension:
