HF138Y Crawler Drilling Rig, Hydraulic Operation, DTH Drilling Rig

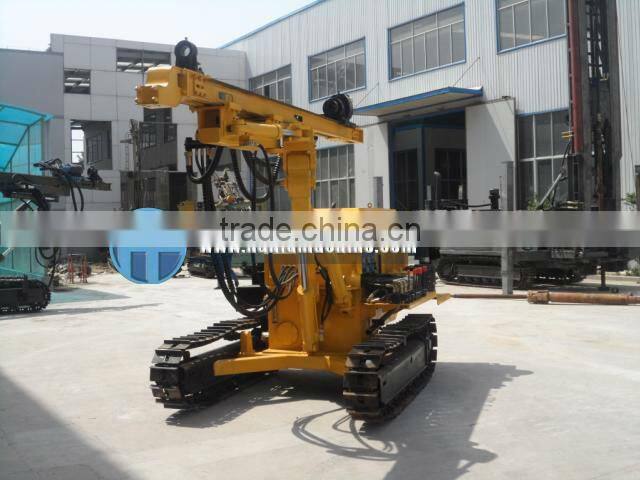

HF138Y Crawler Drilling Rig, Hydraulic Operation, DTH Drilling Rig photo-1
US$ 24,000 - 75,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Rotary Drilling Rig
Power Type:
Diesel
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Tianjin shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Rotary Drilling Rig
Power Type Diesel
Place of Origin Henan, China
Brand Name Hanfa
Model Number HF138Y
Usage Other, open mining, water conservancy, power plants, road building,blast hole
Dimension(L*W*H) 5200*2030*2300mm
Weight 3800kgs
Certification ISO9001
Warranty one year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

HF138Y crawler drilling rig
1. with DTH hammer
2. Work with air compressor
3. Crawler Type, easy moving
4.certificate: ISO

    HF138Y crawler drilling rig, hydraulic operation, DTH drilling rig

1.Advantages---HF138Y crawler drilling rig

  1. High efficiency,
  2. crawler type, high speed
  3. large torch
  4. low air comsumption
  5. slide-skid ensures the stability

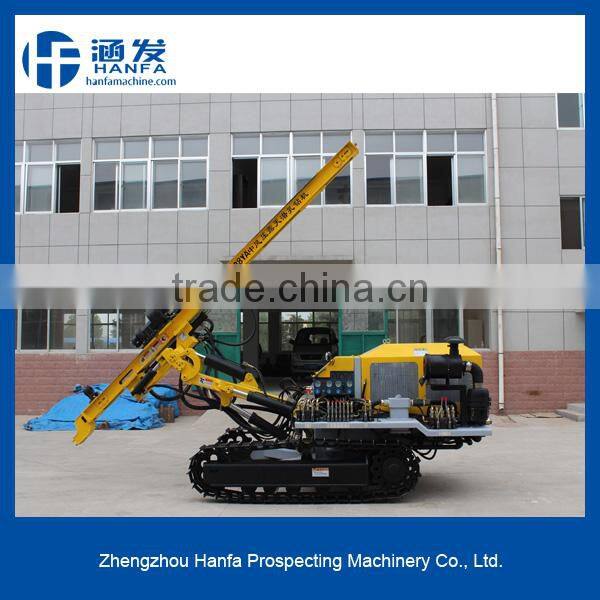

HF138Y crawler drilling rig, hydraulic operation, DTH drilling rig



Main technical parameters ---  crawler drilling rig HF138Y





Main technical parameters of HF138Y

Wind pressure (Mpa)

0.7----1.6

Air consumption (m³/min)

10----15

Drilling diameter (mm)

90----130((max:203)

Drilling depth (m)

level 40m,down 80m

Once promotion distance (mm)

3000

Drill diameter (mm)

60

Skid compensation (mm)

900

Maximum lift force (N)

24900

Skid pitch (°)

up and down total 95

Swinging angle of skid (°)

Left 38, right 31

Boom Pitch (°)

up and down total 70

Boom swing angle (°)

Left 41, right 33

Grade ability (°)

30

Chassis ground clearance (mm)

260

Travelling speed (km/h)

2

Back to the transit speed (r/min)

0----80

Rotary torque (N.m)

2000

Host Power (Kw)

45

For rock (f)

6----20

Impact frequency (r/min)

950---1500

Total Weight (kg)

3800

Dimension (L * W * H)

5200*2030*2300

The drilling rig is mainly suitable for open mining, water conservancy, power plants, road building and other Rock blasting hole drilling

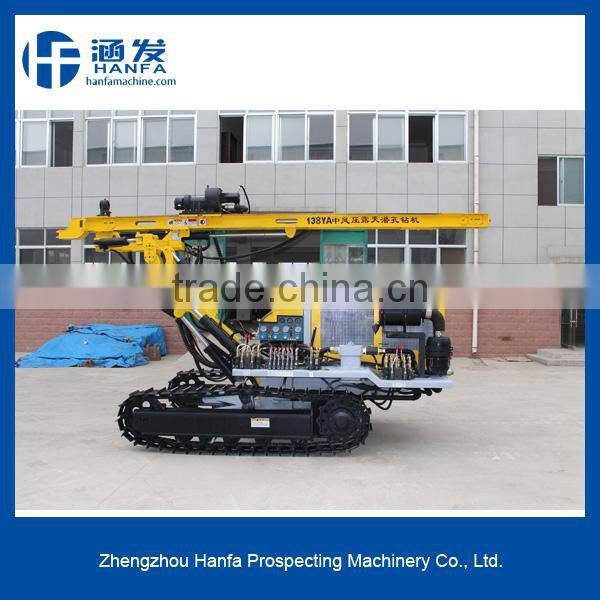

 HF138Y crawler drilling rig, hydraulic operation, DTH drilling rig

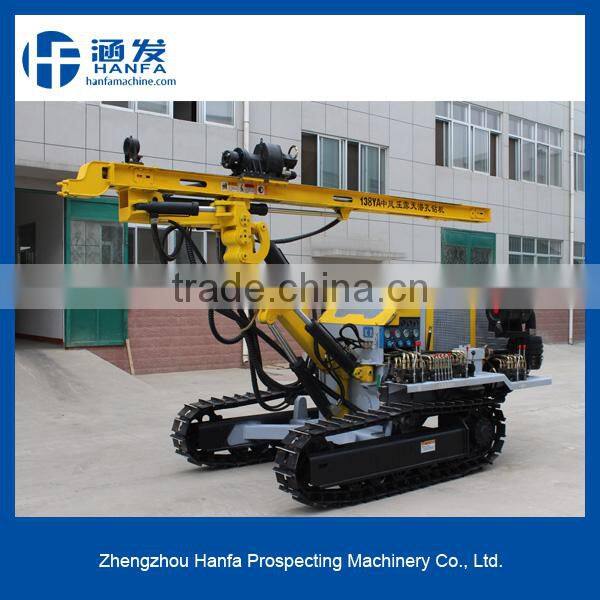

HF138Y crawler drilling rig, hydraulic operation, DTH drilling rig

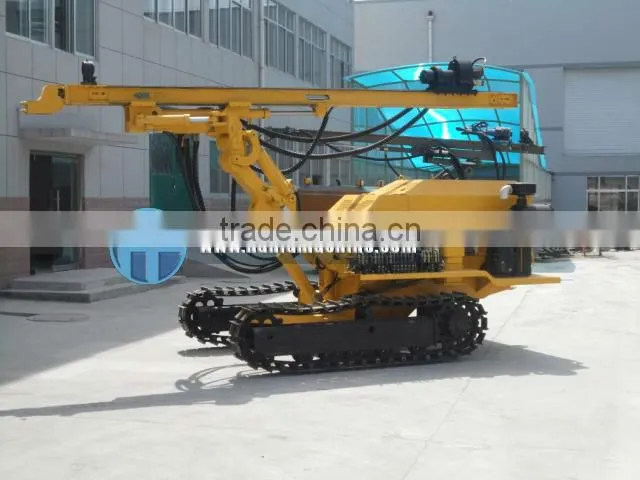

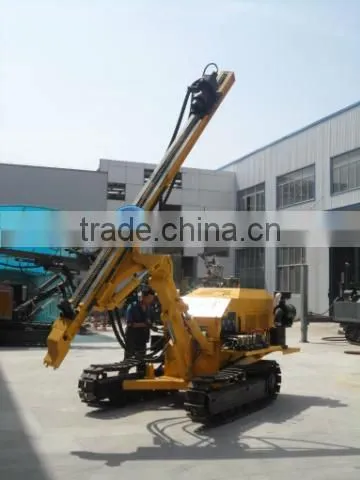

 HF138Y crawler drilling rig, hydraulic operation, DTH drilling rigHF138Y crawler drilling rig, hydraulic operation, DTH drilling rigHF138Y crawler drilling rig, hydraulic operation, DTH drilling rig

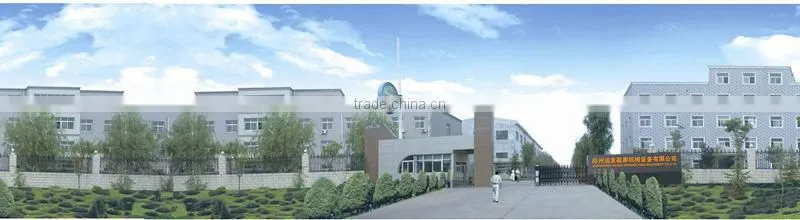

About us
