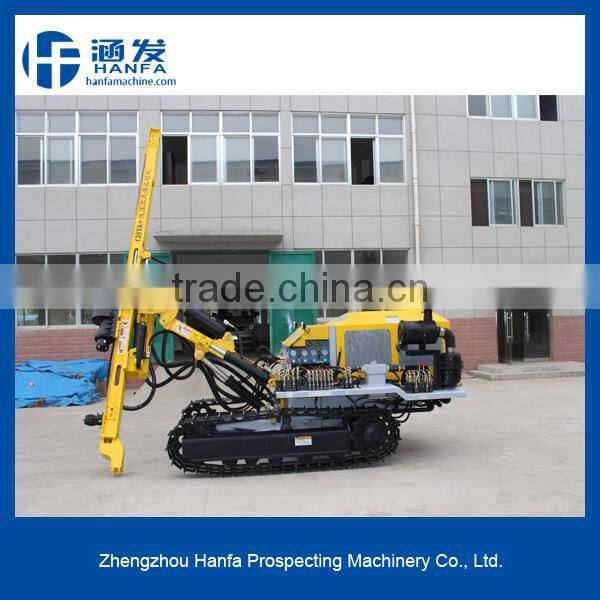

Help CenterHF138Y Hydraulic Crawler Blast Hole Drilling Rig, Can Drill Both Horizontal and Vertical Hole
Related Products
-
Crawler Type Mine Drilling Rig HF100YA2, High SpeedUS$ 13,500 - 30,000MOQ: 1 Set -
HF100YA2 Rock Drilling Machine With DTH Hammer, Air CompressorUS$ 13,500 - 30,000MOQ: 1 Set
-
HF150T Rock Drilling Machine With Four Wheels, Easy to MoveUS$ 25,000 - 35,000MOQ: 1 Set
-
Rock Expert, HF150T Rock Drilling Rig With DTH Hammer or Tricone BitUS$ 25,000 - 35,000MOQ: 1 Set
-
HF130Y Crawler Drilling Rig, Work With Air CompressorUS$ 24,500 - 50,000MOQ: 1 Set
Specifications
HF138Y blast hole drilling rig1. with DTH hammer
2. Work with air compressor
3.Crawler Type, easy moving
4. ISO9001
HF138Y blast hole drilling rig
1.Advantages---HF138Y blast hole drilling rig
- High efficiency,
- crawler type, high speed
- large torch
- low air comsumption
- slide-skid ensures the stability
Main technical parameters --- blast hole drilling rig HF138Y
Main technical parameters of HF138Y | |
Wind pressure (Mpa) | 0.7----1.6 |
Air consumption (m³/min) | 10----15 |
Drilling diameter (mm) | 90----130((max:203) |
Drilling depth (m) | level 40m,down 80m |
Once promotion distance (mm) | 3000 |
Drill diameter (mm) | 60 |
Skid compensation (mm) | 900 |
Maximum lift force (N) | 24900 |
Skid pitch (°) | up and down total 95 |
Swinging angle of skid (°) | Left 38, right 31 |
Boom Pitch (°) | up and down total 70 |
Boom swing angle (°) | Left 41, right 33 |
Grade ability (°) | 30 |
Chassis ground clearance (mm) | 260 |
Travelling speed (km/h) | 2 |
Back to the transit speed (r/min) | 0----80 |
Rotary torque (N.m) | 2000 |
Host Power (Kw) | 45 |
For rock (f) | 6----20 |
Impact frequency (r/min) | 950---1500 |
Total Weight (kg) | 3800 |
Dimension (L * W * H) | 5200*2030*2300 |
The drilling rig is mainly suitable for open mining, water conservancy, power plants, road building and other Rock blasting hole drilling | |
