Specifications
HF100YA2 mine drilling rig1. DTH hammer
2. Work with air compressor
3.Crawler Type, easy moving
4.certificate:ISO

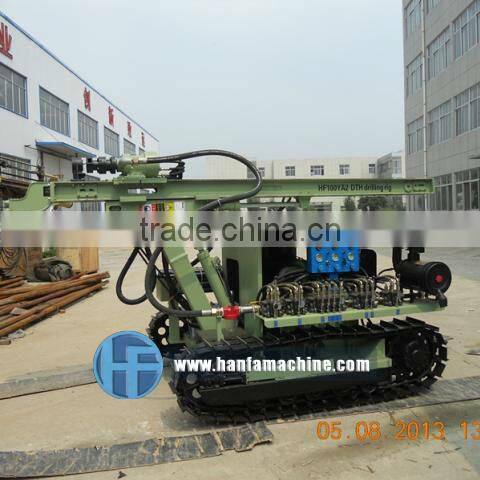

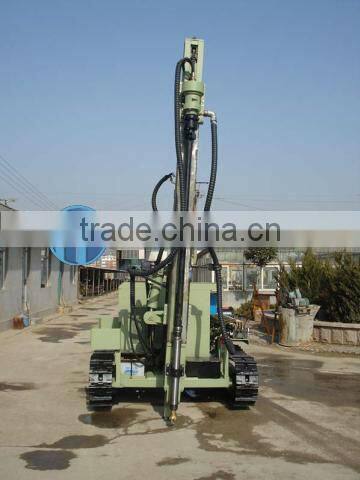

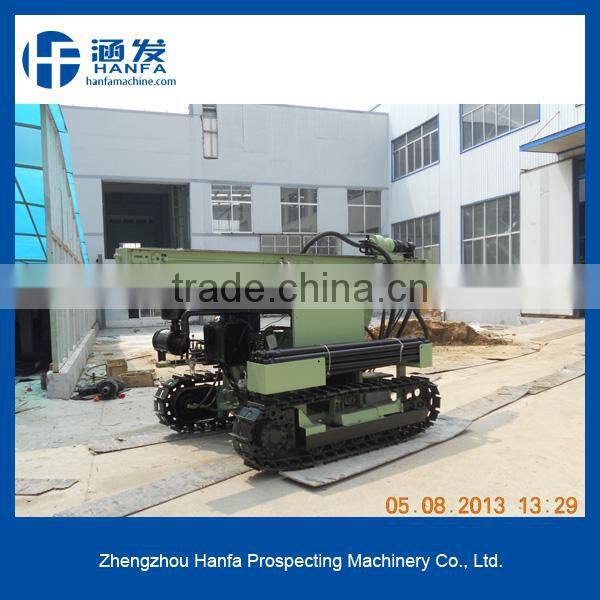

DTH drilling rig, mine drilling rig HF100YA2, high speed
Details------ HF100YA2 mine drilling rig
HF100AY2 crawler mine drilling rig , using a new hydraulic technology, with low air consumption rotary torque, variable-bit-shift convenient hole, the drilling rig structure, a compact, the smallest turning radius of only 2.8m, while promoting a retractable sliding shelf compensation, drilling hole when the sliding frame support on the ground, drilling and good stability.

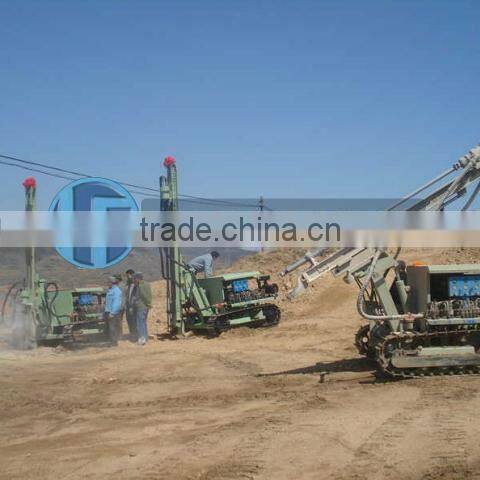

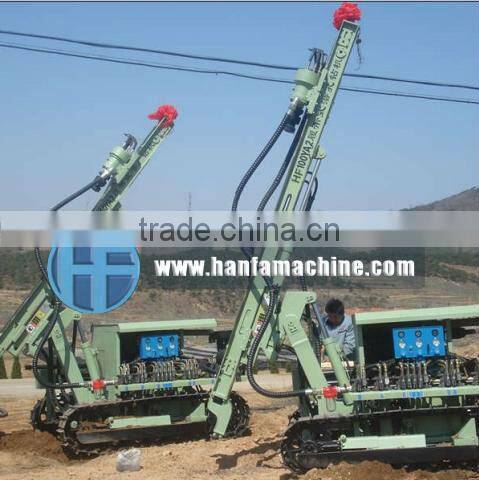

The mine drilling rig is mainly suitable for open mining, water conservancy, power plants, road building and other Rock drilling blasting holes.
Main technical parameters of HF100YA2 mine drilling rig
Total Weight(kg) | 2800 |
Drilling diameter(mm) | 90---130 |
Dimension (L * W * H) (mm) | 4100*2030*2020 |
Drilling depth(m) | 30 (max:40) |
Travelling speed(km/h) | 2 |
Once promotion distance(mm) | 2000 |
Grade ability(°) | 30 |
Working pressure(mpa) | 0.7—1.4 |
Chassis ground clearance(mm) | 260 |
Air consumption(m³/min) | 7--15 |
Skid pitch(°) | up and down total 100 degree |
Host Power(kw) | 33 |
Sliding tilt swing(°) | Left 35, right 10 |
For rock(f) | 6--20 |
Skid compensation(mm) | 900 |
Impact frequency(r/min) | 840 |
Note: The Company’s products continued to improve; various design and technical specifications may change at any time, without any additional notice or obligation.
| |

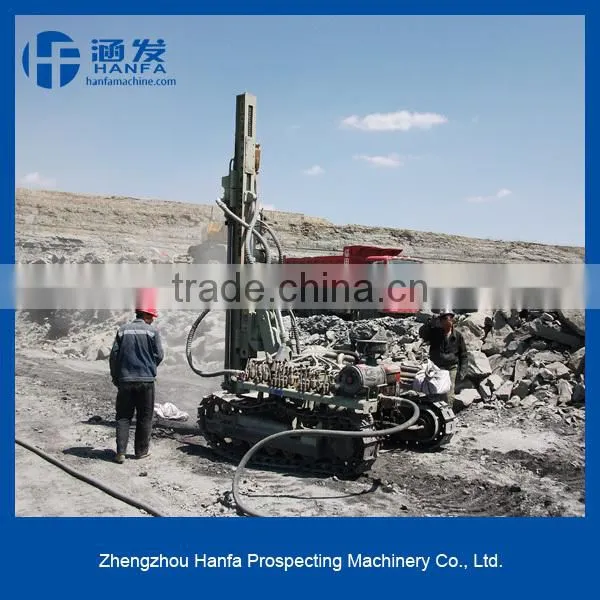

Project case of core drilling equipment
