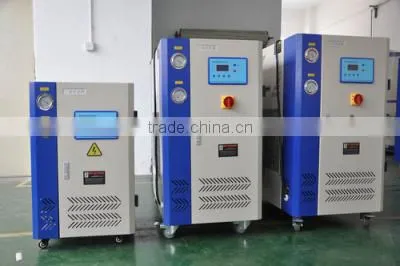

HLLA~03SI 7.9 KW Cooling capacity Industrial Air Cooled Water Chiller For Industry Use
Production Description:
1. Rated Cooling Capacity Based on: Chilled water inlet/outlet temp. 17℃/12℃, Cooling water inlet/outlet temp. 30°C/35°C, Fouling factor: 0.088m2.°C/KW
2. Chilled Water Range: 5~20℃;
3. Cooling Water Range: 20~40℃;
4. Changes of Specification for improvement may be made without Notice.
Product Function:
1. Applicable for Electroplating, plastic products, hardware, chemical industry, electronics, food preservation,laser carving, vacuum coating, ultrasonic cleaning etc industries.
2. Chiller that uses high effective a easy cleaning stainless steel heat exchanger, exerts its unique advantage against erosion and filth in electroplating, PCB, oxidization, chemical Industry,etc weakacid and alkaline conditions.
3. Compressor: Hitachi, Daikin, Danfoss, Copeland, client can choose the compressors.
4. Safety production Device:Phase reversion protection, Phase lack protection, overload current protection, discharge air temp. protection, low & high pressure protection.
Product Detail:
Model HLLA ~ |
03SI |
|
Rated Cooling Capacity |
×1000 kcal/h |
7.9 |
KW |
9.2 |
|
Input Power (KW) |
3.85 |
|
Comp. Input Power×Qty. (KW) |
2.6 |
|
Chillded Water Pump Model |
HT1.0DK-20 |
|
Chilled Water Pump Power (KW) |
0.75 |
|
Comp. Current (A) |
6.8 |
|
Power Supply |
3φ-380V-50HZ |
|
Safety Protection |
Phase reversion protection, Phase lack protection, Overload current protection, |
|
Number of Refrigeration Circuit |
1 |
|
Capacity Control (%) |
0, 100 |
|
Refrigerant |
R22 |
|
Condenser |
Ripple Aluminum Fins around Cooper Pipe |
|
Power lnput of Fan (KW) |
0.5 |
|
Evaporator |
Pipe Coil Type |
|
Water Side Max Pressure (MPa) |
- |
|
Dia.of Pipe to Evaporator (inch) |
1" |
|
Chilled Water Flow (L/m) |
26.4 |
|
Evaporator Water Pressure drop (kPa) |
- |
|
Running Noise dB(A) |
72 |
|
Tank Volume (L) |
80 |
|
Total weight (Kg) |
130 |
|
Dimension L×W×H |
1000×650×1500 |
|
Product Show:
Product Certificate:
| Company profile |
|
Shenzhen Jinhuali Technology Co.,Ltd. is a modern large enterprise, which integrates technology, industry and trade. It is a professional enterprise that provides central A/C, refrigeration plant, eletromechanical device, electric equipment and electronics, as engineering design and installation service. HUALI takes an area of over 100,000m2 with an asset of more than 100 millions and empolyee of more than 500 persons, and its has 5 branch companies in the rest of China.
|
