Specifications
jaw crusher1.ISO9001:2000
2.Price:negotiable
3.Capacity:50-120T/H
4..Large crushing ratio
2014 China Suppliers of jaw crusher
Product Information
Jaw crusher is a crushing machine that is researched and developed very early. With simple and solid structure, reliable work, easy maintenance and repair and low production and construction fees, it has long been widely used for the coarse, medium and fine crushing of various kinds of ores and rocks whose compression strength is 147~245MPa in many industrial departments such as metallurgy, chemistry, building material, power plant and transportation.
Operational principle
The working manner of this series crushing machine is dynamic extrusion type, and its working principle goes like this: the electro motor drives the belt and belt wheel to make the movable jaw to move up and down through the eccentric shaft, and then movable jaw goes up, the angle between the toggle pate and the movable jaw is bigger, thus pushing the movable jaw to get close to the fixed jaw, and at the same time, the materials are crushed or smashed, thus reaching the goal of crushing; when the movable jaw goes down, the angle between the toggle pate and the movable jaw is smaller, under the effect of the draw bar and the spring, the movable jaw moves always from the fixed jaw, and then the crushed materials will be discharged out from the lower mouth of the crushing chamber.

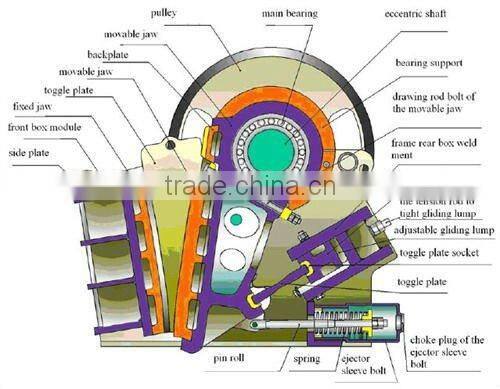

Fittings
This machine is mainly making up by rack, move jaw, eccentric shaft, gnathostegite, bracket, etc.

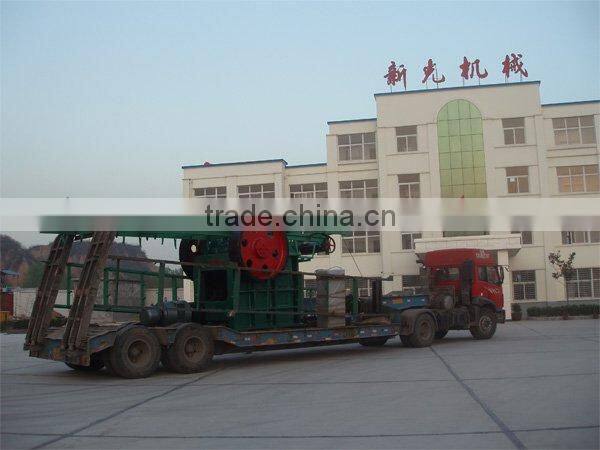

Delivery Scene
This isΦ600*900 jaw crusher, it is prepare transported to Cambodia. Besides domestic markets, our products have been exported to West Asia, Central Asia, Africa and Europe, winning praise from the government and trust from the society and customers.
Technical Parameters
PEX-250×1200 |
250×1200 |
210 |
25-60 |
20-61 |
330 |
37 |
9.7 |
PEX-300×1300 |
300×1300 |
250 |
20-90 |
16-105 |
300 |
55 |
15.6 |
In correct operation & maintaining, the machine is guaranteed for one year since leaving our factory excludes the electric elements.
Installation:
(1) If installation is needed, Xinguang(the seller) will dispatch a technician to the buyer’s factory abroad to assist regulating the machine with service charge USD50.00/working day for one technician. The buyer should assist Xinguang’s technician to get the Chinese technician's visa and should pay for the roundtrip air ticket and the local accommodation.
(2) If installation is needed, the buyer shall make the following preparation before arrival of technicians.
a) Position the machine in the buyer’s factory.
b) Prepare necessary electric wiring.
c) Prepare material of trial running.
Company Scene
Zhengzhou Xinguang Mining Machinery Manufacturing Co., Ltd was founded in the 1980s, now has become a group company which own many branches in China and abroad. As a professional mining machinery manufacturer, we provides complete sets of mine selection machines, sand making equipment, cement making equipment, and compound fertilizer equipment, with a production capacity ranging from five tons to five thousand tons per day
Customers visiting
Until now, we have successful cooperation with more than 8000 mineral processing units and individuals in China, Asia, Africa, Europe, North and South America etc 40 countries. When they visited our company, most of them said they are surprised for our company. Because we have the biggest workshop, the good service attitude, and professional guidance.
Certificates
Until now, we have successful cooperation with more than 8000 mineral processing units and individuals in China, Asia, Africa, Europe, North and South America etc 40 countries. When they visited our company, most of them said they are surprised for our company. Because we have the biggest workshop, the good service attitude, and professional guidance.
