Specification
Jaw crusher
1.Uniform finished size.
2.Low consumption.
3.Easy maintenance.
Product Description
Jaw crusher is a crushing machine that is researched and developed very early. With simple and solid structure, reliable work, easy maintenance and repair and low production and construction fees, it has long been widely used for the coarse, medium and fine crushing of various kinds of ores and rocks whose compression strength is 147~245MPa in many industrial departments such as metallurgy, chemistry, building material, power plant and transportation. In recent years, to satisfy the requirement of crushing micro-carbon ferro chrome with high strength and high hardness in the industrial departments of mining. Our company has specially manufactured powerful jaw crusher.
Working principle
The working manner of this series crushing machine is dynamic extrusion type, and its working principle goes like this: the electro motor drives the belt and belt wheel to make the movable jaw to move up and down through the eccentric shaft, and then movable jaw goes up, the angle between the toggle pate and the movable jaw is bigger, thus pushing the movable jaw to get close to the fixed jaw, and at the same time, the materials are crushed or smashed, thus reaching the goal of crushing; when the movable jaw goes down, the angle between the toggle pate and the movable jaw is smaller, under the effect of the draw bar and the spring, the movable jaw moves always from the fixed jaw, and then the crushed materials will be discharged out from the lower mouth of the crushing chamber. With the continuous rotation of the elector motor, the moveble jaw of the crusher will do periodic motion to crush and discharge the material , thus realize mass production.

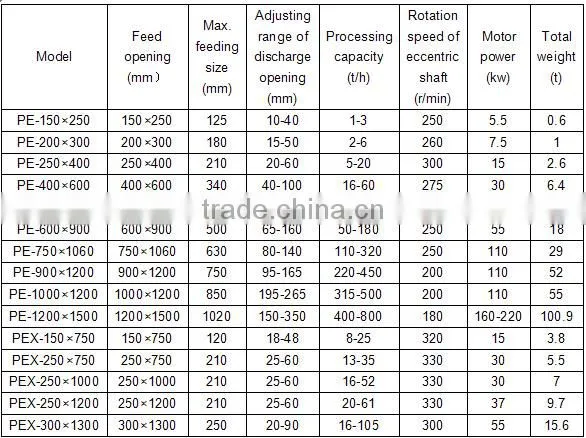

Technical Parameter

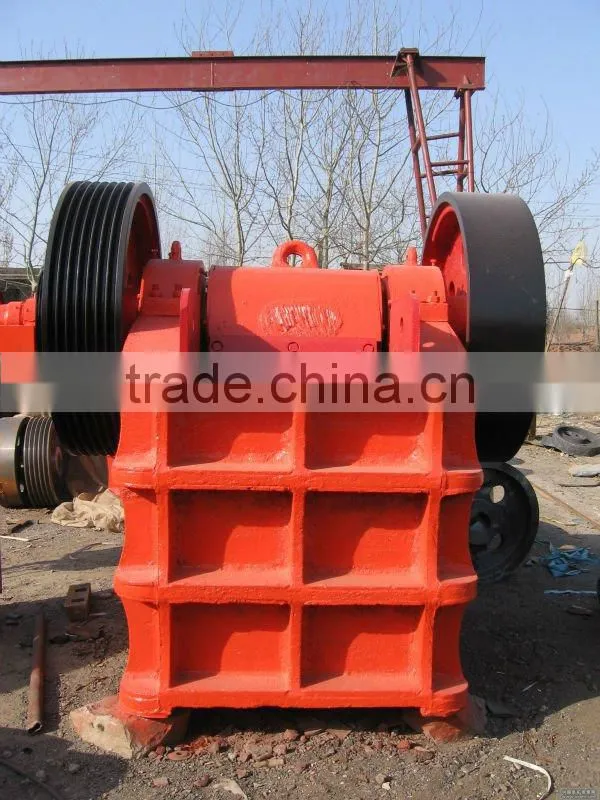

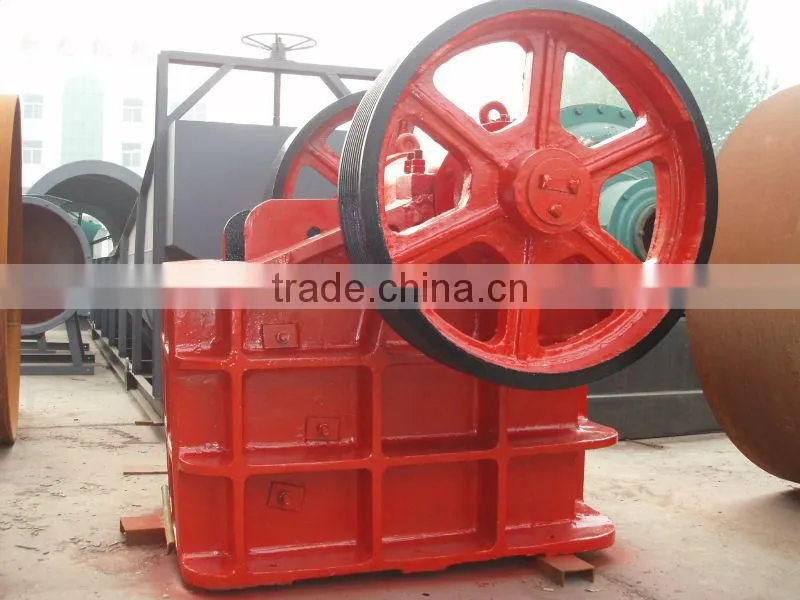

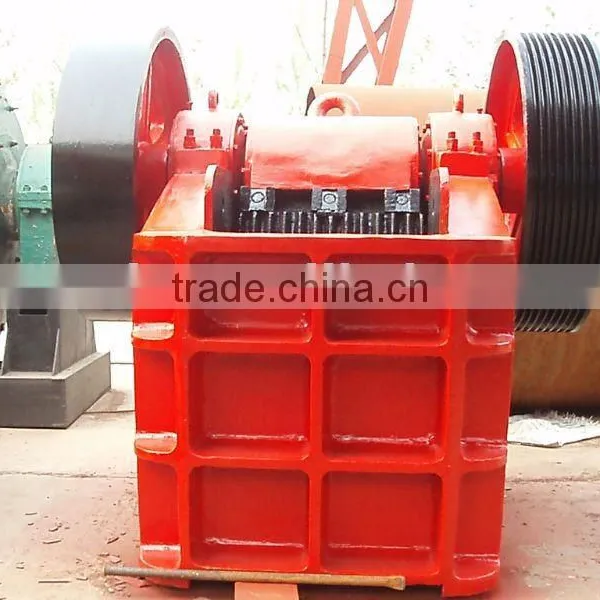

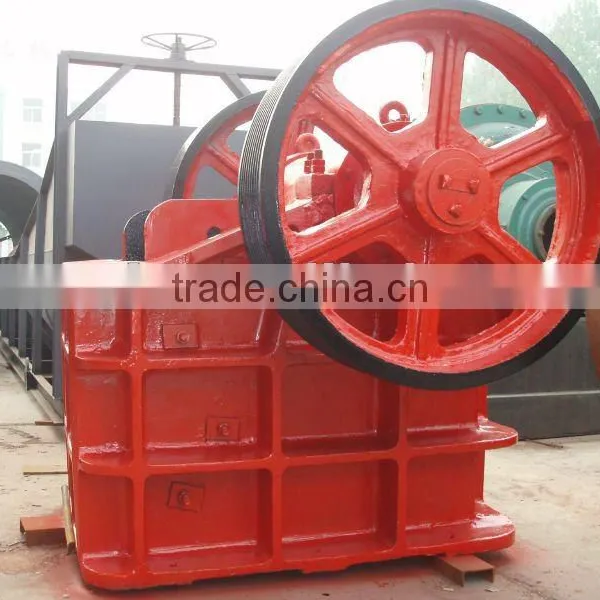

Jaw Crusher Pictures
