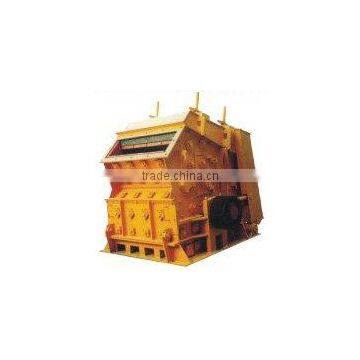

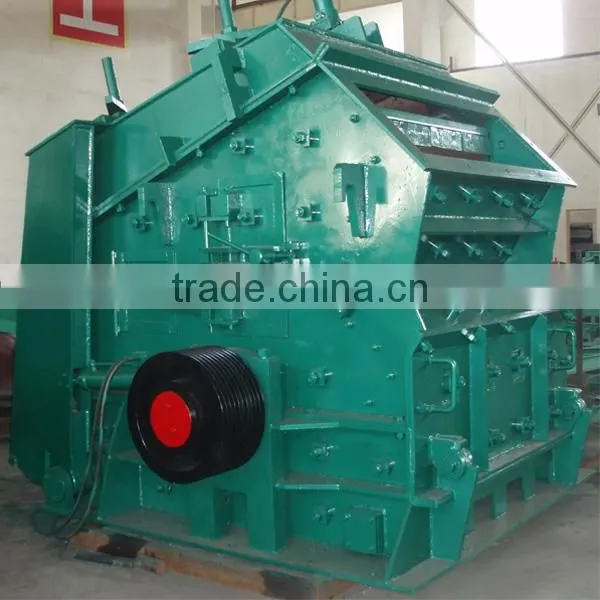

Help CenterPF Series Impact Crusher
Related Products
-
High Quality Jaw Crusher With Low PriceUS$ 1,000 - 9,999MOQ: 1 Set -
Stone Crusher Jaw CrusherUS$ 1,000 - 9,999MOQ: 1 Set
-
Vibrating Screen for MineralUS$ 1,000 - 25,000MOQ: 1 Set
-
Vibrating Screen SeparatorUS$ 1,000 - 25,000MOQ: 1 Set
-
High Capacity Vibrating Screen in ChinaUS$ 1,000 - 25,000MOQ: 1 Set
Working Principle
When the Impact Crusher works, the motor drives the rotor rotate of the Impact Crusher with high speed, on the rotor where installed the hammers. When the materials get into the area which the hammers affect, under the impact function of the hammer at a high speed, the materials are thrown to the impact device above the rotor continuously. And then the materials are rebounded from the impact liner to the area where the hammers effects for being re-crushed. The materials from large to small all to be crushed at the impact chamber repeatedly. The process won't stop till the material are crushed to the required size and then discharged from outlet of the Impact Crusher.
Brife Introduction of Impact Crusher
The series of impact crusher are designed for crushing ores and rocks with particle size less than 120-300mm and compression strength no more than 320 Mpa. It has a feature of big primary reduction ratio, high efficiency, cubic shape, selectable crushing and etc. It is suitable for crushing different compression strength of rocks and widely used in mining, cement and concrete industries.
Advantages and characteristics
High-efficiency and energy conservation. Innovative structure seamless connection. Cubic Shape for the final products.
The discharge opening can be adjusted
Easy maintenance and reliable operation. It is widely used in water and electricity, expressway, sand and stone, crushing fields.

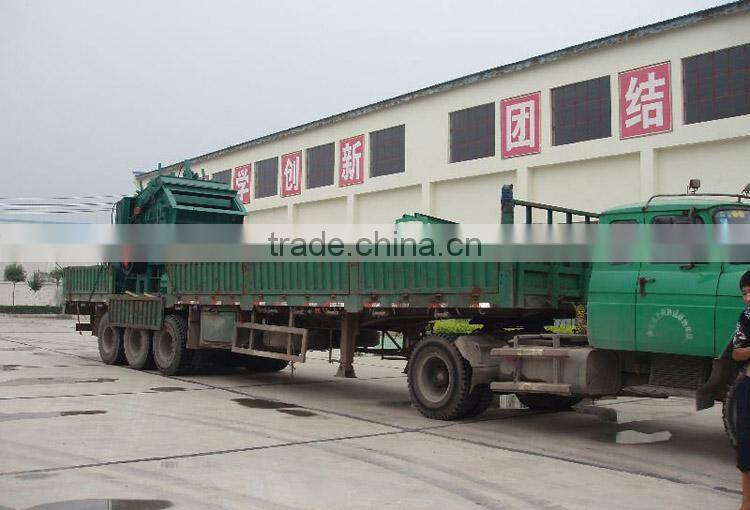

Delivery Arrangement
Technical Parameter
Model |
Specifications (mm) |
Feed opening (mm) |
Max.feeding side length (mm) |
Capacity (t/h) |
Power (kw) |
Total weight (t) |
PF-1007 |
Φ1000*700 |
400*730 |
300 |
30-70 |
45 |
7 |
PF-1010 |
Φ1000*1050 |
400*1080 |
350 |
50-90 |
55 |
13 |
PF-1210 |
Φ1250*1050 |
400*1080 |
350 |
70-130 |
110 |
16 |
PF-1214 |
Φ1250*1400 |
400*1430 |
350 |
100-180 |
132 |
20 |
PF-1315 |
Φ1320*1500 |
860*1520 |
500 |
130-250 |
220 |
24 |
PF-1320 |
Φ1320*2000 |
860*2030 |
500 |
300-350 |
300 |
27 |
