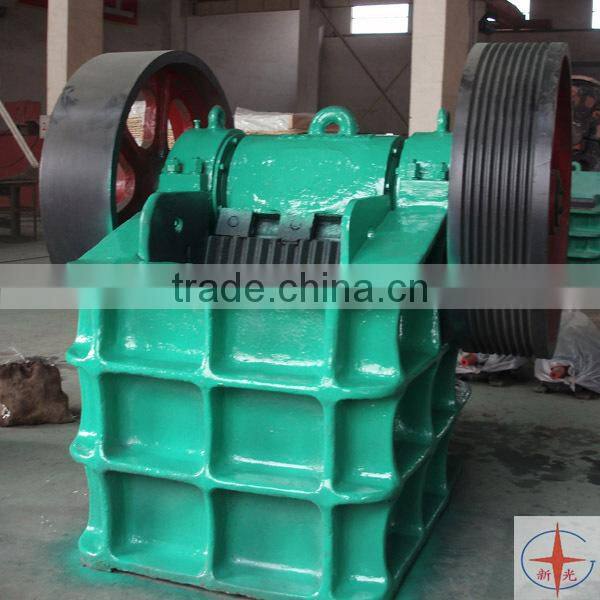

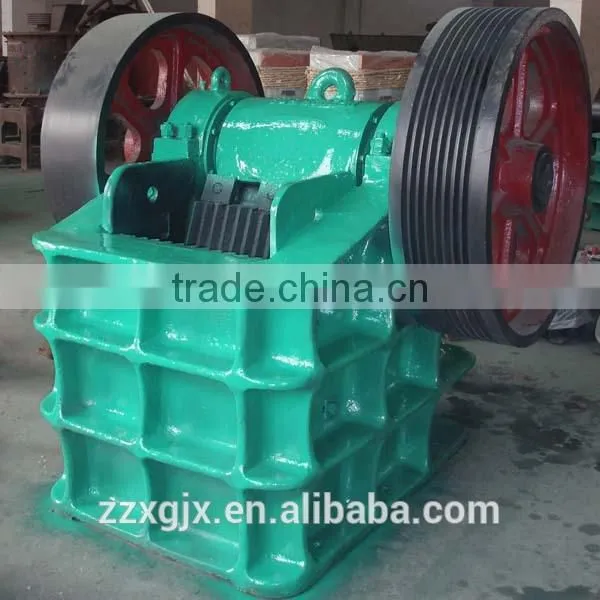

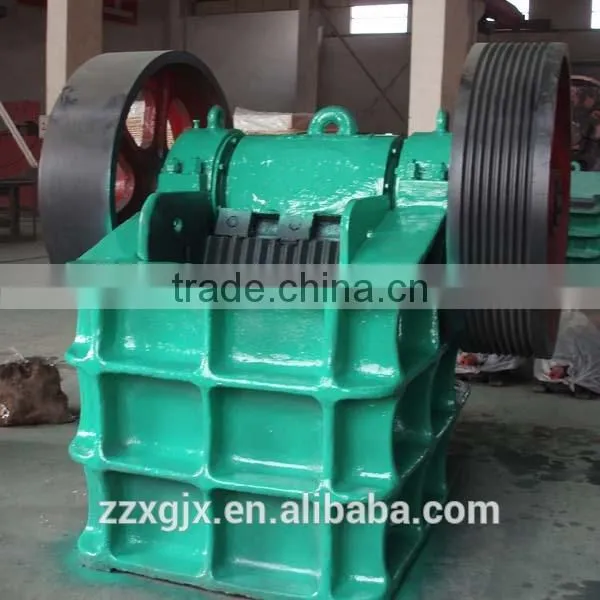

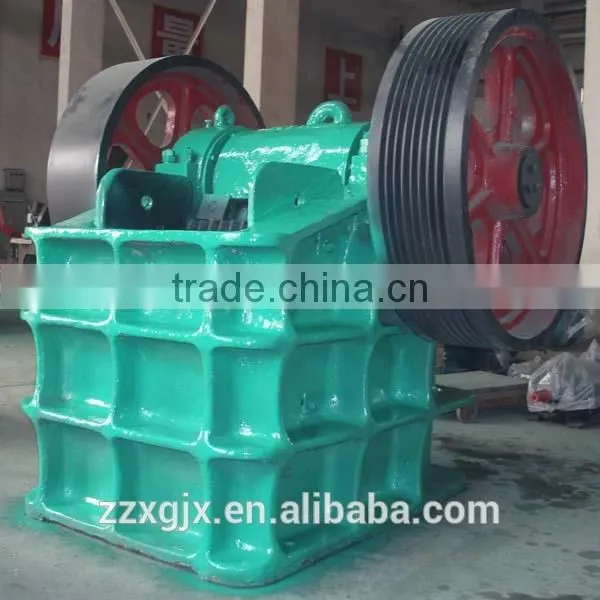

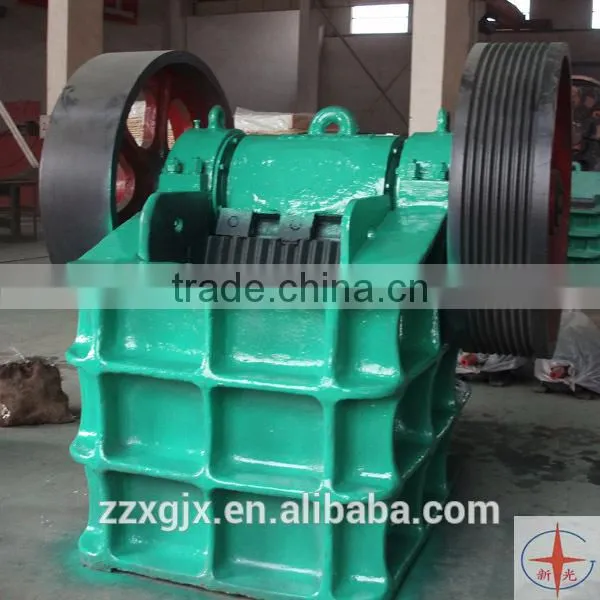

High capacity stone jaw crusher
The jaw crusher is a kind of crude crushing equipment widely used at home and abroad. It mainly applies for primary and crude crushing of all kinds of hard rocks and block materials . Large and medium-sized jaw crushers are the leading products of our company and have been in the lead now both at home and abroad .
Application:
It is widely applied for primary crushing of hard materials . And it is widely used in the following industries : minerals , quarry,building materials, road , rail way , water conservancy and hydropower , and so on .
Jaw crusher Features:
1. Jaw crusher is simple structure, easy maintenance;
2. Jaw crusher is stable performance;
3. Jaw crusher is even final particles and high crushing ratio.
Operating principle :

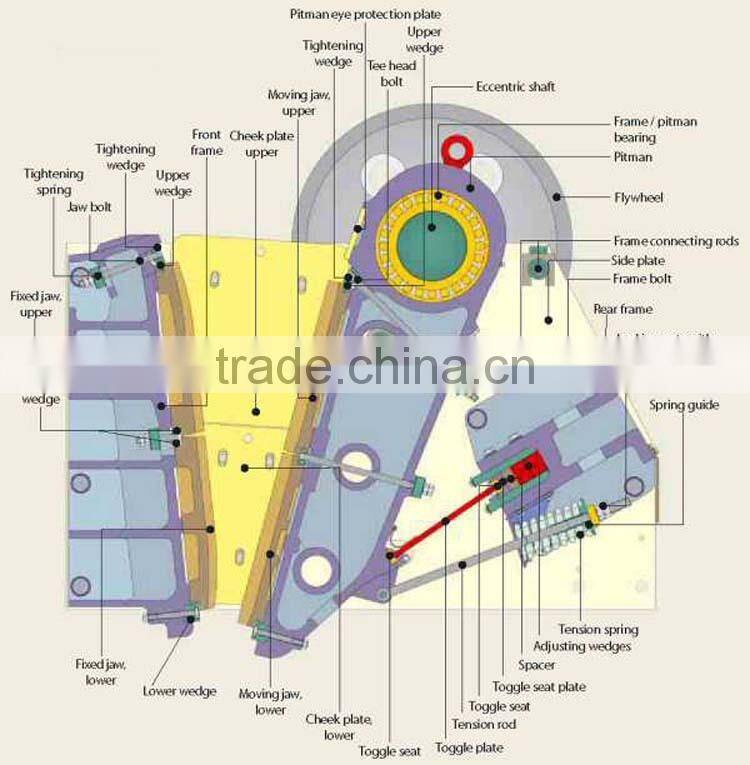

The motor drives the belt wheel ,and makes movable jaw up and down by eccentric shaft. When the movable jaw rises , the angle between the fixed jaw and movable jaw gets larger , and the materials can be crushed to reach the crushing target. When the movable jaw is down , the angle between the fixed jaw and movable jaw becomes smaller. The movable jaw plate leaves the fixed jaw plate under the function of drawbar and spring , and then the crushed materials are discharged from the lower outlet of the crushing cavity.
Features: It features of simple structure , large crushing ratio, high output , even particles , convenient maintenance , low production cost and so on .
|
model
|
specification
|
Size of the feeder opening L×W(mm)
|
Max feeding size (mm)
|
Adjusted range of output (mm)
|
Capacity(t/h)
|
Spindle speed (r/min)
|
motor
|
Weight (t)
|
||
Model |
Power (km) |
|||||||||
PE-150 |
150×250 |
250 |
150 |
125 |
15-45 |
1-4 |
285 |
Y2-132S-4 |
5.5 |
1000 |
PE-200 |
200×300 |
300 |
200 |
180 |
20-70 |
2-8 |
250 |
Y2-160M-4 |
11 |
1500 |
PE-250 |
250×400 |
400 |
250 |
210 |
20-80 |
5-20 |
280-320 |
Y2-180L-6 |
15 |
3000 |
PE-400 |
400×600 |
600 |
400 |
350 |
40-100 |
25-64 |
250 |
Y2-250M-8 |
30 |
6800 |
PE-500 |
500×750 |
750 |
500 |
425 |
50-100 |
45-75 |
280 |
Y2-280M-6 |
55 |
12500 |
PE-600 |
600×900 |
900 |
600 |
500 |
72-160 |
56-192 |
250 |
JR117-8 |
80 |
16800 |
PE-750 |
750×1060 |
1060 |
750 |
630 |
80-140 |
80-220 |
250 |
YR315S-8 |
90 |
2700 |
PEX-150 |
150×750 |
1000 |
150 |
120 |
10-40 |
8-35 |
300 |
Y2-180L-6 |
15 |
3500 |
PEX-250 |
250×750 |
750 |
250 |
210 |
15-50 |
15-45 |
320 |
Y2-280S-8 |
37 |
6350 |
PEX-250 |
250×1000 |
750 |
250 |
210 |
15-50 |
13-35 |
300 |
Y2-250M-8 |
30 |
6010 |
PEX-250 |
250×1200 |
1200 |
250 |
210 |
15-50 |
20-60 |
320 |
J2-280M-8 |
4 |
7700 |
PEX-300 |
300×1300
|
1300 |
300 |
250 |
20-90 |
20-95 |
300 |
Y2-315M-8 |
75 |
11302 |

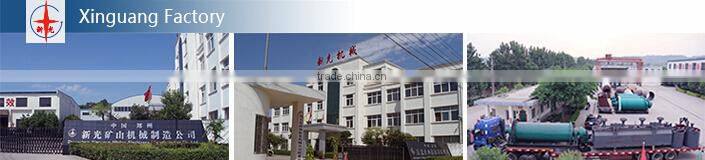

Zhengzhou Xinguang Mining Machinery Manufacturing Co., Ltd was founded in the 1980s, now has become a group company which own many branches in China and abroad. As a professional mining machinery manufacturer, we provides complete sets of mine selection machines, sand making equipment, cement making equipment, and compound fertilizer equipment, with a production capacity ranging from five tons to five thousand tons per day.
