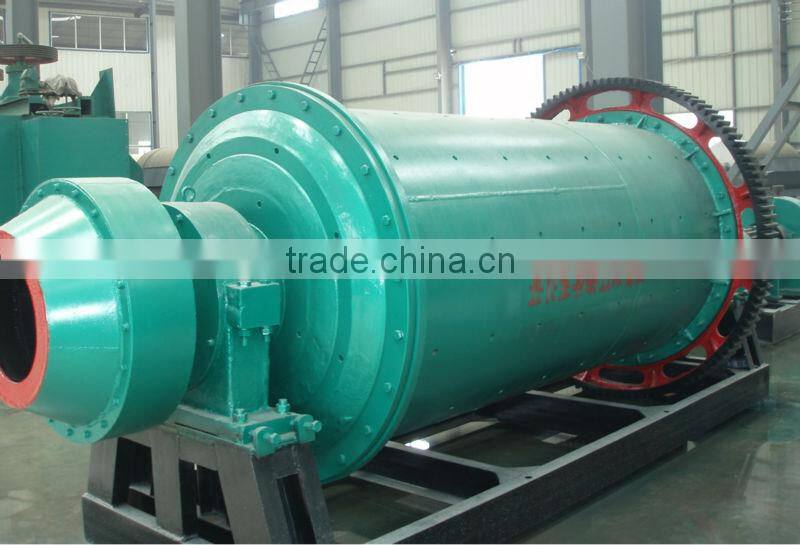

china manufacturer high quality ball mill, ball mill price, small ball mill
- 10 Set / Sets per Month
- Qingdao Port Shanghai Port.
- T/T
Product Details
Condition: | New | Type: | Ball Mill | Motor Type: | AC Motor |
Power(W): | 75kw | Capacity(t/h): | 8t | Place of Origin: | Henan, China |
Brand Name: | XG | Model Number: | 1500x3500 | Dimension(L*W*H): | 1500x3500x1500 |
Weight: | 16.5t | Certification: | ISO9001:2002 | Warranty: | 12 months. |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
How is ball mill maintenance?
Ball Mill Maintenance Content: fine maintenance, mainly inspect the oil amount, adjust the gap between different parts, firm the bolt, replace the impact plate or inspect the wearing of impact plate, mend the feeder;
Minor maintenance: inspect the wearing of the tooth surface and the impact plate, replace it when necessary;
Medium maintenance: replace the spare parts of the feeding opening, replace the transmission pinion and bearing ,disassembly the reducer for inspection. Big gear can be adjusted according to different situation, hollow shaft should be measured after 3-5 years’ operation;
Large maintenance: disassembly the whole machine for washing, measuring, and replace or mend the big gear, hollow shaft, bowl liner, transmission shaft , pinion and shell according to the wearing of the spare parts. After large maintenance, the machine must experience preoperational before it works.
Working Manual.

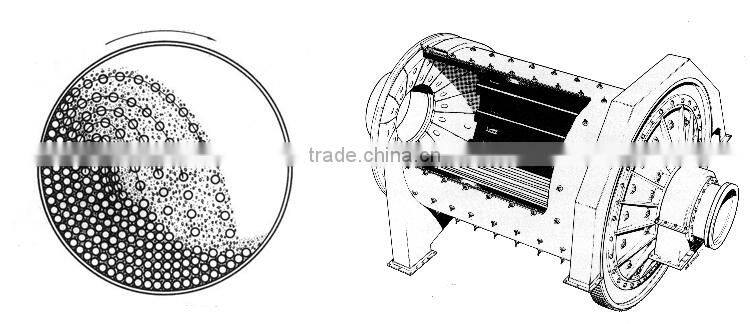

To use the Ball Mill, the material to be ground is loaded into the Neoprene barrel that contains grinding media. As the barrel rotates, the material is crushed between the individual pieces of grinding media that mix and crush the product into fine powder over a period of several hours.
Quite simply, the longer the Ball Mill runs, the finer the powder will be. Ultimate particle size depends entirely on how hard the material you're grinding is, and the time how long the Ball Mill runs.
Spare Parts.
Machine structure: this machine consists of feeding part,feeding part Ⅱ, shell part, discharge part, bearing part, transmission part, electric part and base part.

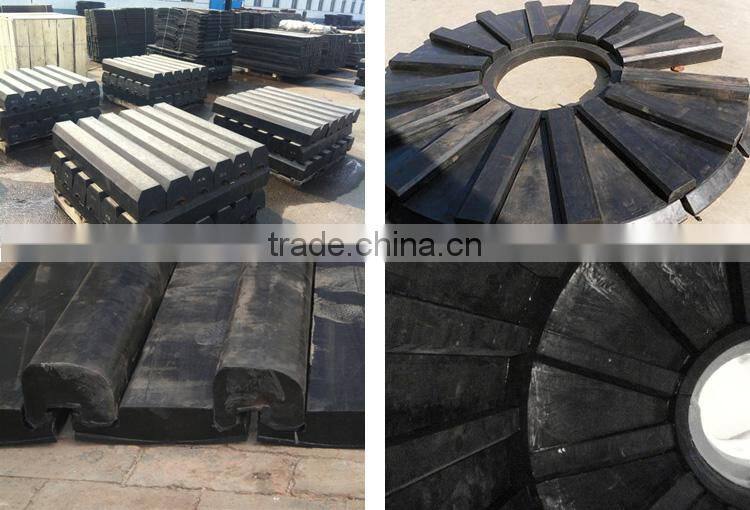

Wearing Parts:bull gear,pinion gear,main bearing,reduction box bearing,reduction box,gear shaft,bearing,and scale board.
Technical data
Model | Shell rotation speed (r/min) | Ball load (t) | Feeding size (mm) | Discharging size (mm) | Capacity (t/h) | Motor power (kw) | Total weight (t) |
900×1800 | 41 | 1 | ≤15 | 0.075-0.89 | 0.33-1.6 | 15 | 3.8 |
900x2100 | 41 | 1.53 | ≤15 | 0.075-0.89 | 1.5-2.3 | 15 | 4.2 |
900×3000 | 40 | 2.3 | ≤20 | 0.075-0.89 | 1.7-2.5 | 22 | 5.5 |
1200×2800 | 36 | 4.22 | ≤25 | 0.074-0.4 | 1.5-3.7 | 37 | 8.5 |
1200×4500 | 31.3 | 5.2 | ≤25 | 0.074-0.4 | 1.2-7.5 | 45 | 12 |
1500×3500 | 32 | 8.55 | ≤25 | 0.074-0.4 | 3.3-8.2 | 75 | 17 |
1500×4500 | 32 | 9 | ≤25 | 0.074-0.4 | 4-10 | 85 | 20 |
1500×5700 | 29.2 | 14 | ≤25 | 0.074-0.4 | 2-15 | 90 | 22 |
1830×3600 | 26.4 | 10 | ≤25 | 0.074-0.4 | 3.8-12 | 155 | 27 |
1830×4500 | 28 | 15 | ≤25 | 0.074-0.4 | 5-18 | 185 | 31 |
1830×7000 | 27.5 | 21 | ≤25 | 0.074-0.4 | 21 | 245 | 37 |
2100×3600 | 24.1 | 18.6 | ≤25 | 0.074-0.4 | 7.6-42 | 185 | 37 |
2100×4500 | 25 | 22 | ≤25 | 0.074-0.4 | 8-33 | 210 | 45 |
2100×7000 | 24 | 26 | ≤25 | 0.074-0.4 | 8-42 | 280 | 54 |
2200×3600 | 21 | 20 | ≤25 | 0.074-0.4 | 25-40 | 245 | 43 |
2200×4500 | 21.5 | 24 | ≤25 | 0.074-0.4 | 25-45 | 280 | 55 |
2200×7000 | 21.7 | 27 | ≤25 | 0.074-0.4 | 25-58 | 310 | 60 |
2400×3600 | 21.6 | 23 | ≤25 | 0.074-0.4 | 11-52 | 210 | 46 |
2400×7000 | 21 | 39.5 | ≤25 | 0.074-0.4 | 8.5-60 | 245 | 63 |
2600×13000 | 20 | 78 | ≤25 | 0.074-0.4 | As per process conditions | 570 | 116 |
2700×4500 | 21.7 | 39 | ≤25 | 0.074-0.4 | 12-59 | 320 | 68 |
2700×7000 | 20 | 42 | ≤25 | 0.074-0.4 | As per process conditions | 380-420 | 85-90 |
3200×4500 | 18 | 65 | ≤25 | 0.074-0.4 | As per process conditions | 630 | 137 |
3600×4500 | 17 | 90 | ≤25 | 0.074-0.4 | As per process conditions | 850 | 158 |
3600×6000 | 17 | 110 | ≤25 | 0.074-0.4 | As per process conditions | 1250 | 175 |
3600×8500 | 18 | 131 | ≤25 | 0.074-0.4 | 45.8-256 | 1800 | 252 |
4000×5000 | 16.9 | 121 | ≤25 | 0.074-0.4 | 45-208 | 1500 | 203 |
4000×6000 | 16.9 | 146 | ≤25 | 0.074-0.4 | 65-248 | 1600 | 218 |
4000×6700 | 16.9 | 149 | ≤25 | 0.074-0.4 | 45-252 | 1800 | 238 |
