Specifications

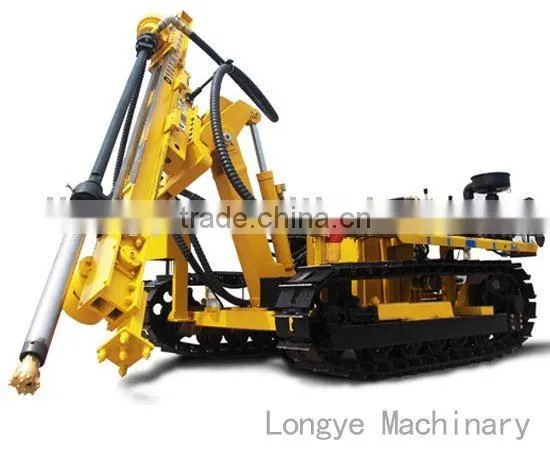

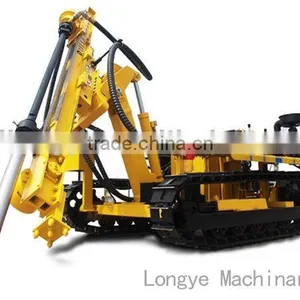

CTQ-D100Y core drilling machine,low air pressure hydraulic drilling rigCTQ-D100Y core drilling machine
CTQ-D100Y crawler hydraulic drilling rig,adopt new-style hydraulic technique which have low air consumption,large rotation torque.the structure of the drilling rig is compact,it is capable in climbing under 15 degree in slope. The minimum circumgrating radius is 2.8m,During drilling the slide-skid are support on the ground to ensure the drilling has good stability.
Application:
CTQ-D100Y crawler hydraulic drilling rig is mainly used in open cut ore mining,power station,road building for exploring the stone.
Technical parameter:
Total weight |
2600kg |
Bore diameter |
90-130mm |
Dimension |
4100*2030*2020 |
Bore depth |
30m |
Travelling speed |
2km/h |
Climb ability |
30° |
Feed stroke |
2000mm |
Working pressure |
0.7-1.0Mpa |
Ground clearance |
250mm |
Air consumption |
7-10m3/min |
Slip frame pitch degree |
Up and down 100 degree each |
Slide kid slanting allowance |
Left 35 degree right 10 degree |
Rated motor power |
18.6kw |
