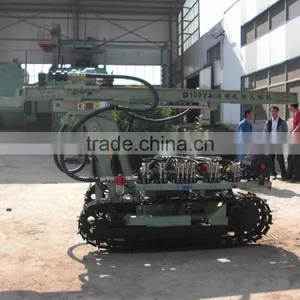

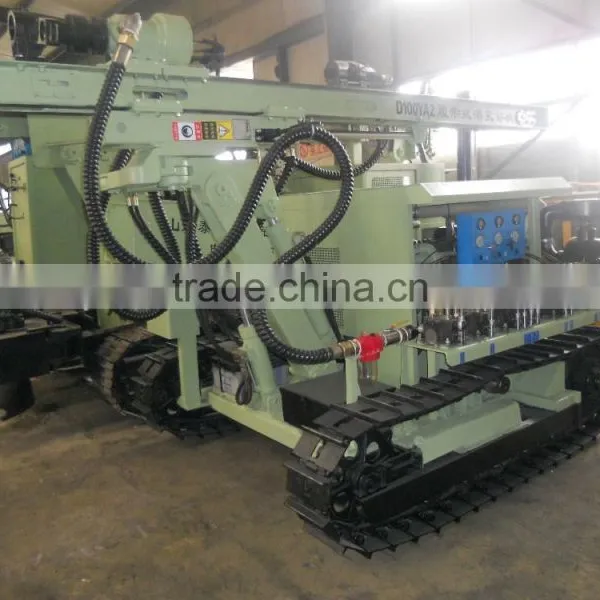

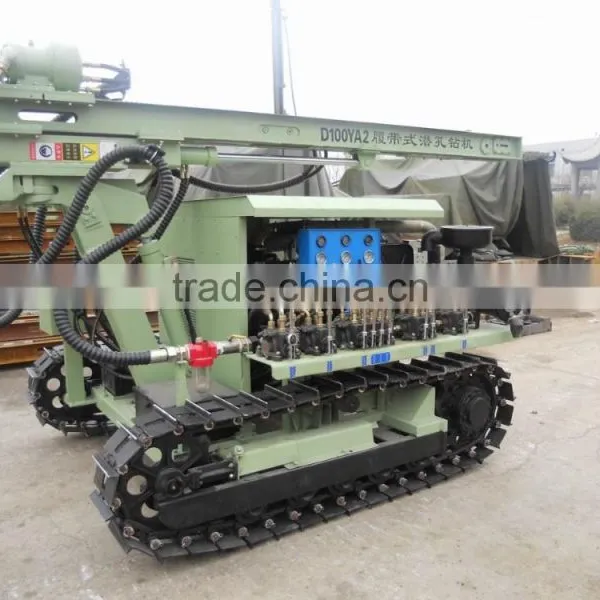

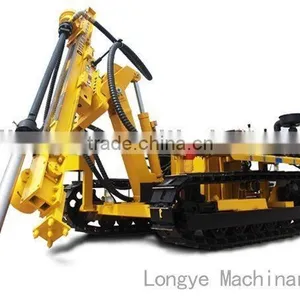

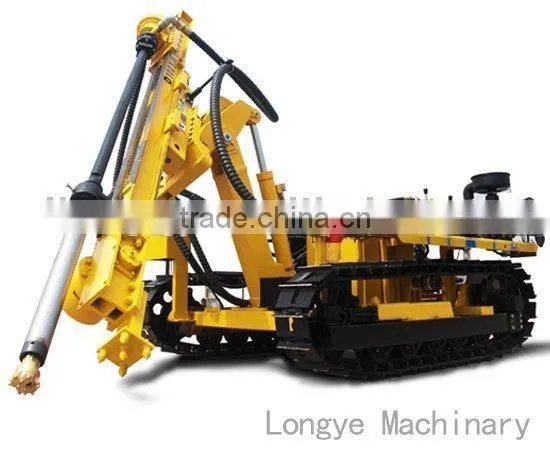

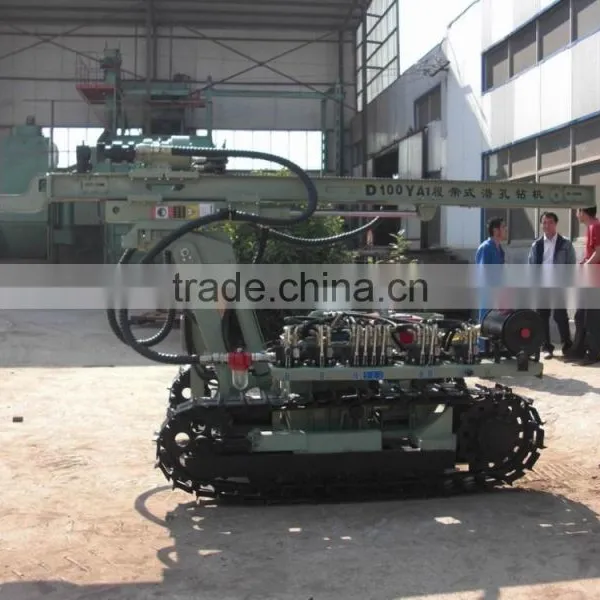

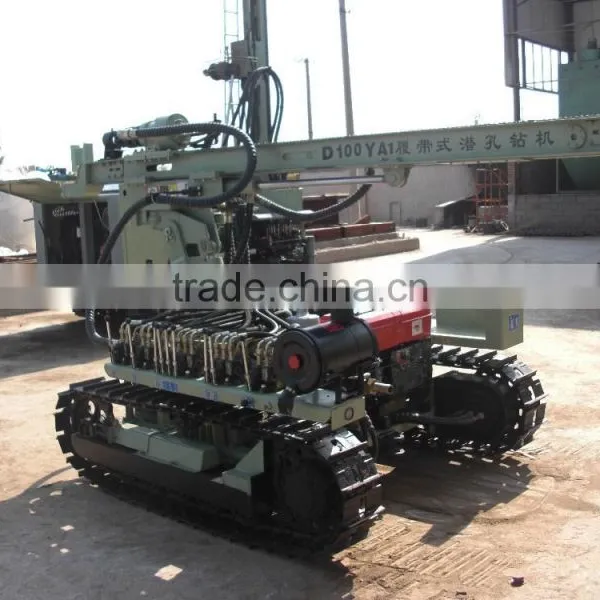

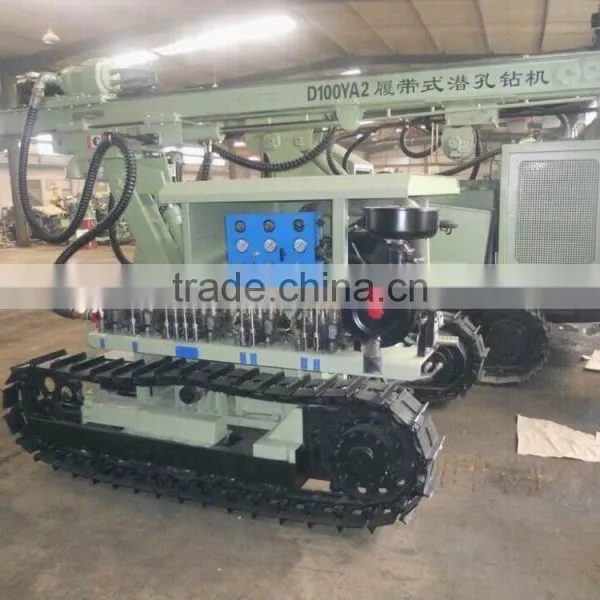

Hydraulic Mobile Track Drilling Rig Blasting Hole Drilling Rig
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Other
Place of Origin:
Shandong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Type
Other
Place of Origin
Shandong, China
Brand Name
Longye
Model Number
CTQ-D100YA1
Usage
Ore
Voltage
220V
Power(W)
33KW
Dimension(L*W*H)
4100*2030*2020
Weight
2800KGS
Certification
CE
Warranty
1 YEAR
After-sales Service Provided
Engineers available to service machinery overseas
CTQ-D100YA1 Hydraulic crawler Dth blasting hole drilling rig
is mainly used in open cut ore mining,power station,road building for exploring the stone.
Total weight |
2600kg |
Bore diameter |
90-130mm |
Dimension |
4100*2030*2020 |
Bore depth |
30m |
Travelling speed |
2km/h |
Climb ability |
30° |
Feed stroke |
2000mm |
Working pressure |
0.7-1.0Mpa |
Ground clearance |
250mm |
Air consumption |
7-10m3/min |
Slip frame pitch degree |
Up and down 100 degree each |
Slide kid slanting allowance |
Left 35 degree right 10 degree |
Rated motor power |
18.6kw |
