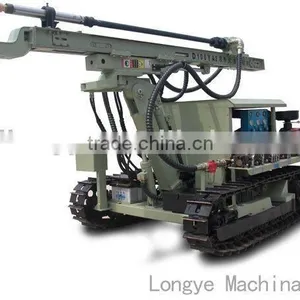

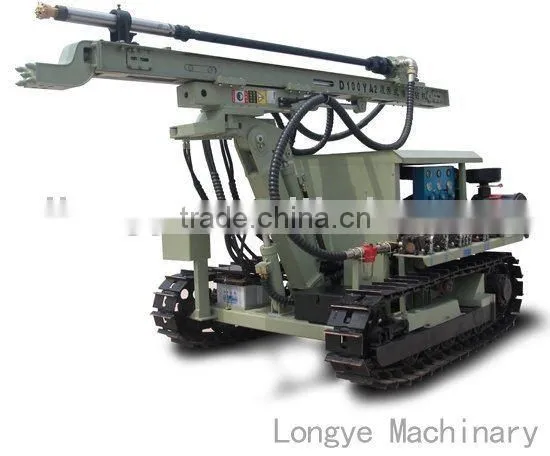

(CTQ-D100YA2) hydraulic mobile drilling machine

Specifications

CTQ-D100YA2 hydraulic drilling machine,low air pressure hydraulic drilling rig

CTQ-D100YA2 hydraulic mobile drilling machine



CTQ-D100YA2 crawler hydraulic drilling machine

,adopt new-style hydraulic technique which have low air consumption,large rotation torque.the structure of the drilling rig is compact,The minimum circumgrating radius is 2.8m,During drilling the slide-skid are support on the ground to ensure the drilling has good stability.

Walking system adopt a large torque agencies to ensure that a strong driving force for the output.

Elevating and push system use the realiable performance fuel tank to complete working.

Ratation system can change the speed easily,It fulill different requirements in different working conditions.

The usage o double-pump reduce the cost o damage odds and maintance costs.

Total weight	2800kg
Bore diameter	90-130mm
Dimension	4100*2030*2020
Bore depth	30m
Travelling speed	2km/h
Climb ability	30°
Feed stroke	2000mm
Working pressure	0.7-1.0Mpa
Ground clearance	250mm
Air consumption	7-10m3/min
Slip frame pitch degree	Up and down 100 degree each
Slide kid slanting allowance	Left 35 degree right 10 degree
Rated motor power	33kw
