Specifications
CTQ-G140YF anchor drilling rigdepth:60m
hole dia:115-140mm

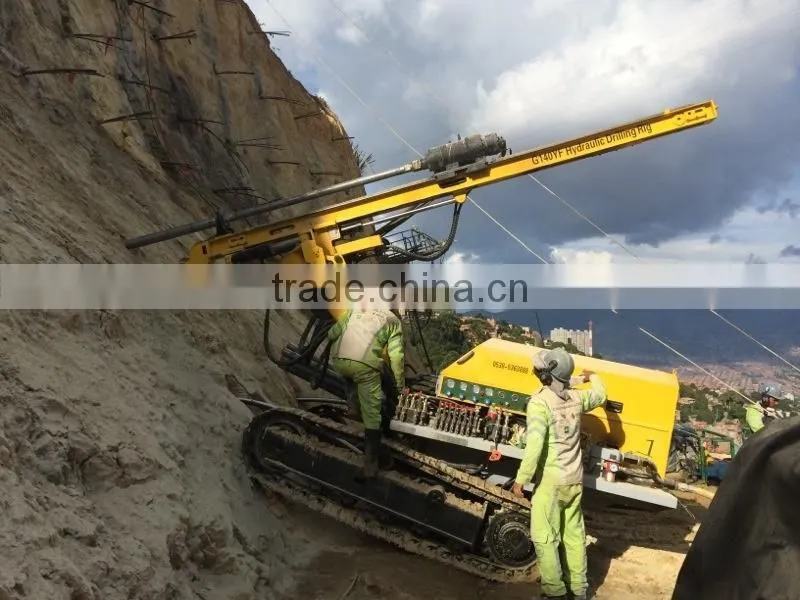

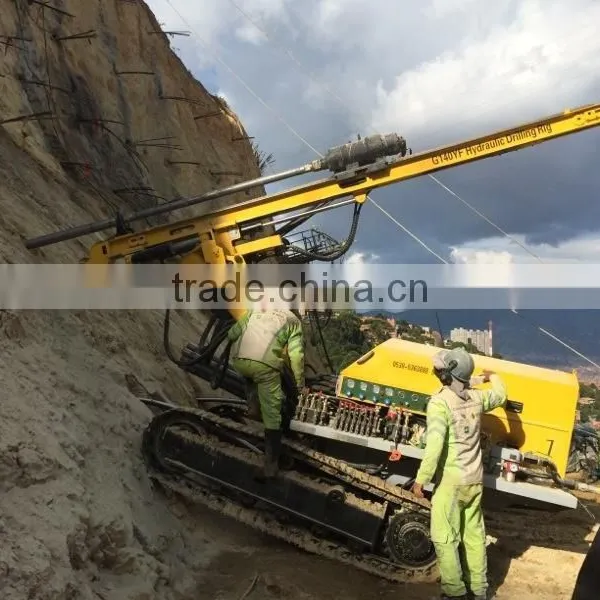

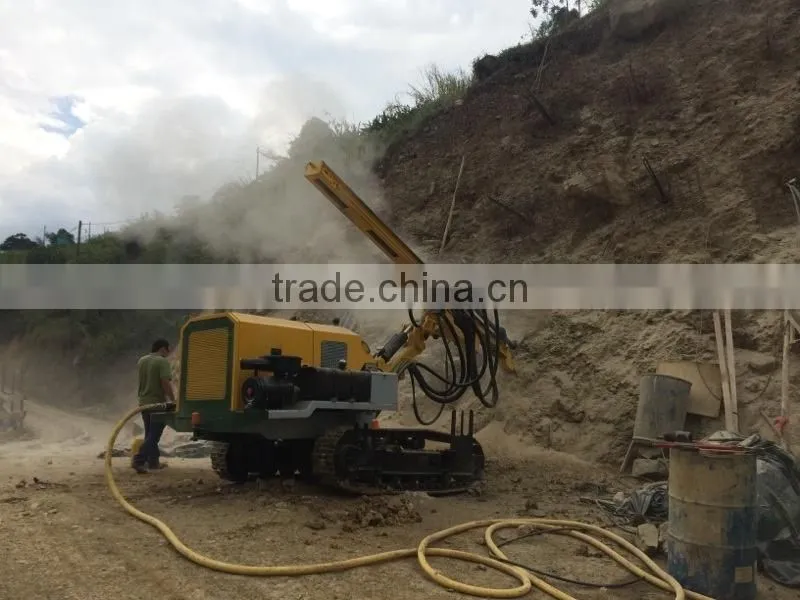

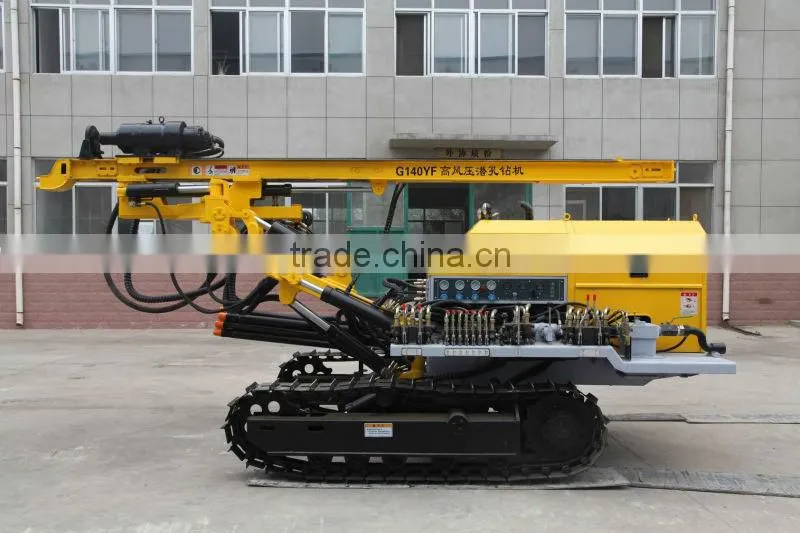

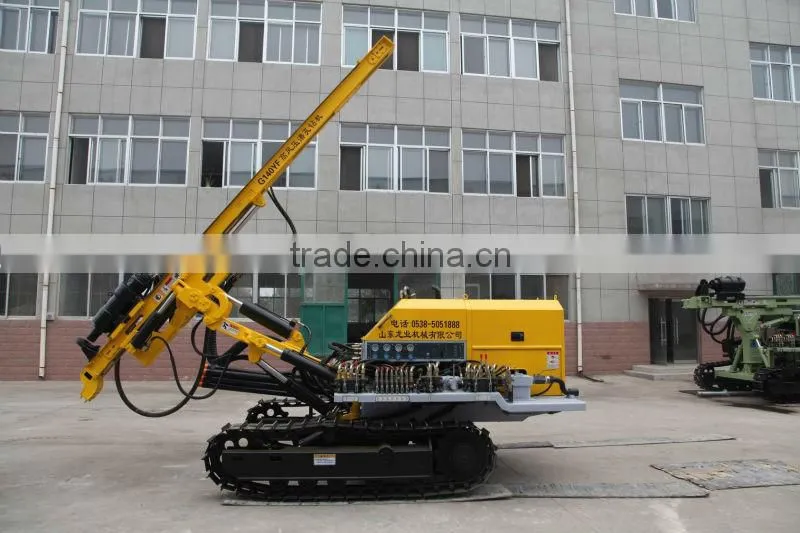

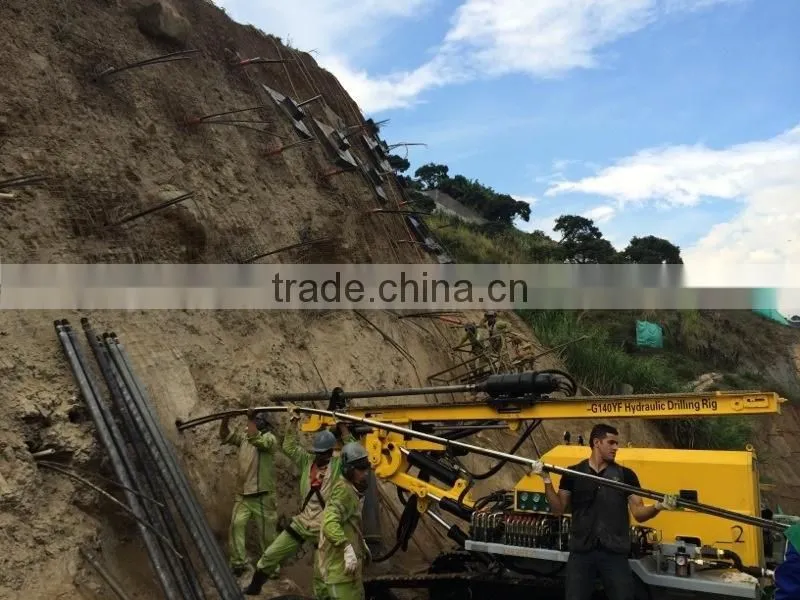

CTQ-G140YF Anchor drilling rig blasting hole drilling rig
Application :
CTQG140Y Hydraulic Crawler drilling rig,using new type hydraulic technology,low consumption,large rotary torque.the rig structure is compact.when drilling,the mast supported on the ground,borehole stability is good.
CTQG140Y mainly use for open mining DTH blasting construction,electrical power stations ,road building etc.
specification:
Working pressure |
1.05-2.46Mpa |
Air consumption |
10-20m³/min |
Drilling diameter |
115/140mm |
Drilling depth |
60m |
Drill pipe diameter |
76mm |
Once promotion distance |
3000mm |
Rock (f) |
f=6-20 |
Climb ability |
40° |
Total weight |
4.8T |
Walking speed |
0---2.5km/h |
Rotary speed |
0---126r/min |
Mast pitch |
Up and down100° |
Mast slide |
Up and down 100° |
Zoom pitch |
Up and down 60° |
Zoom slide |
Left and right 70° |
Outside dimension |
5270X1960X2300 |
Hose power |
56KW |
