Hydraulic Rock Drill CTQ-G150Y for Sale

Hydraulic Rock Drill CTQ-G150Y for Sale photo-1

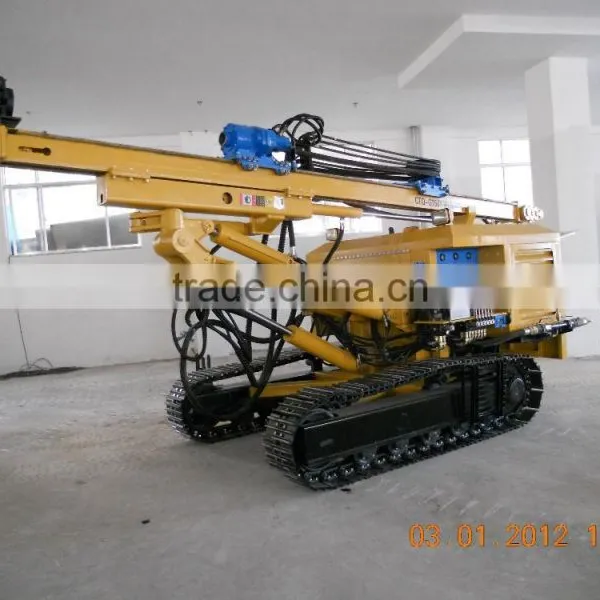

Hydraulic Rock Drill CTQ-G150Y for Sale photo-2

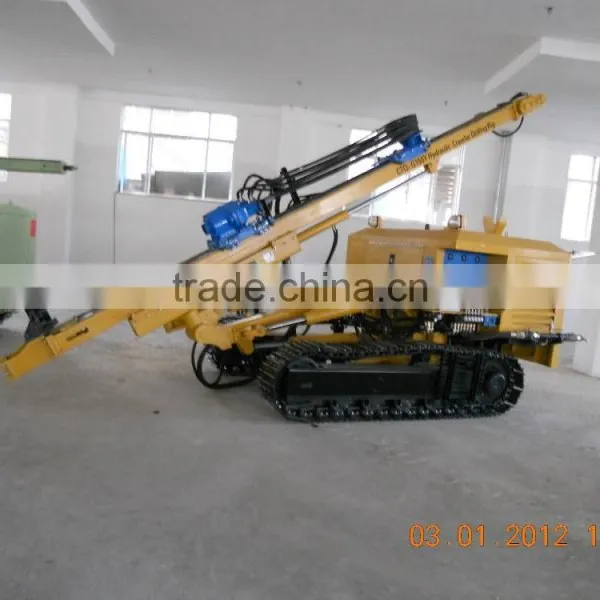

Hydraulic Rock Drill CTQ-G150Y for Sale photo-3

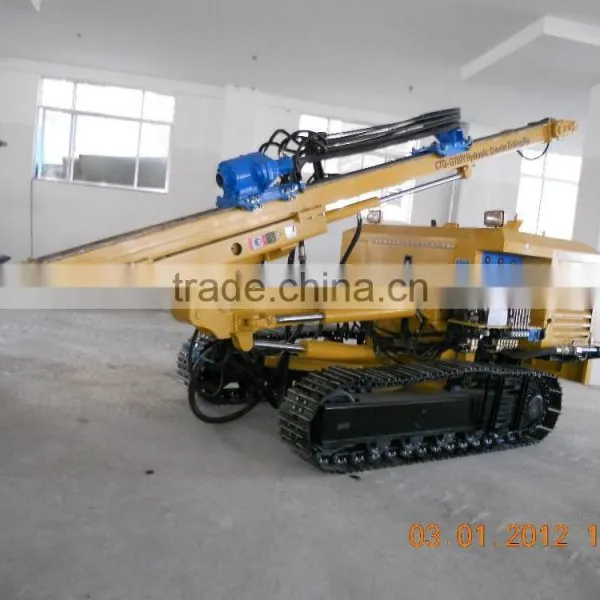

Hydraulic Rock Drill CTQ-G150Y for Sale photo-4

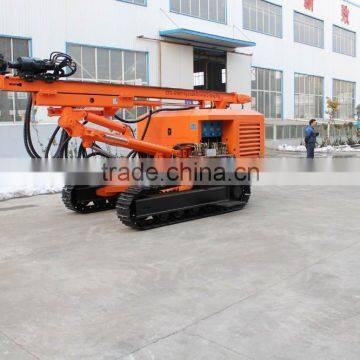

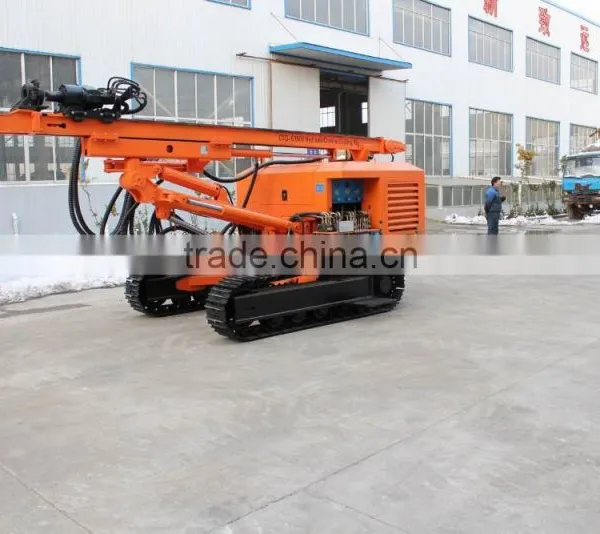

Hydraulic Rock Drill CTQ-G150Y for Sale photo-5

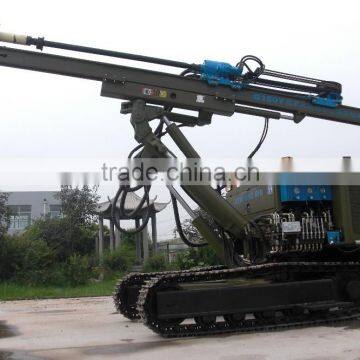

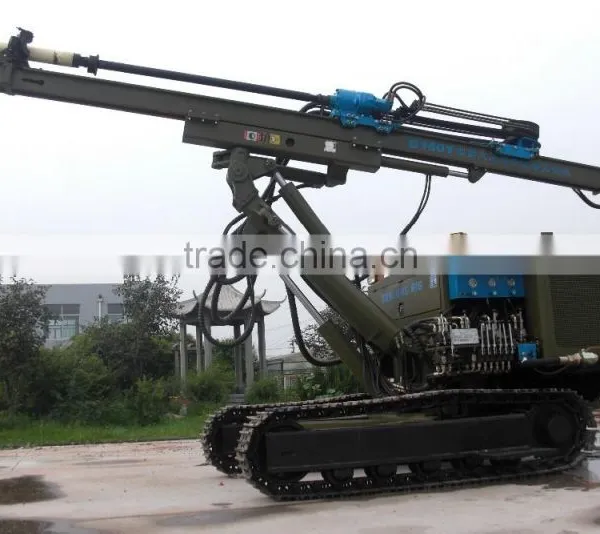

Hydraulic Rock Drill CTQ-G150Y for Sale photo-6
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Other
Power Type:
Diesel
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Other
Power Type Diesel
Place of Origin Shandong, China
Brand Name longye
Model Number CTQ-G150Y
Usage Ore
Voltage 220
Power(W) 56KW
Dimension(L*W*H) 5800*2070*2400
Weight 6300kgs
Certification CE
Warranty Main parts one year
After-sales Service Provided Engineers available to service machinery overseas

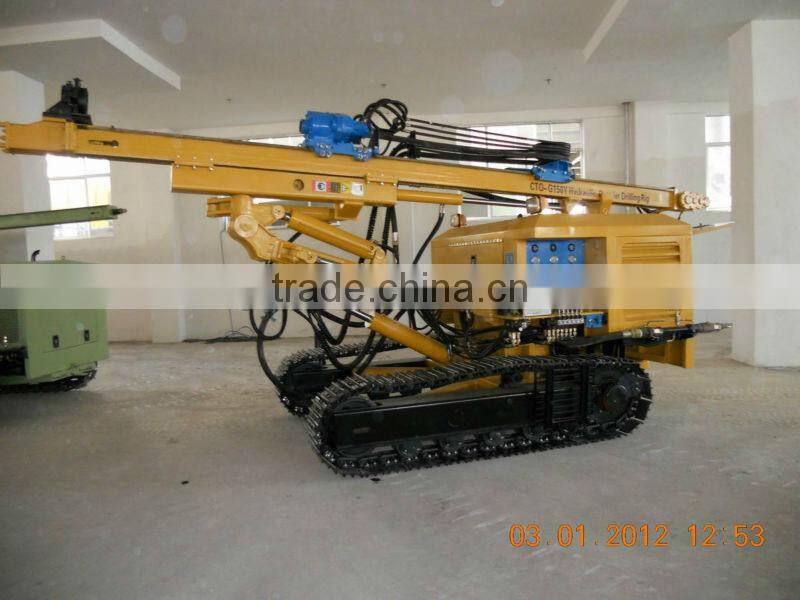

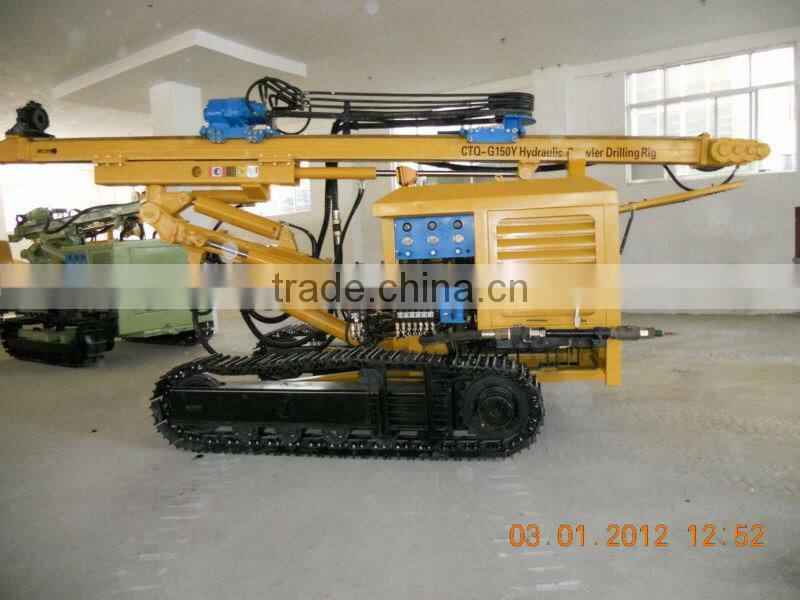

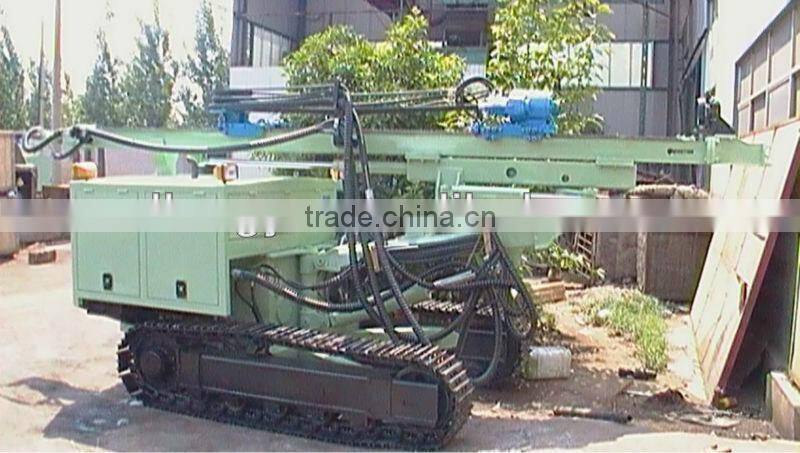

CTQ-G150Y Hydraulic rock drill

CTQ-G150Y drilling rig have the charter of low energy consumption,high efficiency,eeasily transportation.The operating has been implemented by hydro-system.Due to the double motoring design it has more stronger wrench in large hole operating.The flexibility and strange in climbing made it can working in most demanding area.The diameter of the driller is among 105-165mm and it is easily in maintenance.

Application:

This type of machine is opertism choice in opening are mining,hydro-power plant,electric power stations,and road building for exploraion the stone

Working pressure

1.2-2.46Mpa

Air consumption

11-25m3/min

Bore diameter

105-165mm

Bore depth

Horizontal 50 down 30

Feed stroke

3000mm

Drill rod diameter

76mm

Guide compensation

1200mm

Lifting force

26000N

Guide pitch

Up and down 100degree

Guide swing

Left 90 right45

Boom pitch

Up and down 70degree

Boom swing

Left 45 right45

Climb ability

30 degree

Ground clearance

300mm

Walking speed

2.5km/h

Rotation speed

0-90r/min

Rotation torque

3000N.M

Motor power

56KW

Total weight

6300kg

dimension

5800*2070*2400

hydraulic rock drill CTQ-G150Y for salehydraulic rock drill CTQ-G150Y for salehydraulic rock drill CTQ-G150Y for sale
