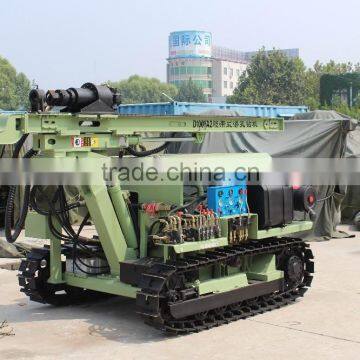

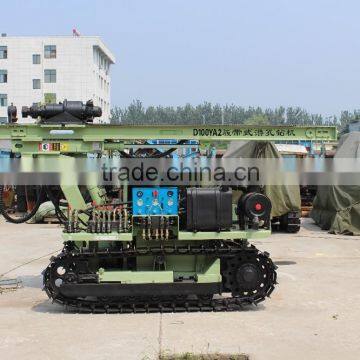

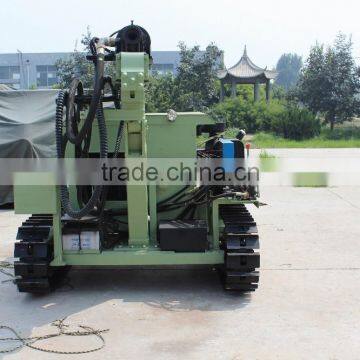

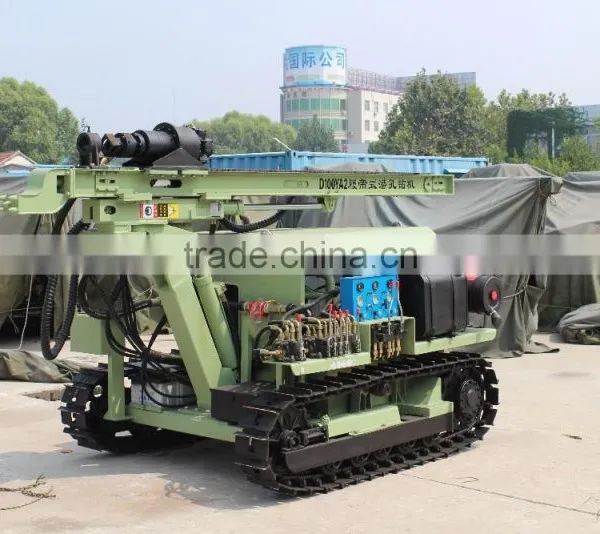

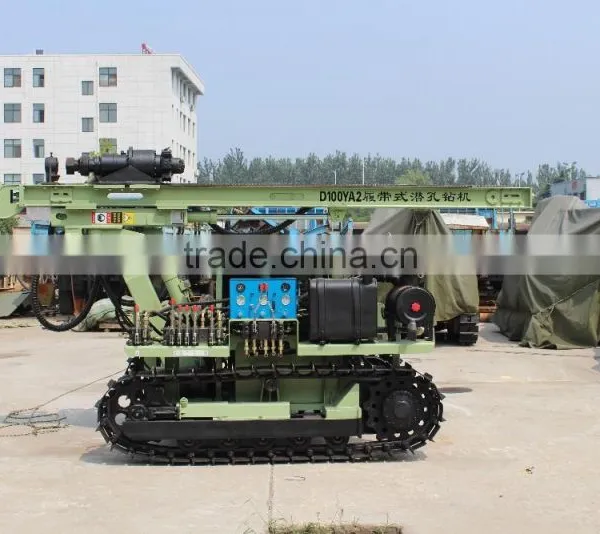

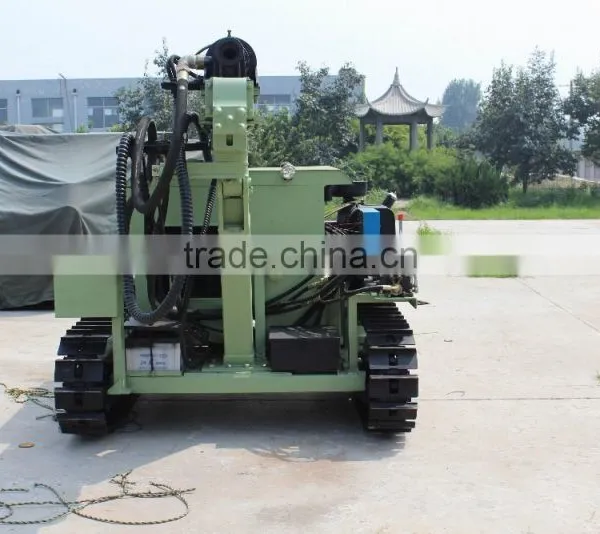

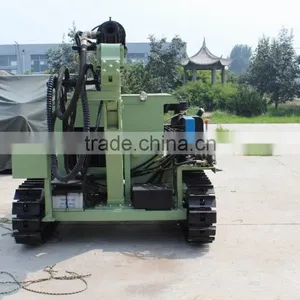

CTQ-D100YA2 Crawler Hydraulic Rotary Drilling Rig
- QingDao port
- T/T Money Gram
You May Like
-
CTQ-G150YF Crawler Hydraulic Blasting Hole Rotary Drilling Rig
-
CTQ-Z115Y Crawler Hydraulic Rotary Down-hole Drilling Rig
-
CTQ-Z138YA Crawler Rotary Blasting Hole Drilling Rig
-
CTQ-Z115Y Crawler Hydraulic Rotary Blasting Hole Drilling Rig
-
Blasthole Drilling Rig(CTQ-G150Y)
-
D100YA2-2 Engineering Drilling of China for Mine
Product Details
| Condition | New | Type | Rotary Drilling Rig | |
| Power Type | Diesel | Place of Origin | Shandong, China | |
| Brand Name | LongYe | Model Number | CTQ-D100YA2 | |
| Usage | Ore | Power(W) | 33000 | |
| Dimension(L*W*H) | 4300*2030*2160 mm | Weight | 2860kg | |
| Certification | CE | Warranty | one year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

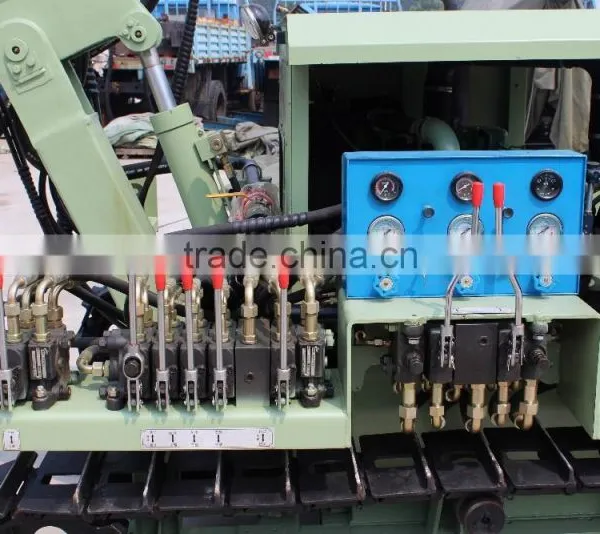

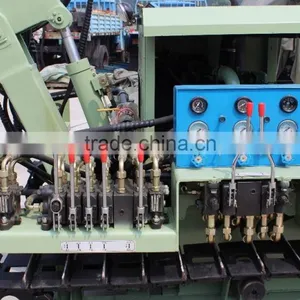

CTQ-D100YA2 crawler hydraulic rotary drilling rig adopt new hydraulic rotary motor , increase the rotation gearbox with high speed, torque, and low failure rate. Low air consumption of the rig, the shift hole becomes convenient,use air filter and oil filter, reduce engine wear, thereby increasing the life of the diesel engine. The rig structure is compact, the minimum radius of gyration is 2.8m, while advancing the skid compensation function.when drilling the skid support on the ground, and hole have good stability.

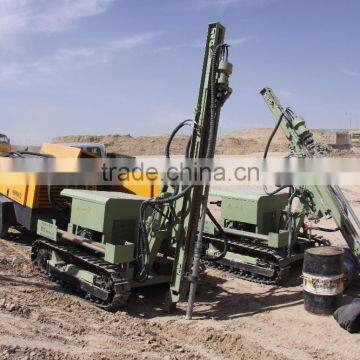

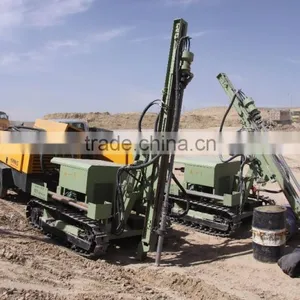

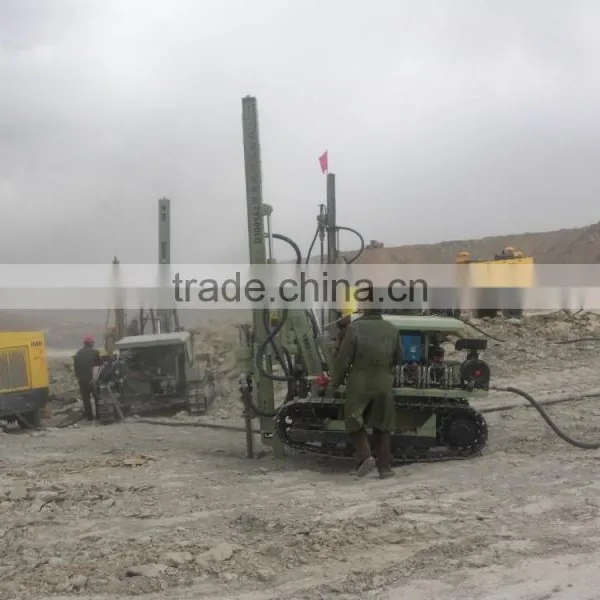

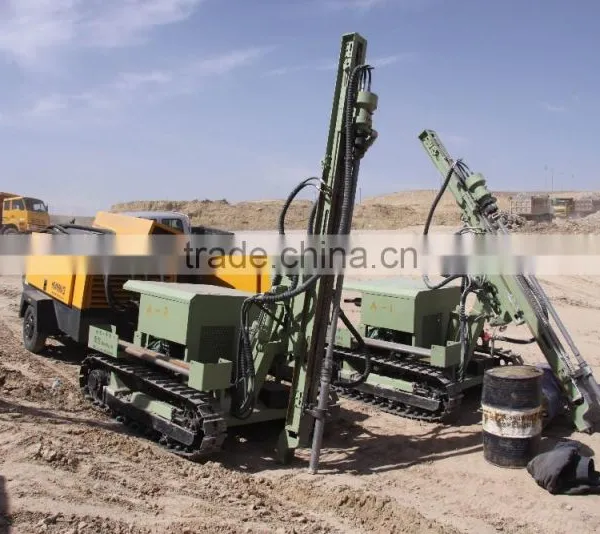

The drilling rig is mainly suitable for open mining, water conservancy, power plants, road building and other Rock drilling blasting holes.
Total Weight(T) | 2.8 |
Drilling diameter(mm) | 90--130 |
Dimension (L * W * H)(mm) | 4100*2030*2020 |
Drilling depth(m) | 30 |
Travelling speed(km/h) | 2 |
Once promotion distance(m) | 2 |
Climb ability(.) | 30 |
Working pressure(MPa) | 0.7-1.4 |
Chassis ground clearance(mm) | 250 |
Air consumption(m3/min) | 7-15 |
Skid pitch(.) | up and down 100 |
Host Power(kw) | 33kw |
Sliding tilt swing(.) | L35,R10 |
For rock | F=6-20 |
Skid compensation(mm) | 900 |
About ShanDong LongYe Machinary Co.,Ltd. is specialized in the production of hydraulic presure down-hole drilling rigs, engineering drills and water well drilling which are backbone enterprises.The company covers an area of 35,000square meters,more than 160 employees,20 engineering and technicians, all are engaged in specialized drilling rig mechanical design talents.
