3800mm Corrugated Paper Making Machinery

   3800mm corrugated paper making machinery

Technical Parameter:

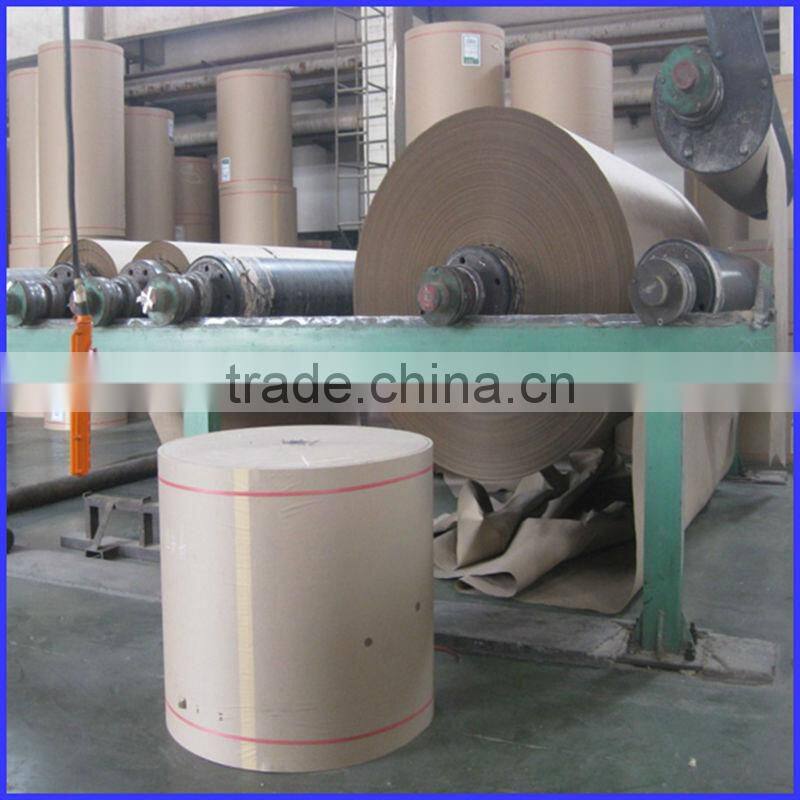

1. Output paper: kraft paper , test liner paper,kraft liner paper

2. Output weight: 100-250g/m2

3. Paper width: 3800mm

4. Rail gauge: 5100mm

5. Design speed: 300m/min

6. Working speed: 150-250m/min

7. Capacity: 160 T/D

8. The gauge: 5100mm

9. Pressure type: pneumatic pressure device

10. Driving type: use AC frequency conversion,and driving by step

11. Pulp formation type: pressure mould former

Pulping and paper recycling:

   waste paper → hydrapulper →  pulp pump → high density cleaner → reject separator→ pulp pump → chest agitator→ pulp pump → centrifugal mid cosistency pressure screen → pulp pump → impurity remover →inflow pressure screeen → kraft paper machine → calendar → winding machine → rewinding machine → marketing

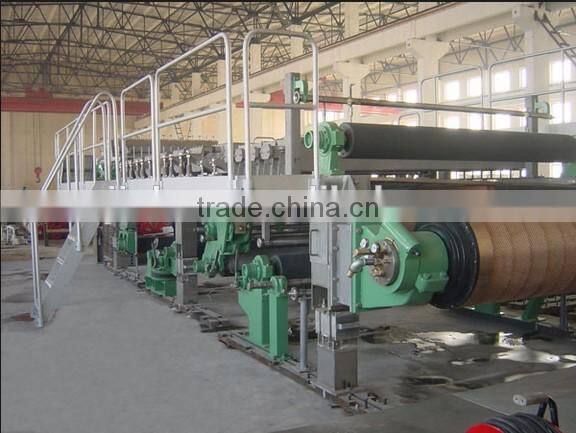

Machine Structure:

Features:

Controlling way: Adopt Siemens or Sanken inverter and high quality low voltage apparatus.

The main core hardware supporting

every branch transmission point goes with a AC Inverter, indicator lamp, air switch, terminal board and so on; these all sino-foreigh joint products.

Transmiss control cabinet

All adopt standard GGD control cabinet, including power supply cabinet, transmission cabinet.

Operational panel

Including main transmission operational panel.

Software and design information:

1. PLC applications software, speed chain, current control and telecom software.

2. Providing system schematic manual, external wiring diagram and cable list.

3. Providing technical specification of system unit, operation, running and configuration software.

Part of Our Factory:

Delivery:

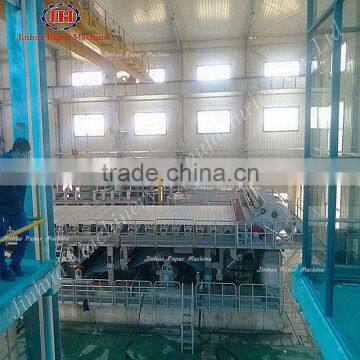

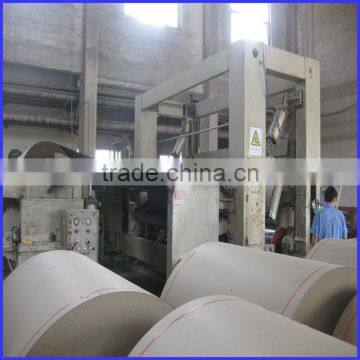

Paper machine workshop:
